EVAP Canister Purge Valve

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2002 Mercury Sable, 2002 Mercury Mountaineer, 2002 Mercury Grand Marquis, 2002 Mercury Cougar, and 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

EVAP canister purge valve is part of Enhanced EVAP system that is controlled by PCM. See Fig 1 and Fig 2 . This valve controls flow of vapors (purging) from EVAP canister to intake manifold during various engine operating modes. EVAP canister purge valve is a normally closed valve.

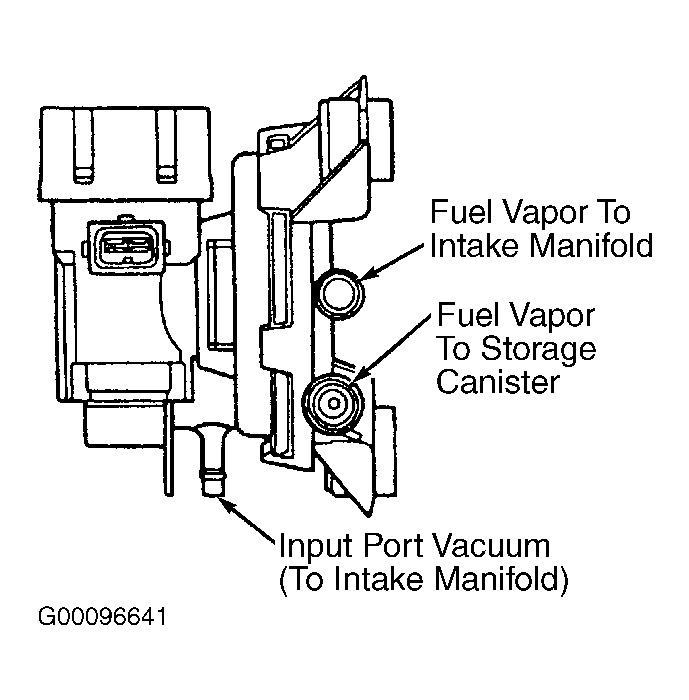

Fig 1: Identifying EVAP Canister Purge Valve (Escort, Focus, LS, Mustang, Sable, Taurus & Thunderbird)

Courtesy of FORD MOTOR CO.

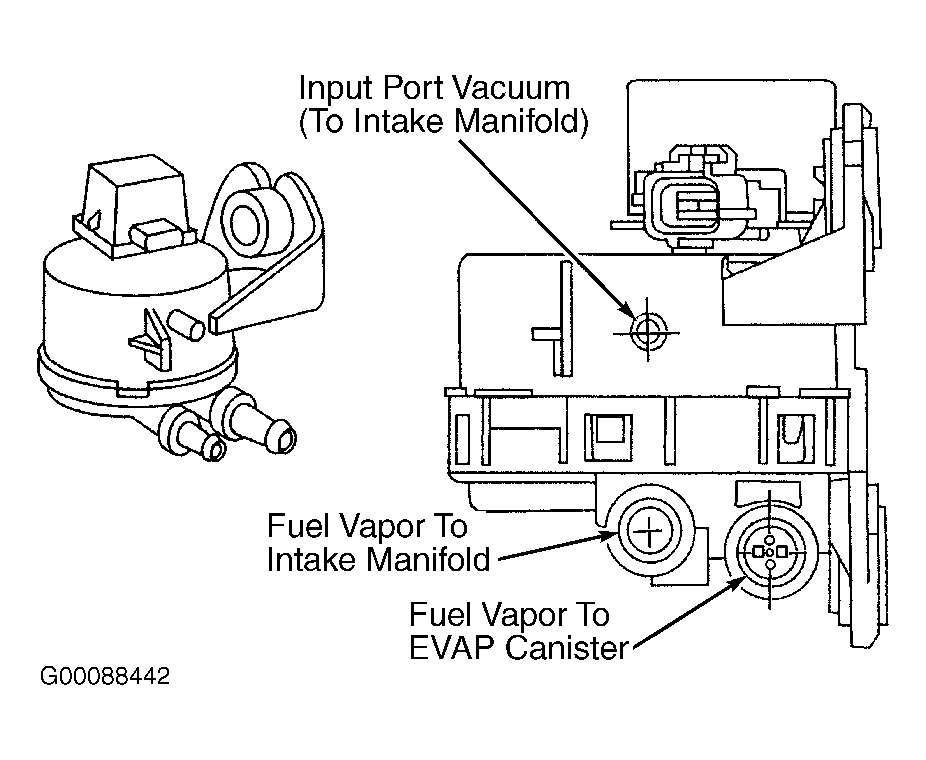

Fig 2: Identifying EVAP Canister Purge Valve (All Others)

Courtesy of FORD MOTOR CO.
