3-Way Catalyst Conversion Efficiency
WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2002 Mercury Sable, 2002 Mercury Mountaineer, 2002 Mercury Grand Marquis, 2002 Mercury Cougar, and 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

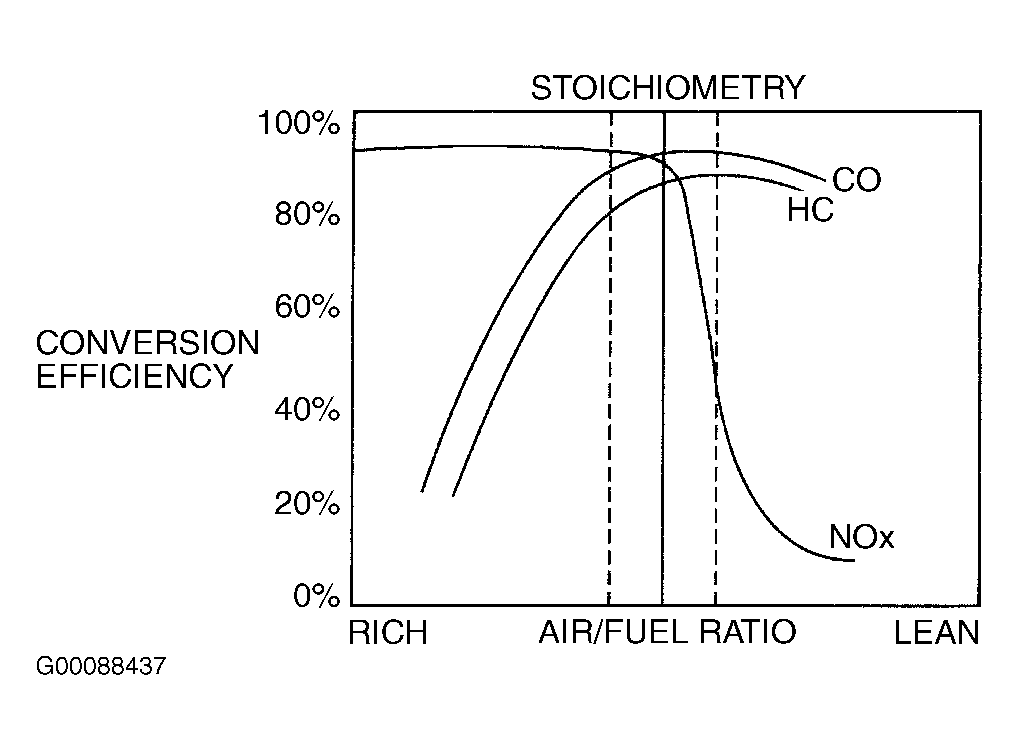

A TWC requires a stoichiometric fuel ratio, 14.7 pounds of air to one pound of fuel (14.7:1), for high conversion efficiency. In order to achieve these high efficiencies, air/fuel ratio must be tightly controlled with a narrow window of stoichiometry. Deviations outside of this window will greatly decrease conversion efficiency. See Fig 1. For example, a RICH mixture will decrease HC and CO conversion efficiency, while a LEAN mixture will decrease NOx conversion efficiency.
