Fuel Tank - E550: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    ALL VEHICLES

    NOTE: Do not tighten the mounting nuts at this time.

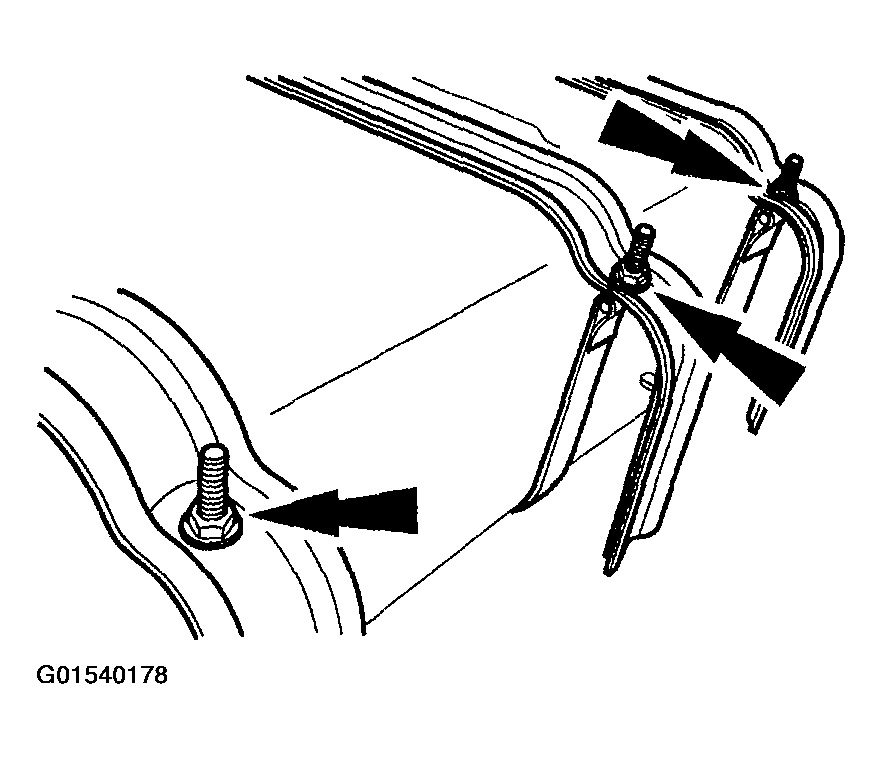

    Fig 1: Installing Fuel Tank Straps And Retaining Nuts
    G01540178Courtesy of FORD MOTOR CO.
  1. Install the fuel tank straps and retaining nuts.
    2. NOTE: It may be necessary to adjust the strap position.

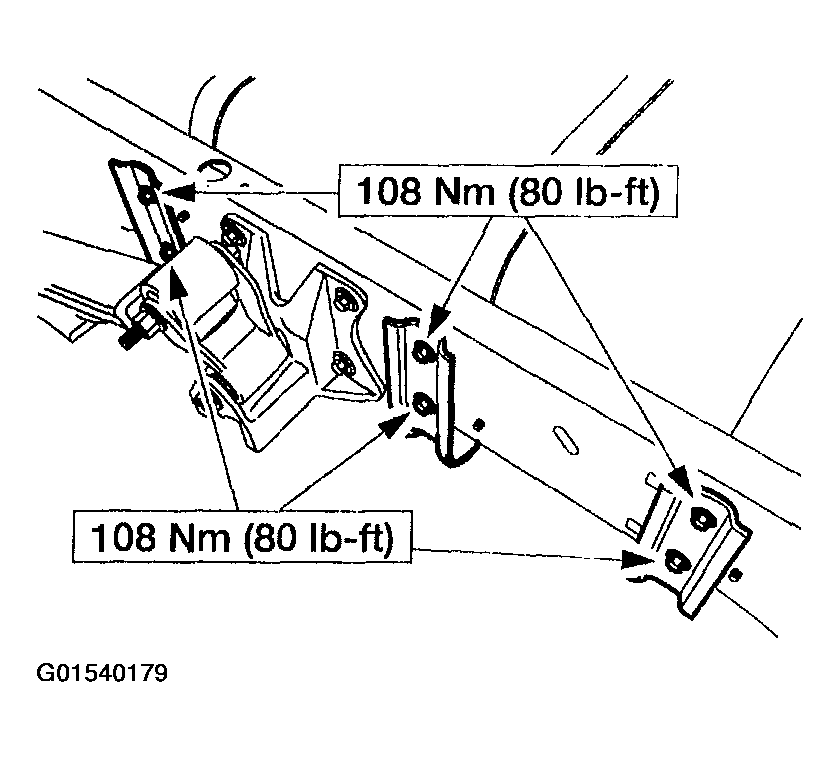

    Fig 2: Installing Fuel Tank
    G01540179Courtesy of FORD MOTOR CO.
  2. Install the fuel tank and the bolts.
  3. Tighten the fuel tank strap nuts.

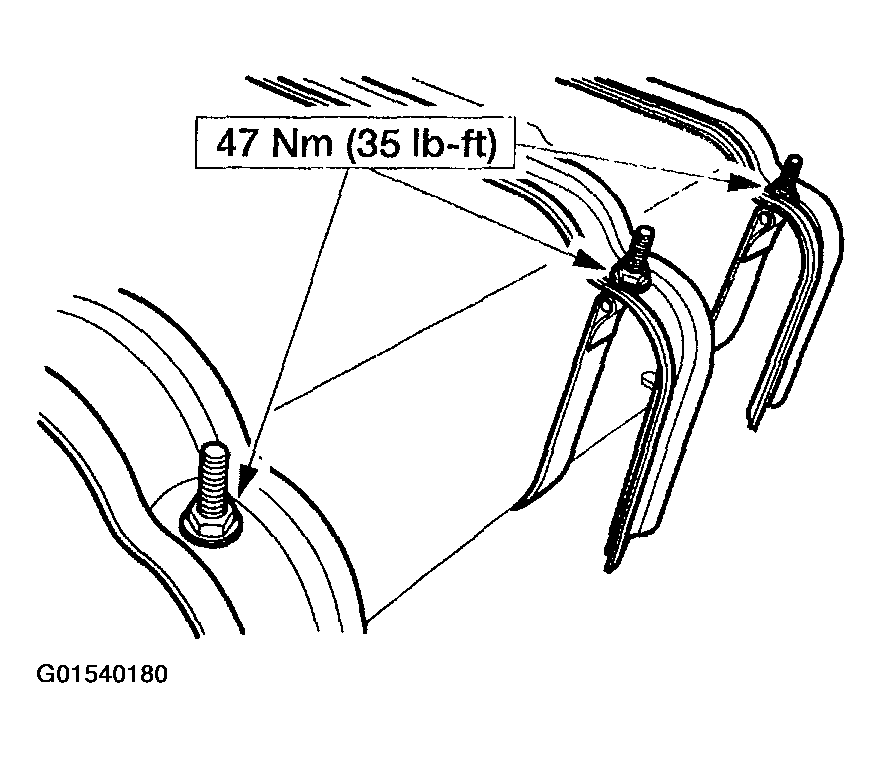

    Fig 3: Tightening Fuel Tank Strap Nuts
    G01540180Courtesy of FORD MOTOR CO.
  4. Remove the jack from the fuel tank.
  5. Connect the fuel hoses.

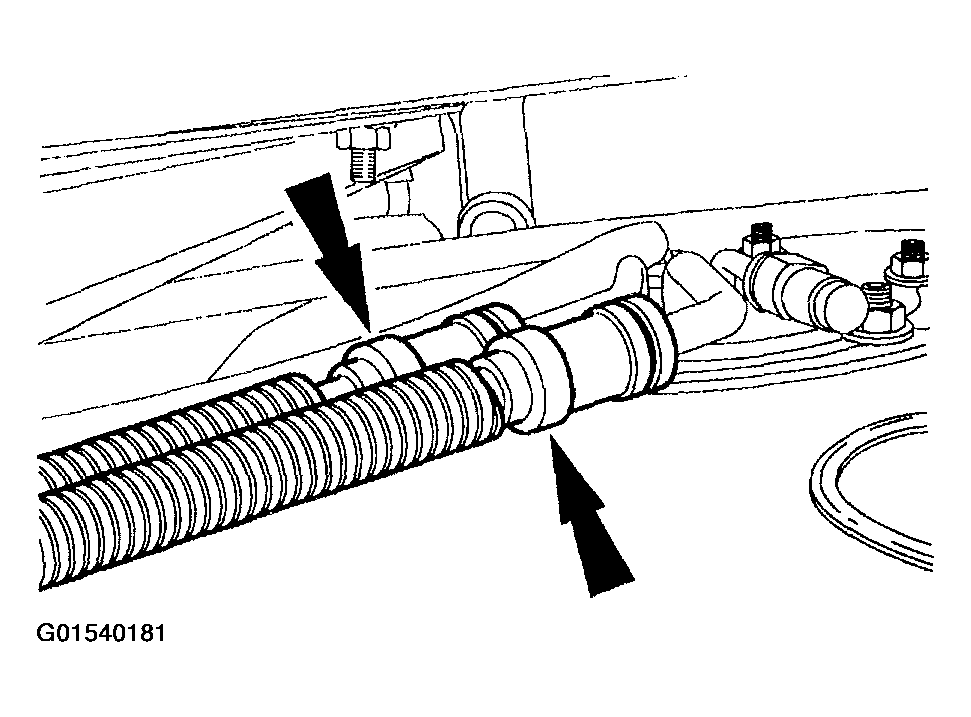

    Fig 4: Connecting Fuel Hoses
    G01540181Courtesy of FORD MOTOR CO.
  6. Connect the fuel tank electrical connector.
    Fig 5: Connecting Fuel Tank Electrical Connector
    G01540182Courtesy of FORD MOTOR CO.

    7. GAS ENGINES

  7. Connect the fuel tank pressure sensor electrical connector.

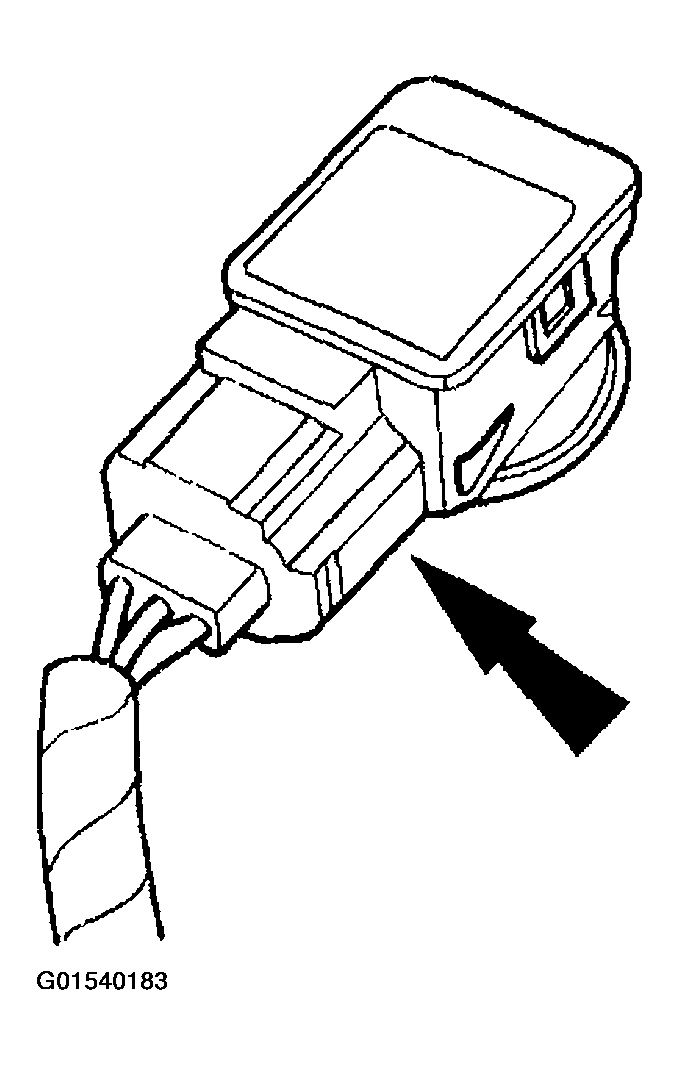

    Fig 6: Connecting Fuel Tank Pressure Sensor Electrical Connector
    G01540183Courtesy of FORD MOTOR CO.
  8. Connect the evaporative emission hose.
    Fig 7: Connecting Evaporative Emission Hose
    G01540184Courtesy of FORD MOTOR CO.

    9. ALL VEHICLES

  9. Connect the fuel filler pipe and filler vent tube

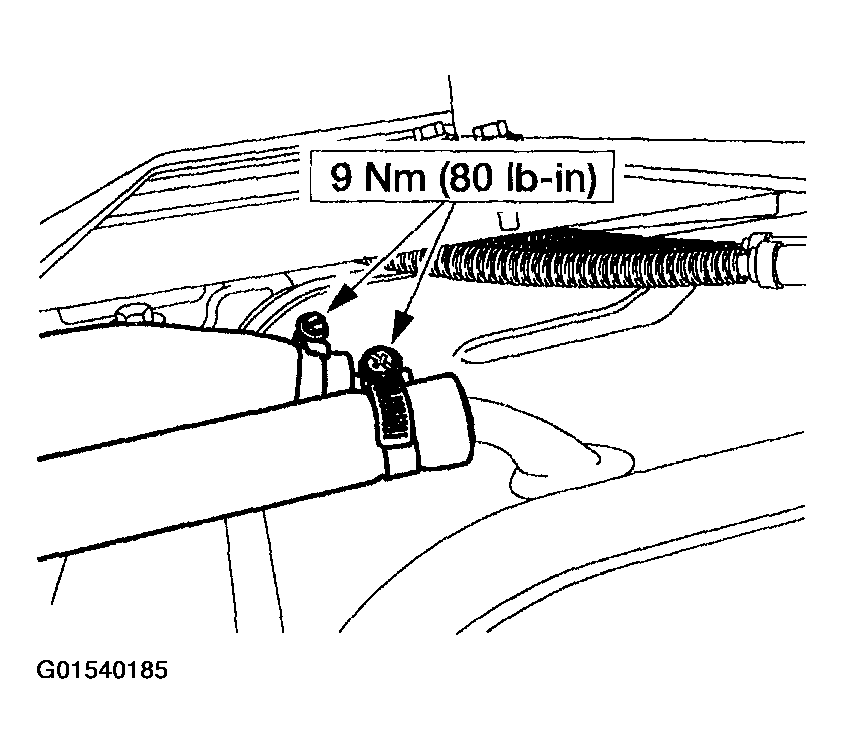

    Fig 8: Connecting Fuel Filler Pipe
    G01540185Courtesy of FORD MOTOR CO.
  10. Fill the fuel tank.
  11. Connect the battery ground cable. For additional information refer to BATTERY, MOUNTING AND CABLES .
