Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: On vehicles equipped with an auxiliary battery, both the negative and positive battery cables must be disconnected.

WARNING: On vehicles equipped with a 7.3L engine, both the primary and secondary batteries must be disconnected.

Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the instrument panel steering column cover (04459), the driver side knee brace and the instrument panel steering column opening cover reinforcement (04502).

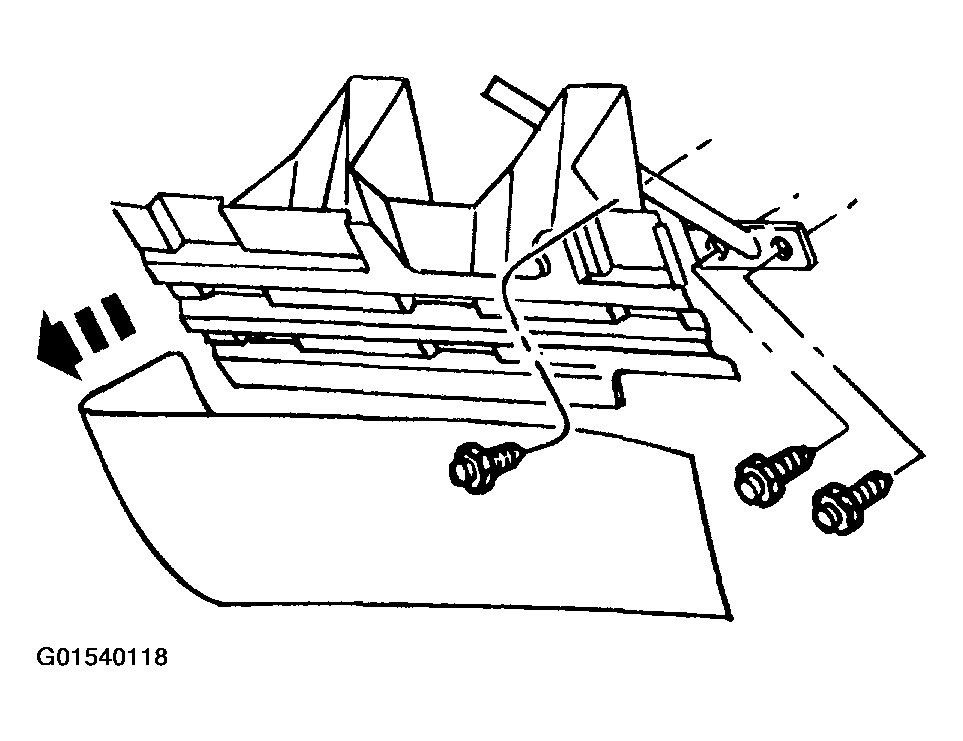

Fig 1: Removing Instrument Panel Steering Column Cover & Reinforcement
Courtesy of FORD MOTOR CO.
Disconnect all necessary harness connectors and separate the harness bracket from the steering column.

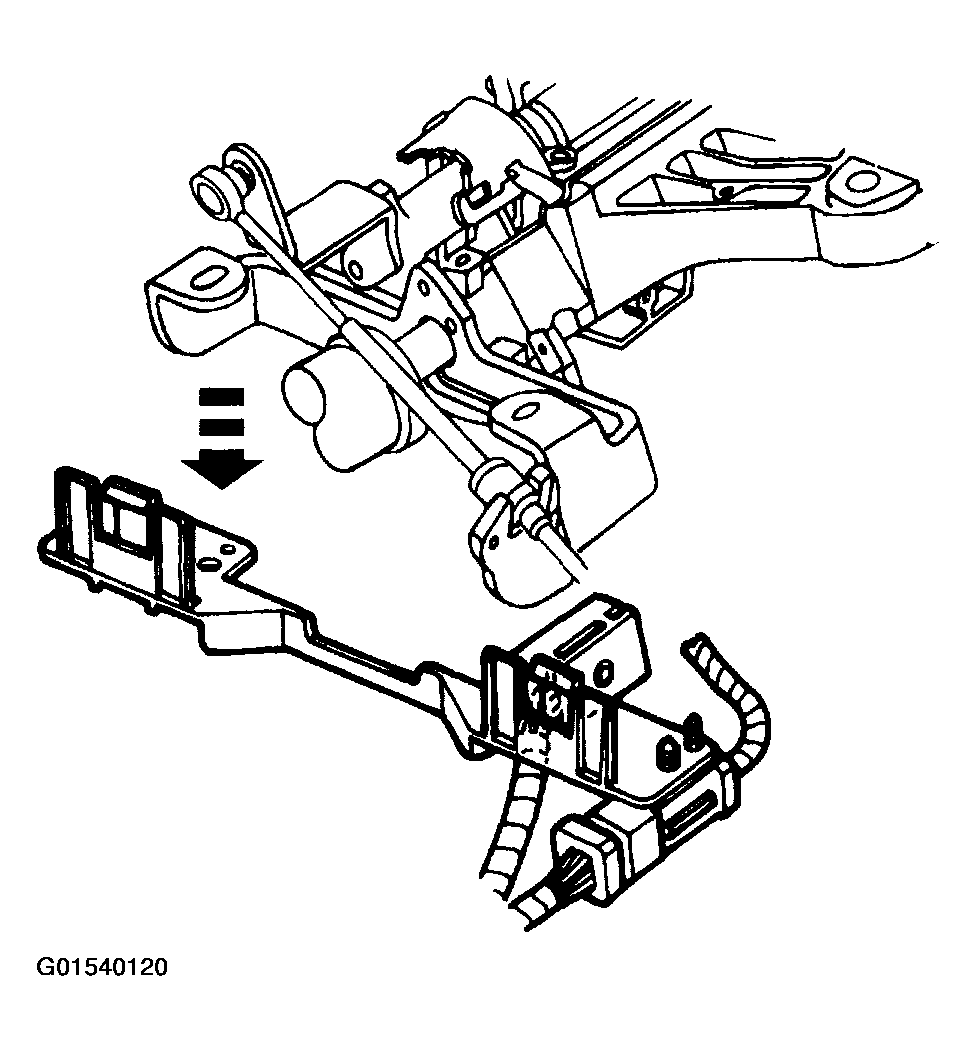

Fig 2: Separating Harness Bracket From Steering Column
Courtesy of FORD MOTOR CO.
Remove the shift indicator cable and position it aside.

Fig 3: Removing Shift Indicator Cable And Position
Courtesy of FORD MOTOR CO.
Remove the nuts and lower the steering column.

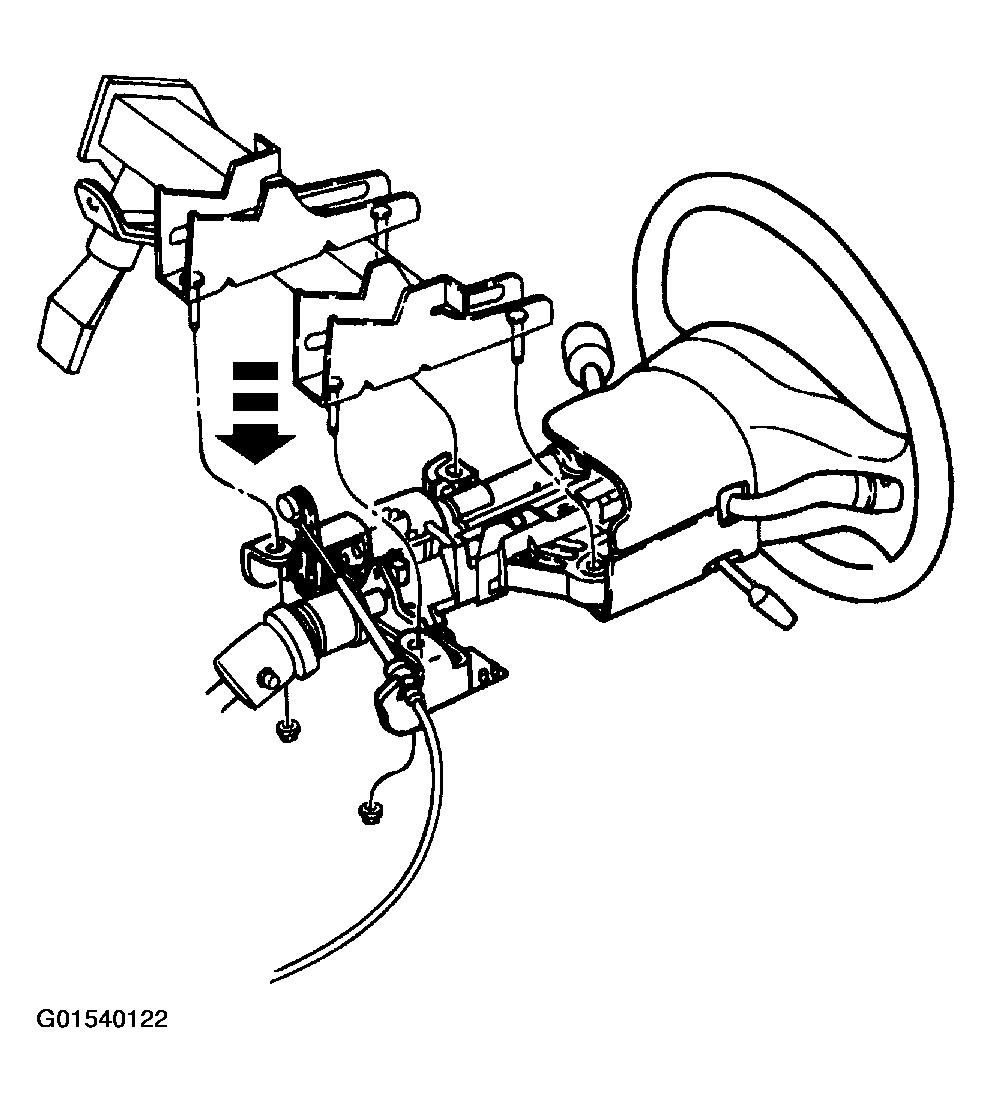

Fig 4: Removing Nuts And Lower Steering Column
Courtesy of FORD MOTOR CO.
Remove the shift lock actuator and disconnect the harness connector.

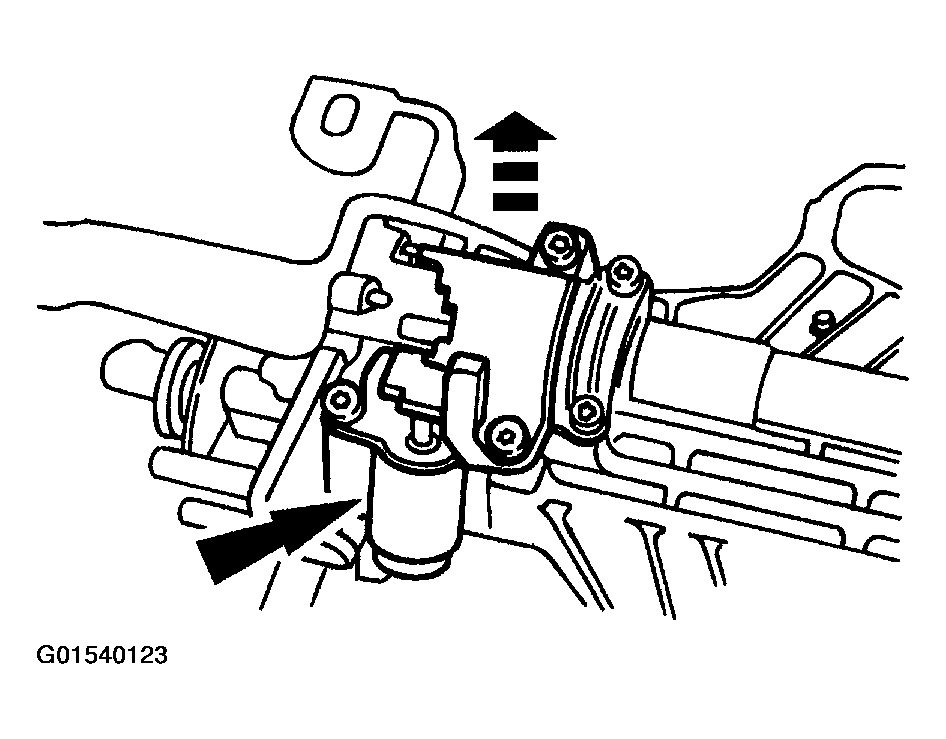

Fig 5: Removing Shift Lock Actuator And Disconnecting Harness Connector
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

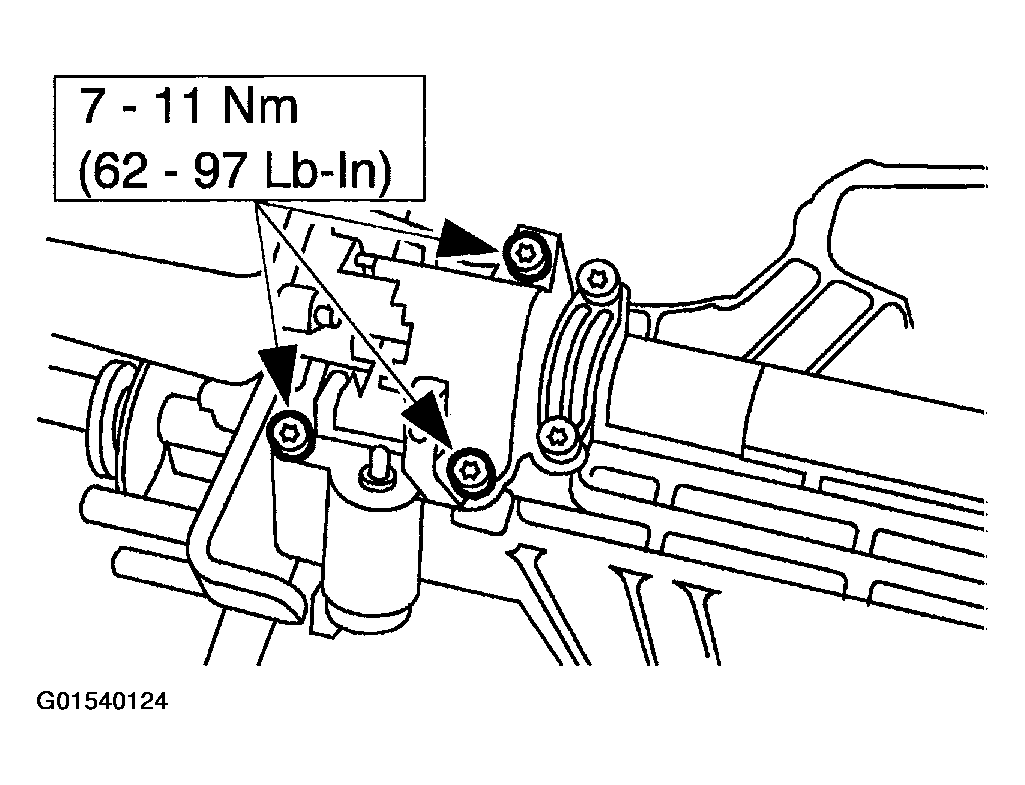

Fig 6: Installing Shift Lock Actuator
Courtesy of FORD MOTOR CO.

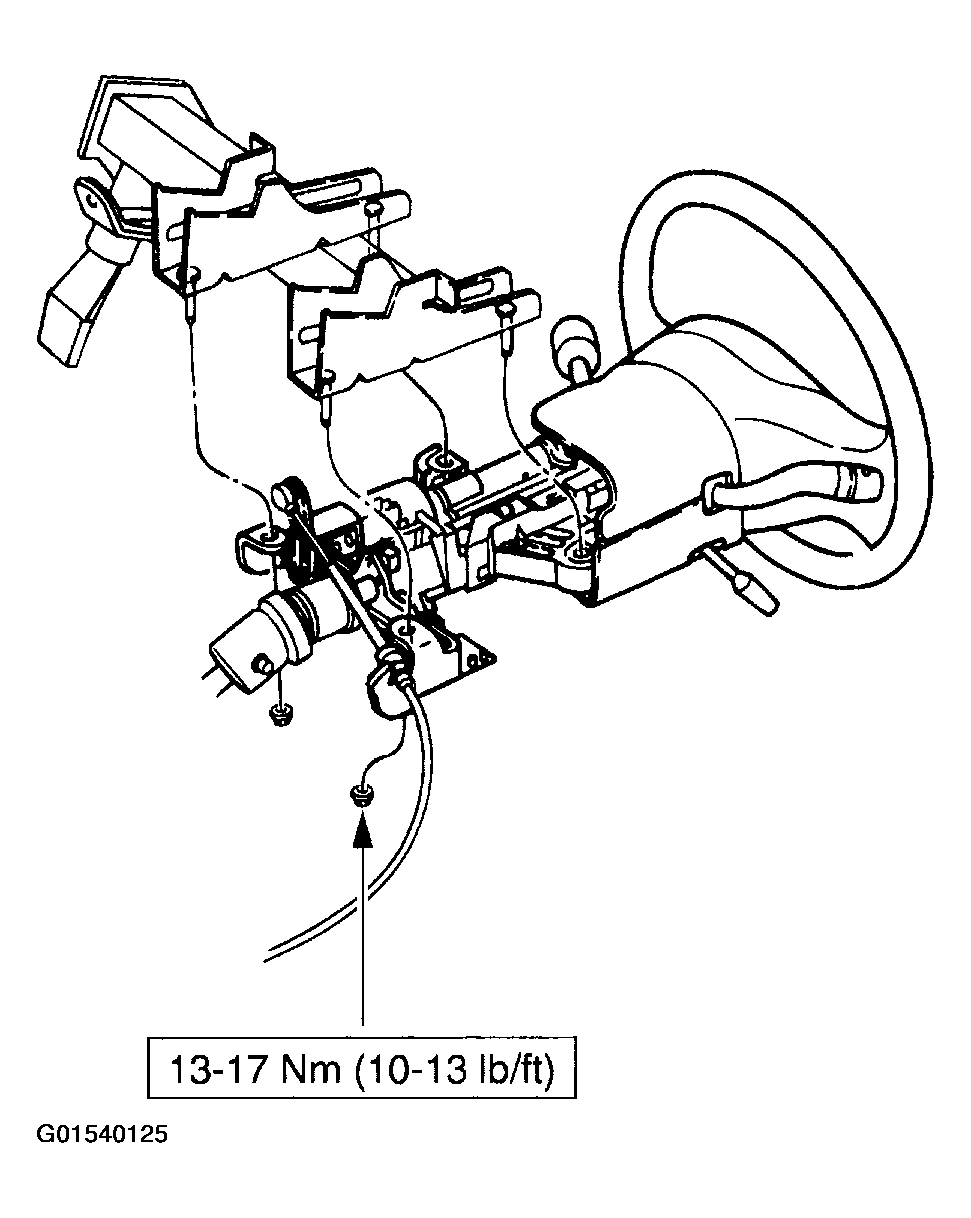

Fig 7: Installing Steering Column
Courtesy of FORD MOTOR CO.

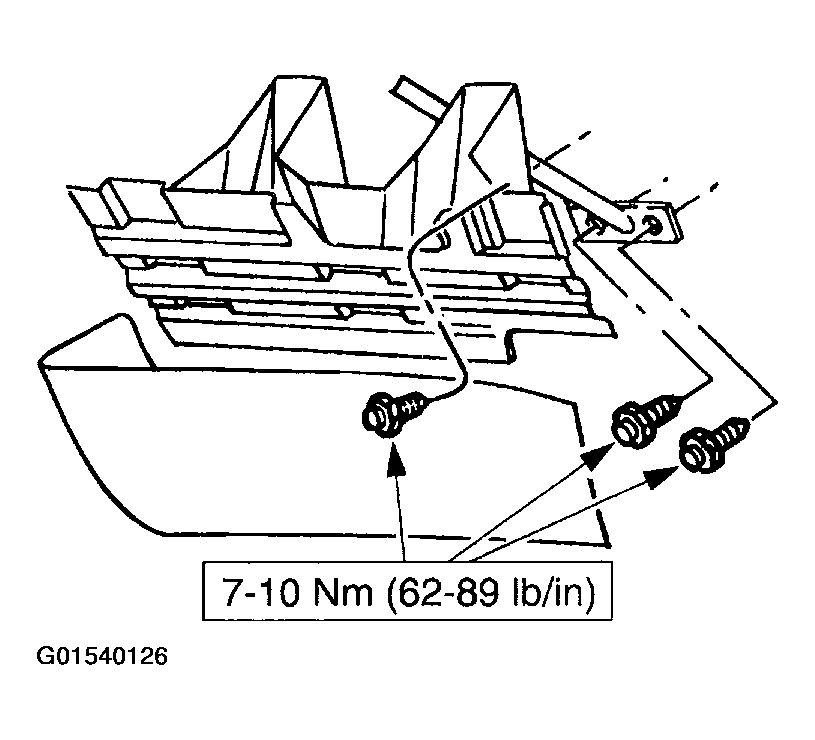

Fig 8: Installing Instrument Panel Steering Column Reinforcement & Cover
Courtesy of FORD MOTOR CO.
Make sure the shift cable and the shift indicator cable are correctly adjusted. For additional information refer to GENERAL PROCEDURES . Verify shift lock actuator operation.
