Home >> Ford >> 2000 >> Contour SE, 2.5 L, Standard >> Repair and Diagnosis >> External Pages >> Different car >> Section 325 (Automatic Transmission - 4R70W) >> Specifications >> Selective Thrust Washer - No. 1

Selective Thrust Washer - No. 1

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

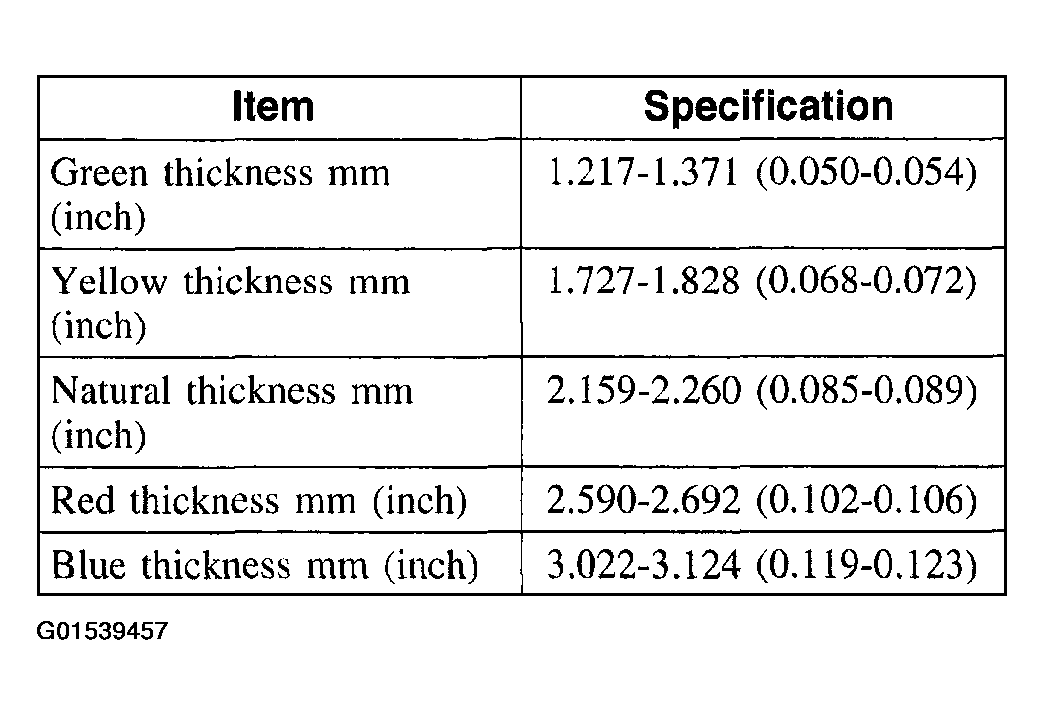

Fig 1: Selective Thrust Washer - No 1 Specification
G01539457Courtesy of FORD MOTOR CO.
