Transmission Insulator and Retainer: Installation

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the retainer and the one bolt hand-tight.

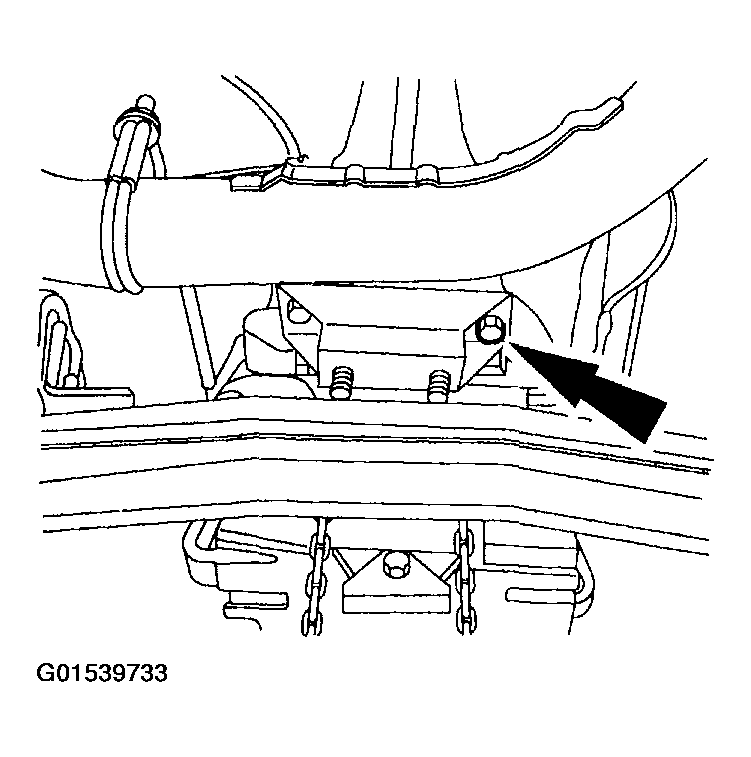

    Fig 1: Installing Retainer And One Bolt Hand-Tight
    G01539733Courtesy of FORD MOTOR CO.
  2. Lower the transmission while aligning the retainer studs with the holes in the crossmember. Allow the full weight of the transmission to rest on the crossmember.

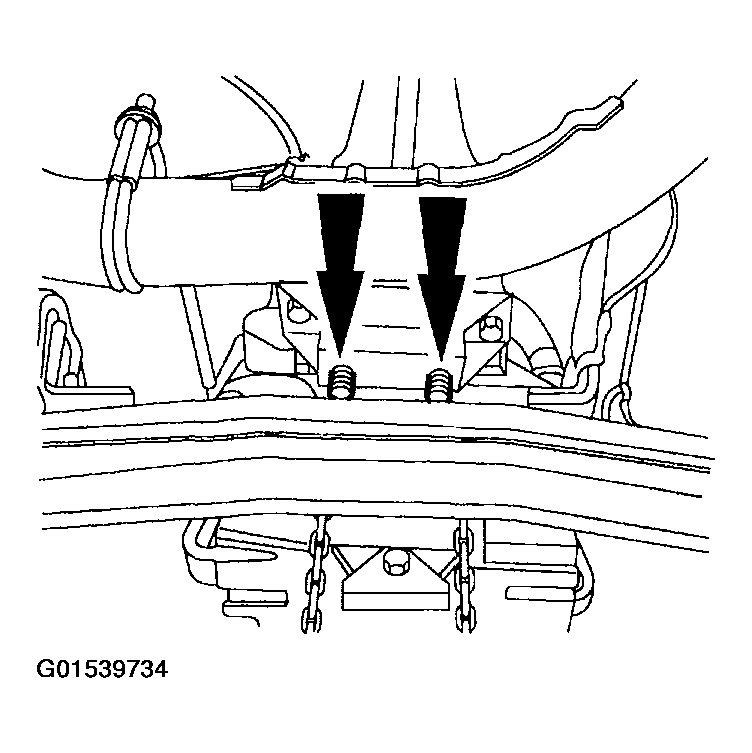

    Fig 2: Aligning Retainer Studs With Holes
    G01539734Courtesy of FORD MOTOR CO.
  3. Remove the high lift transmission jack.
  4. Install the hanger and install the bolt. Tighten the retainer-to-extension housing bolts.

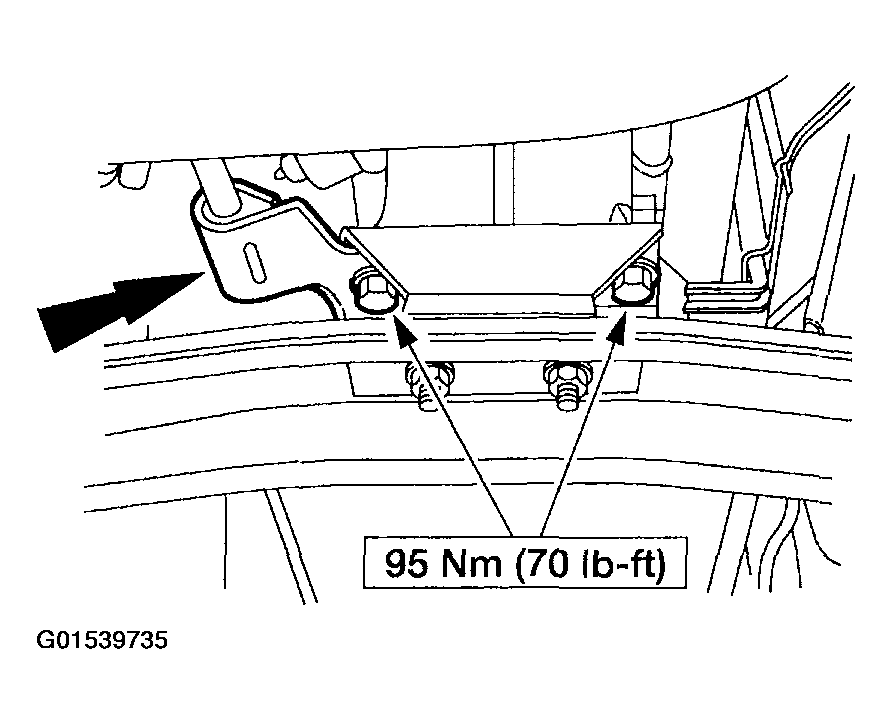

    Fig 3: Installing Bolt
    G01539735Courtesy of FORD MOTOR CO.
  5. Install the nuts.

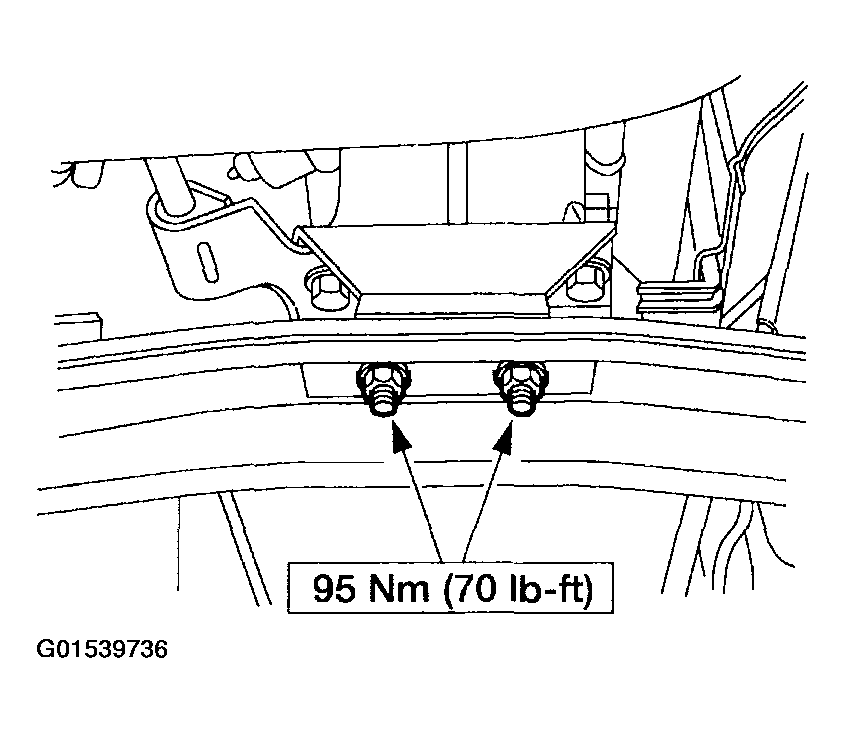

    Fig 4: Installing Nuts
    G01539736Courtesy of FORD MOTOR CO.
  6. Remove the supports and lower the vehicle.
