Digital Transmission Range (TR) Sensor: Installation

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

Install the digital TR sensor and loosely install the bolts.

Fig 1: Installing Digital TR Sensor And Loosely Install The Bolts
Courtesy of FORD MOTOR CO.

NOTE: Manual shift lever must be in the neutral position.

Fig 2: Aligning Digital TR Sensor Slots

Courtesy of FORD MOTOR CO.

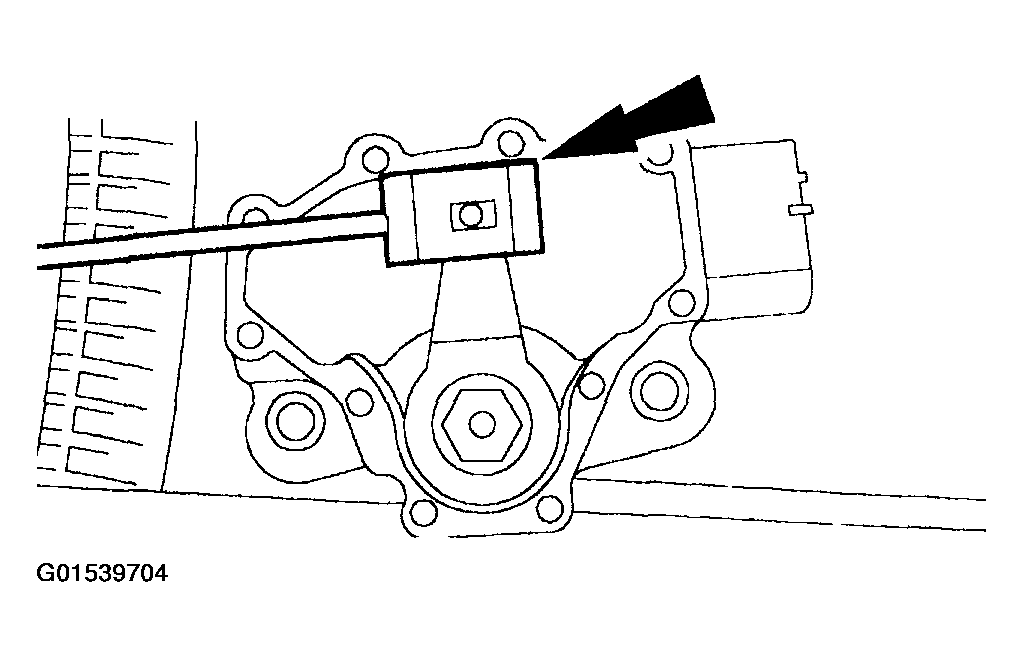

Using the special tool, align the digital TR sensor slots. The tool is designed to fit snug.
Tighten the bolts.

Fig 3: Tightening Bolts
Courtesy of FORD MOTOR CO.
Install the manual control lever.
1. Position the manual control lever.

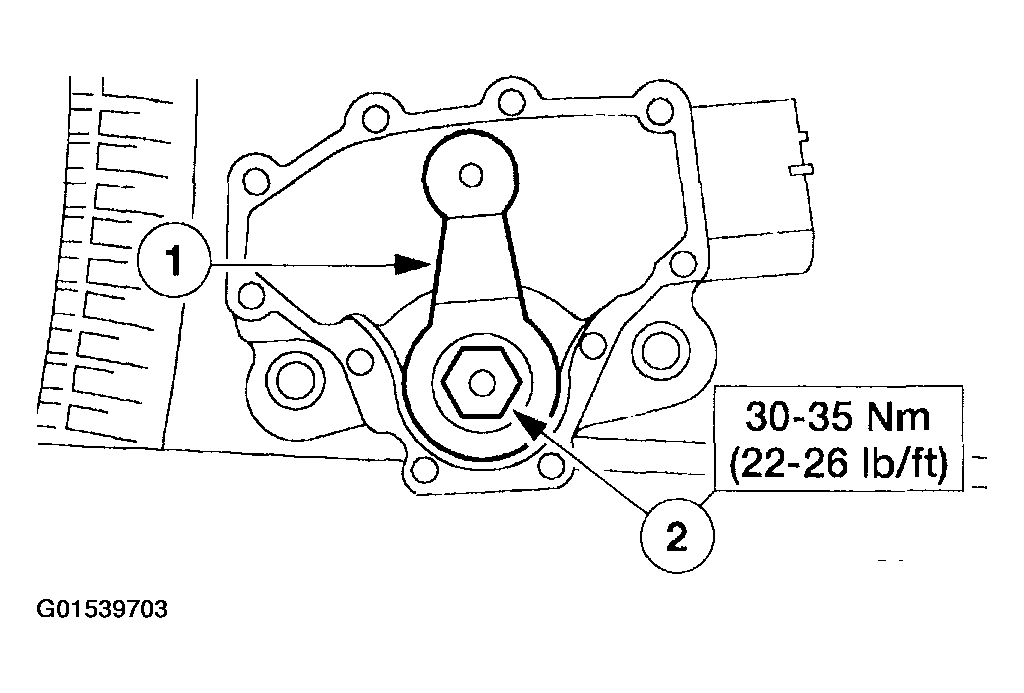

2. Install a new manual lever shaft outer nut.

  Fig 4: Installing Manual Lever Shaft Outer Nut
  Courtesy of FORD MOTOR CO.
With the manual lever in overdrive connect the shift lever control cable.

Fig 5: Connecting Shift Lever Control Cable
Courtesy of FORD MOTOR CO.
Install the digital TR sensor electrical connector.

Fig 6: Installing Digital TR Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Lower the vehicle.

NOTE: When the battery is disconnect and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.

Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
