2-3 Accumulator: Removal

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the main control valve body. For additional information, refer to MAIN CONTROL VALVE BODY .
  2. Remove the 2-3 accumulator piston retainer.

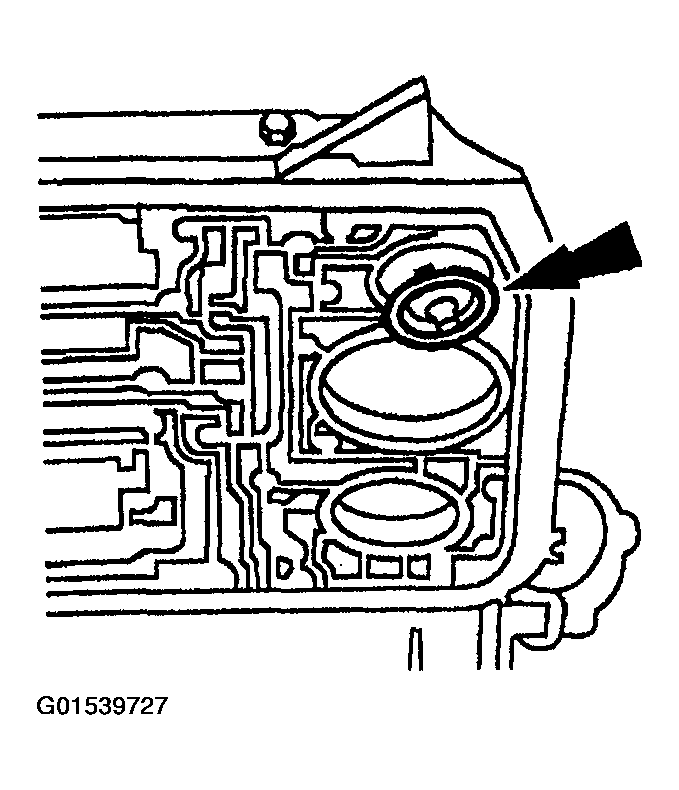

    Fig 1: Removing 2-3 Accumulator Piston Retainer
    G01539727Courtesy of FORD MOTOR CO.
  3. Remove the accumulator piston and spring.
    Fig 2: Removing Accumulator Piston And Spring
    G01539728Courtesy of FORD MOTOR CO.
