1-2 Accumulator: Removal

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Compress the 1-2 accumulator cover and remove the accumulator piston retaining ring.
    Fig 1: Removing Accumulator Piston Retaining Ring
    G01539723Courtesy of FORD MOTOR CO.
    2. NOTE: Note the location of the 1-2 accumulator springs for reference during assembly.
  2. Remove the 1-2 accumulator.
    1. Remove the 1-2 accumulator cover.
    2. Remove the inner and outer 1-2 accumulator springs.
    3. Remove the accumulator piston.
    4. Remove the upper 1-2 accumulator spring.

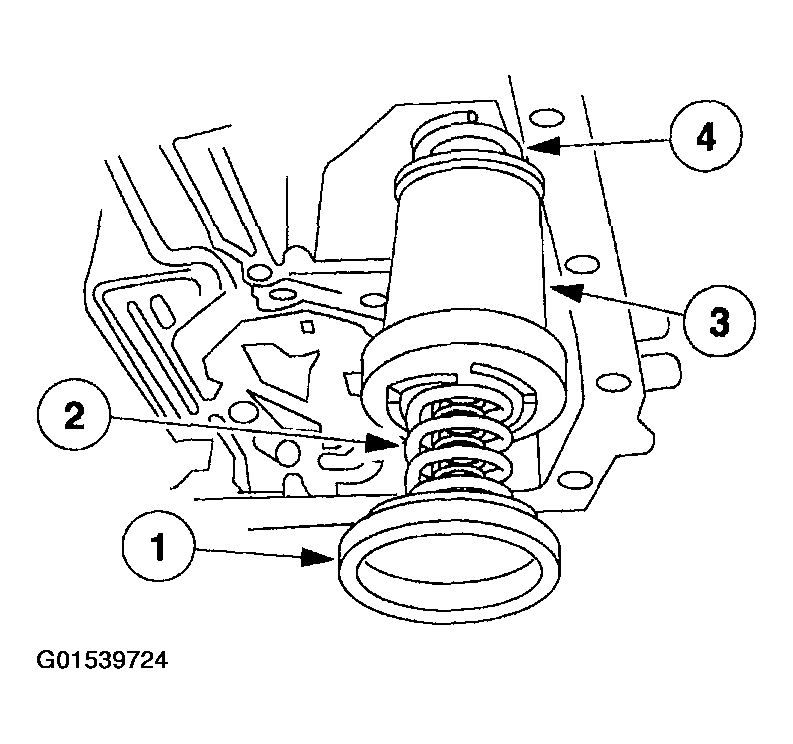

      Fig 2: Removing Inner And Outer 1-2 Accumulator Springs
      G01539724Courtesy of FORD MOTOR CO.
