Reverse Sun Gear: Disassembly

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

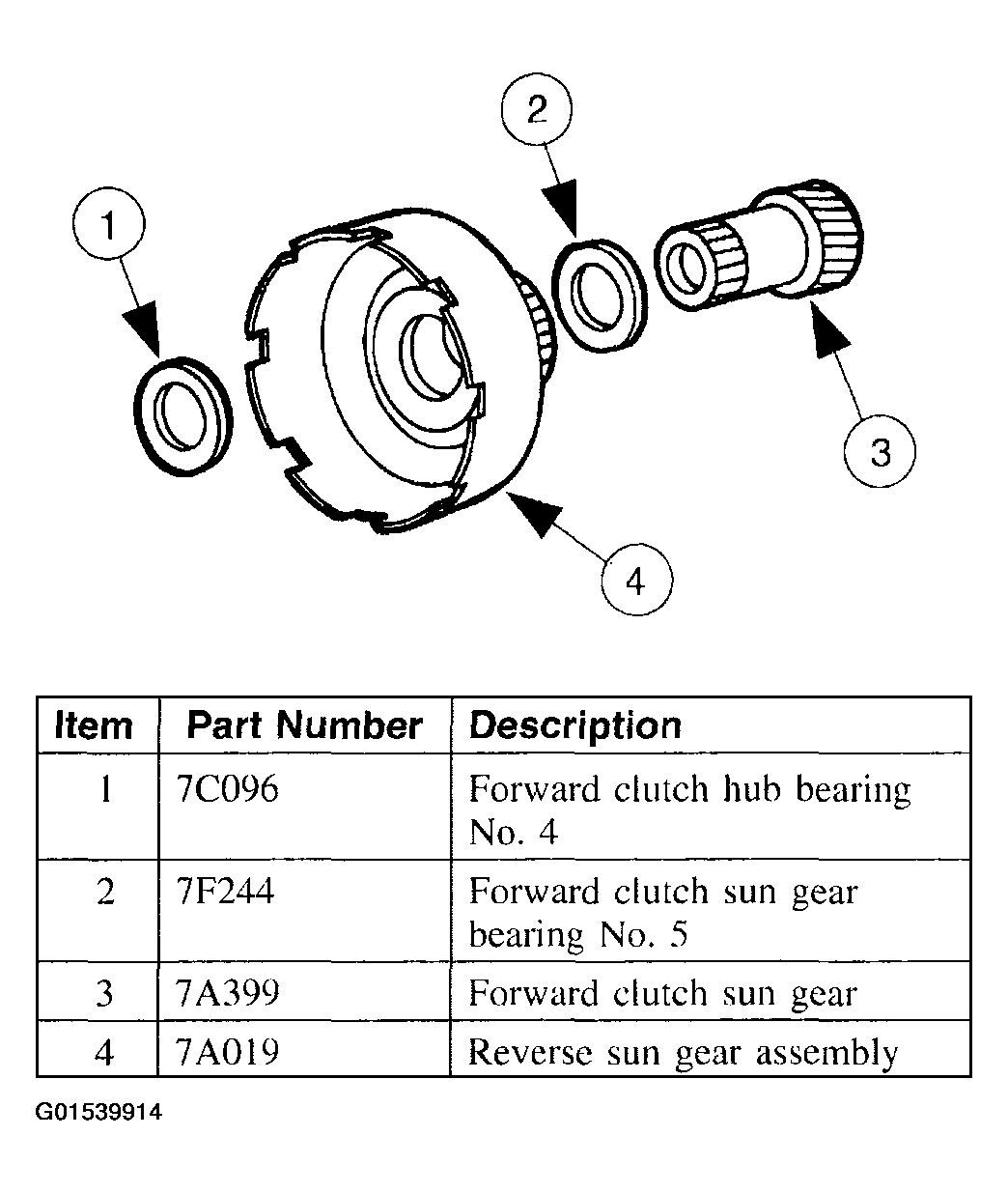

Fig 1: Disassembling Reverse Sun Gear
G01539914Courtesy of FORD MOTOR CO.
  1. Remove the reverse clutch sun gear assembly and the No. 4 forward clutch hub bearing and race.

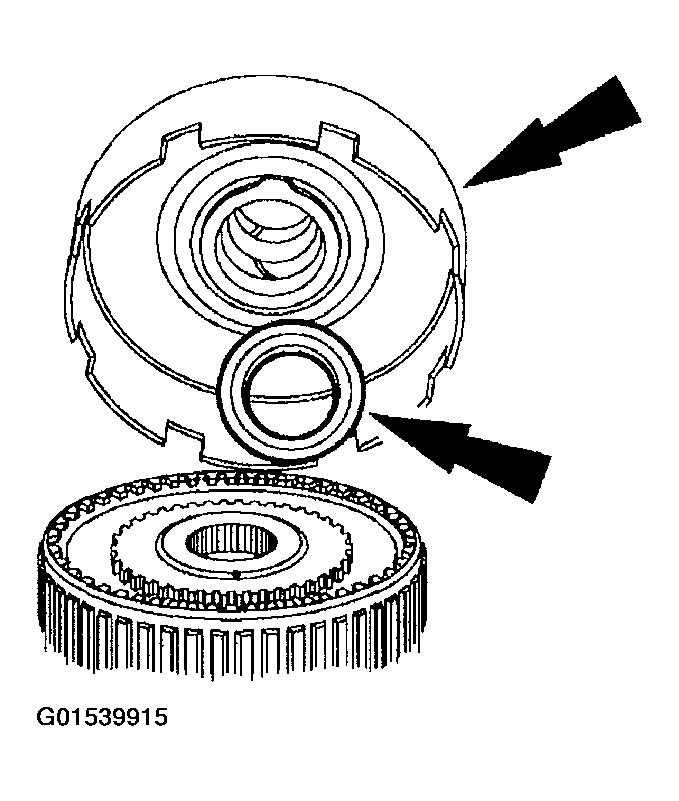

    Fig 2: Removing Reverse Clutch Sun Gear Assembly
    G01539915Courtesy of FORD MOTOR CO.
  2. Remove the forward clutch sun gear assembly and the No. 5 forward clutch sun gear bearing and race.
    Fig 3: Removing Forward Clutch Sun Gear Assembly
    G01539916Courtesy of FORD MOTOR CO.
