Section 325 (Automatic Transmission - 4R70W)
>>
Disassembly And Assembly Of Subassemblies
>>
Main Control Valve Body
>>
Main Control Valve Body - Disassembled View
Main Control Valve Body - Disassembled View
WARNING:
This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

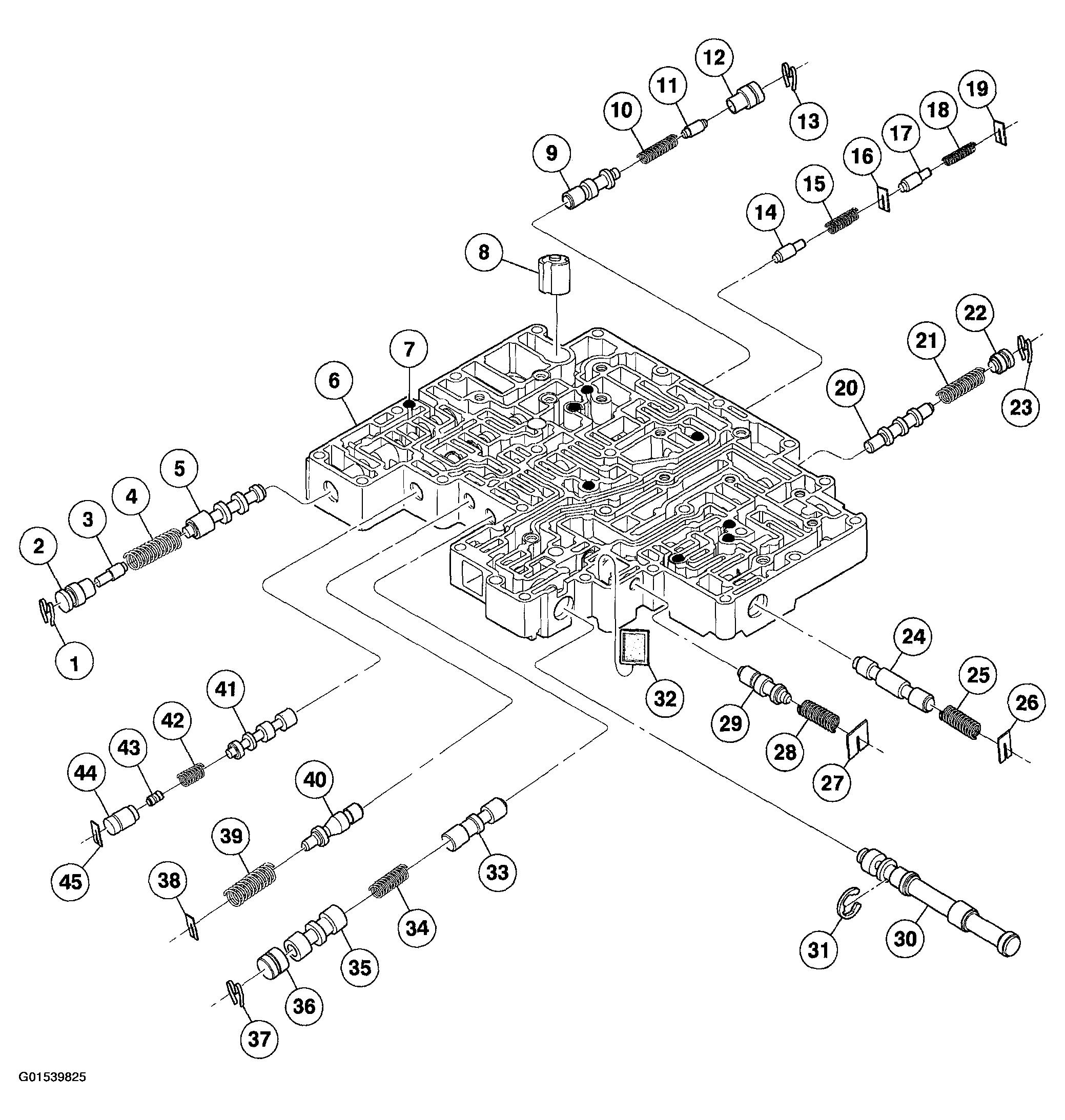

Fig 1: Main Control Valve Body - Disassembled View
Courtesy of FORD MOTOR CO.

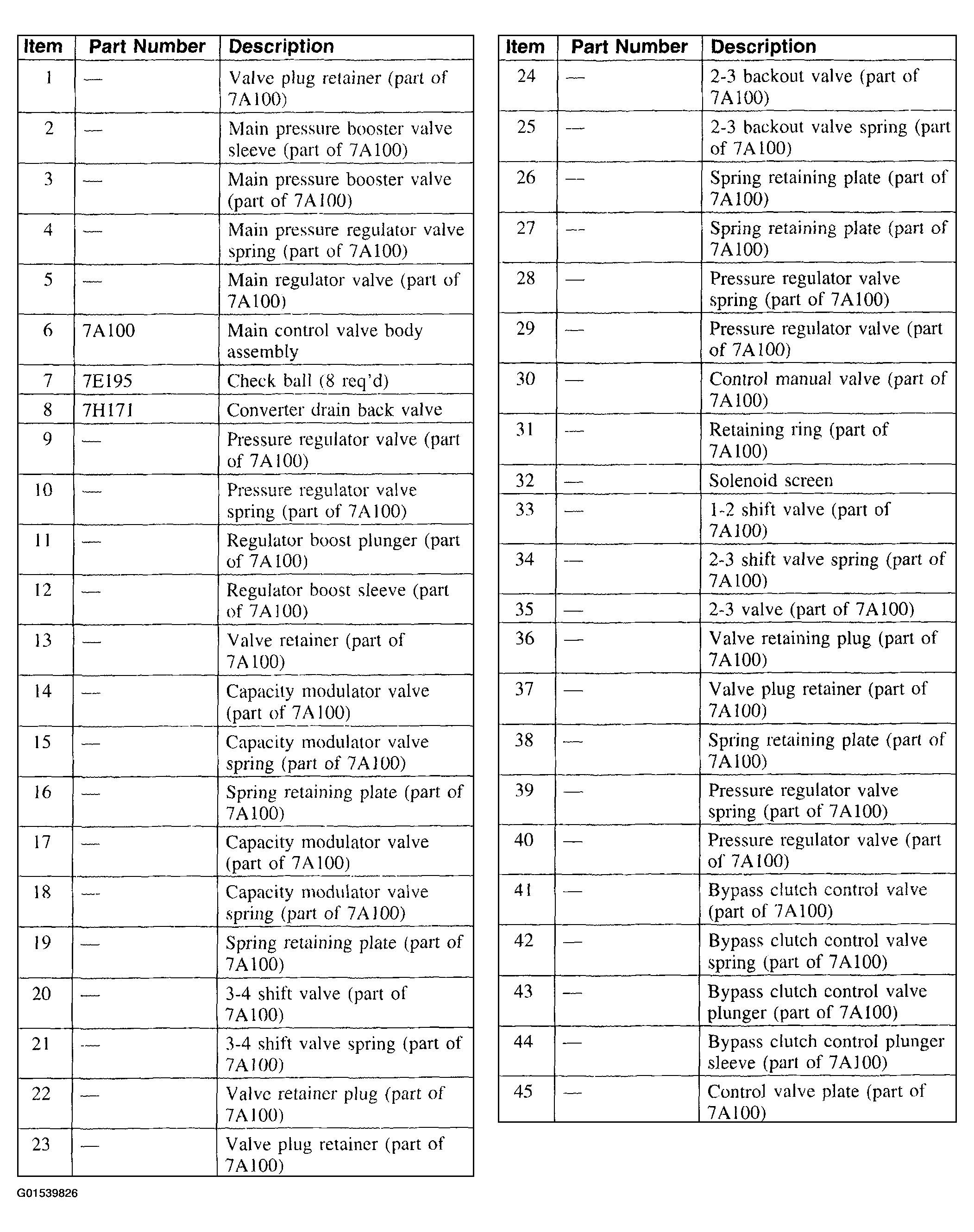

Fig 2: Main Control Valve Body (Items 1-45)
Courtesy of FORD MOTOR CO.
