Main Control Valve Body: Disassembly

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

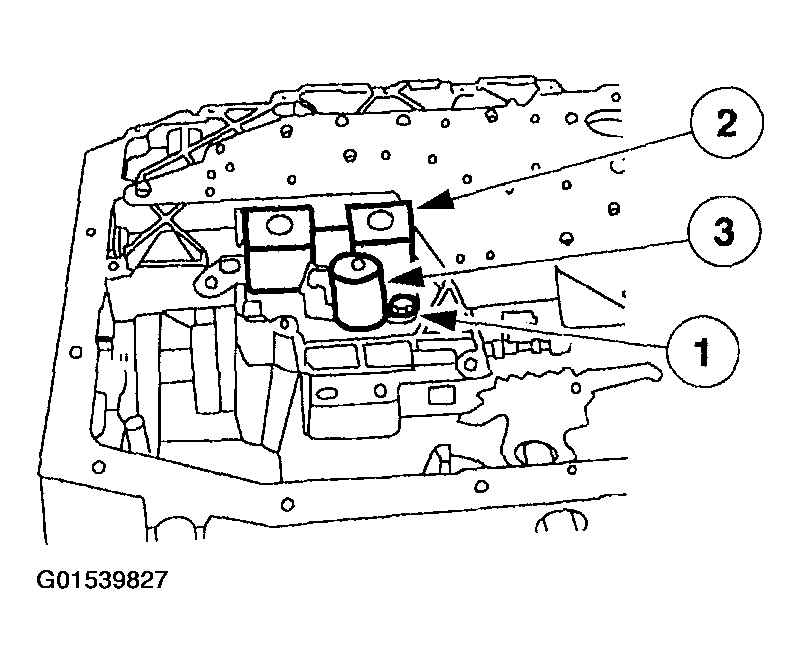

Remove the torque converter clutch (TCC) solenoid and the shift solenoid.
1. Remove the bolt.
2. Remove the shift solenoid.
3. Remove the TCC solenoid.

  Fig 1: Removing Bolt
  Courtesy of FORD MOTOR CO.
Remove the two reinforcement plates.
1. Remove the bolts.
2. Remove the plates.

  Fig 2: Removing Two Reinforcement Plates
  Courtesy of FORD MOTOR CO.

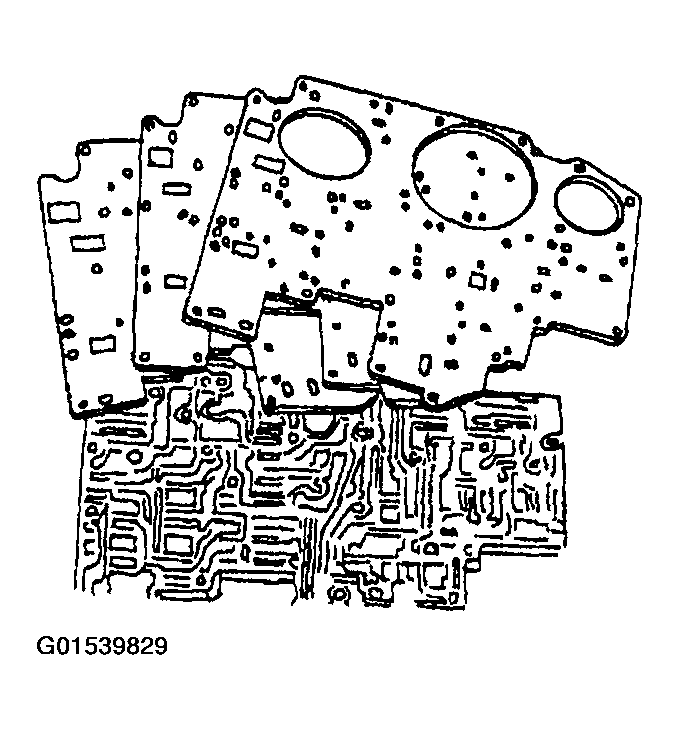

Remove the separator plate and discard the gaskets.

Fig 3: Removing Separator Plate And Discarding Gaskets
Courtesy of FORD MOTOR CO.

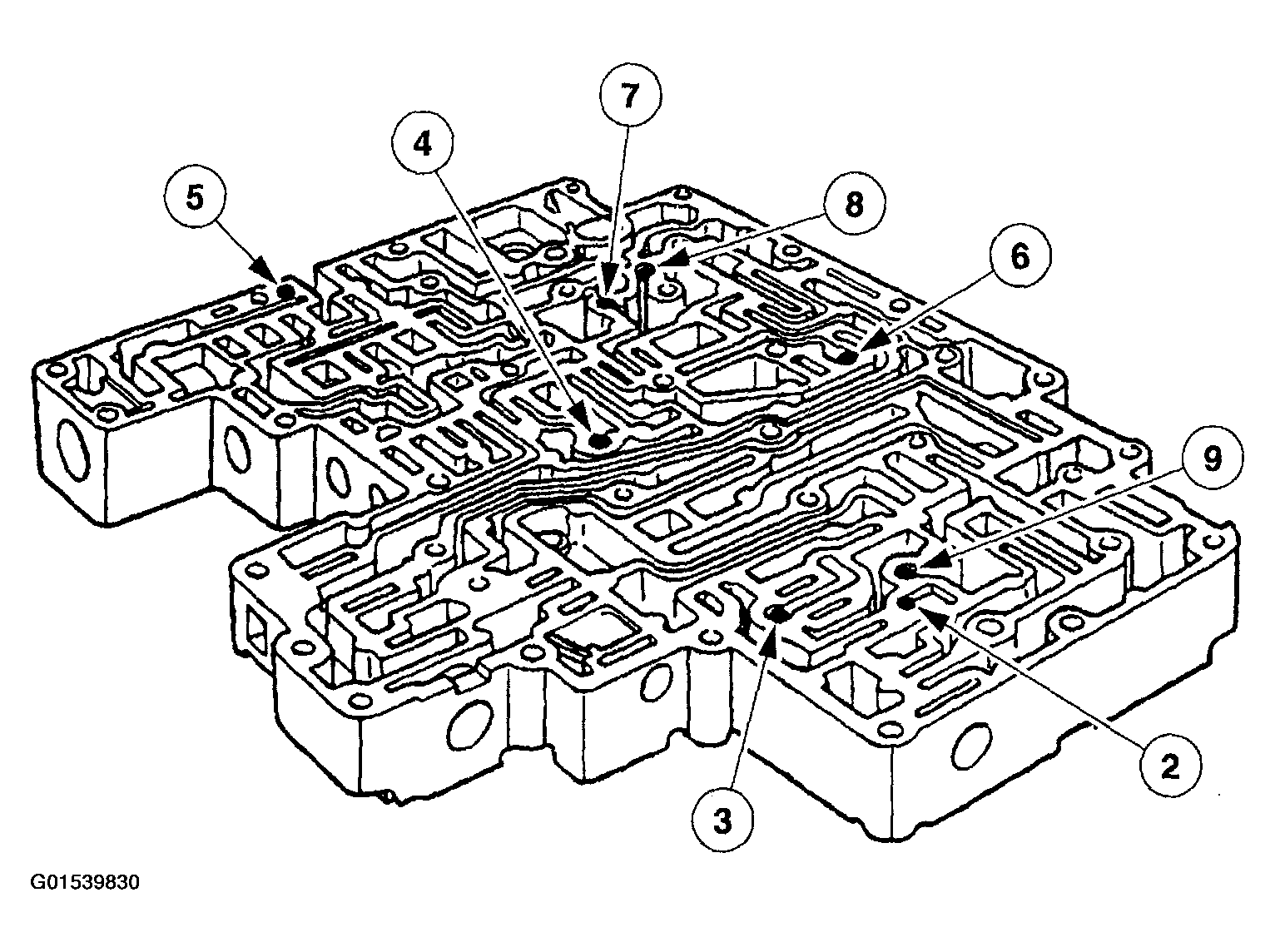

NOTE: Note the location of the eight coasting booster valve shuttle balls for assembly.

Fig 4: Removing Eight Coasting Booster Valve Shuttle Balls

Courtesy of FORD MOTOR CO.

Remove the eight coasting booster valve shuttle balls.

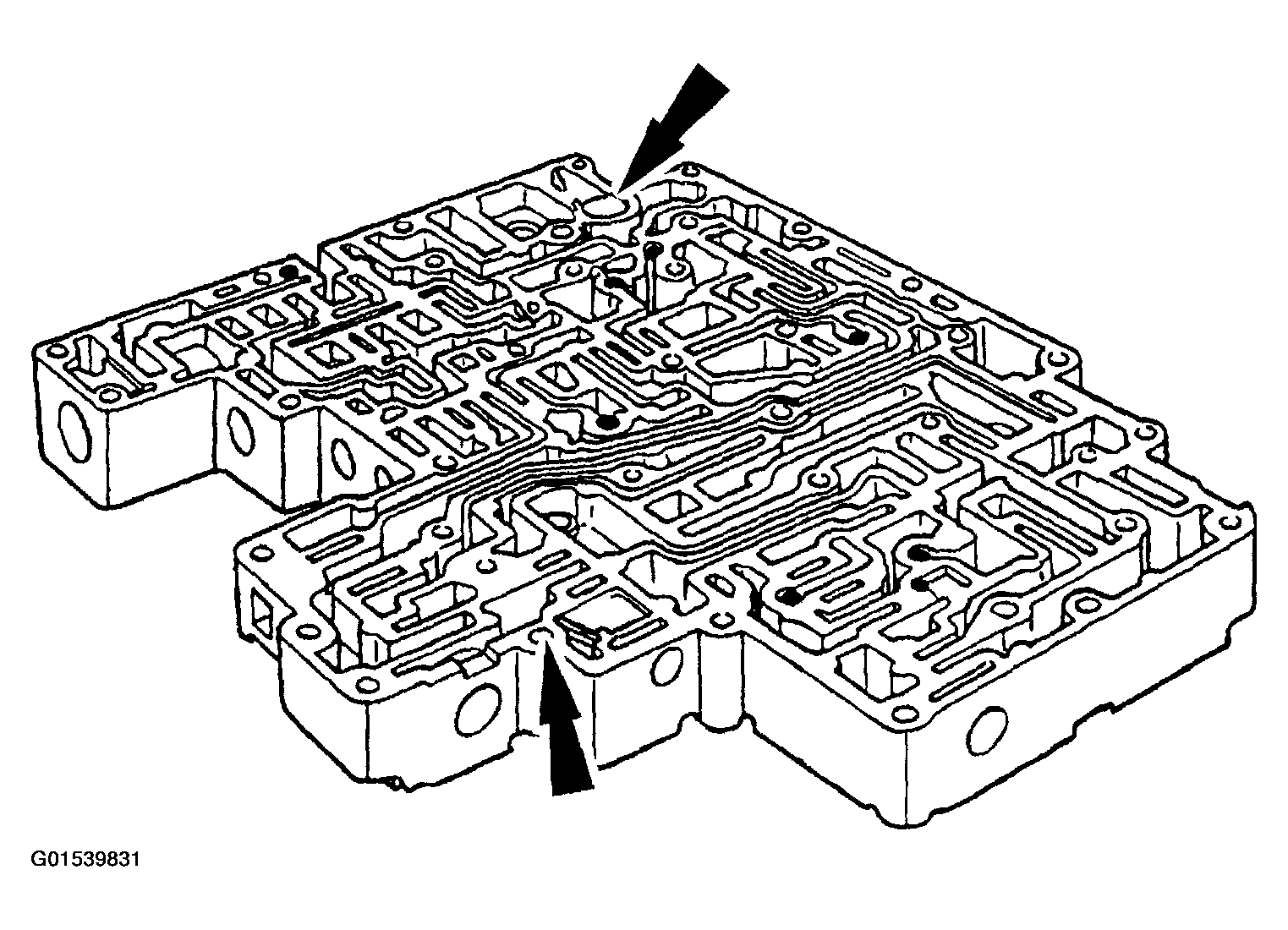

Remove the converter drain back valve and solenoid pressure supply screen.

Fig 5: Removing Converter Drain Back Valve And Solenoid Pressure Supply Screen
Courtesy of FORD MOTOR CO.

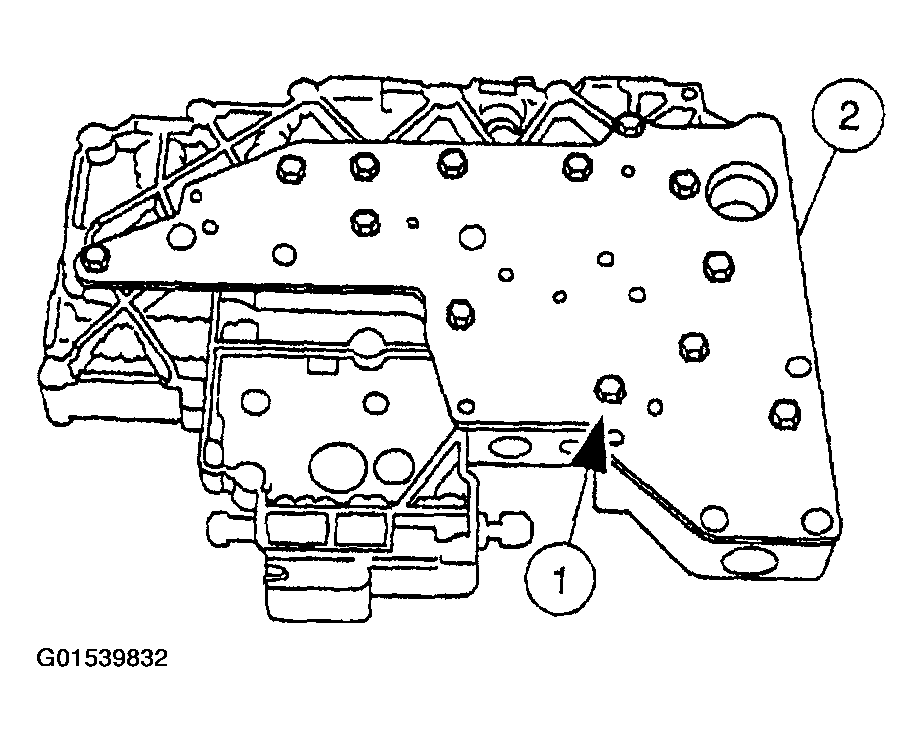

Remove the main control valve body cover plate.
1. Remove the 13 bolts.
2. Remove the valve body cover plate and gasket.

  Fig 6: Removing 13 Main Control Valve Body Cover Plate Bolts
  Courtesy of FORD MOTOR CO.
