4R70W Shift Speeds 4.09:1 Axle Ratio, Stripped Chassis

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

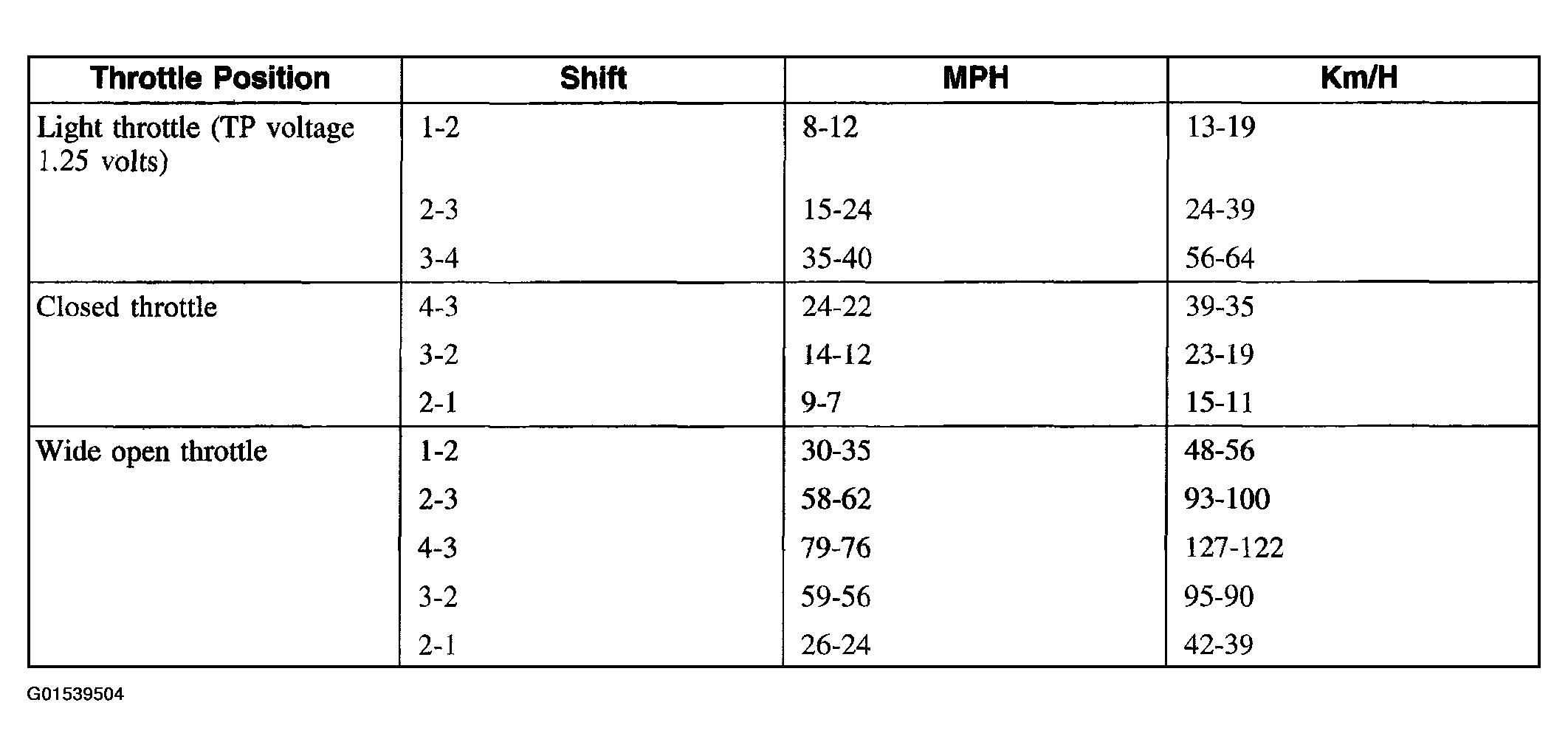

Fig 1: Identifying 4R70W Shift Speeds 4.09:1 Axle Ratio, Stripped Chassis Specification
G01539504Courtesy of FORD MOTOR CO.
