Shift Solenoid Failure Mode Chart "Always Off"

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

Failed off due to powertrain control module and/or vehicle wiring concerns, shift solenoid electrically or hydraulically stuck off.

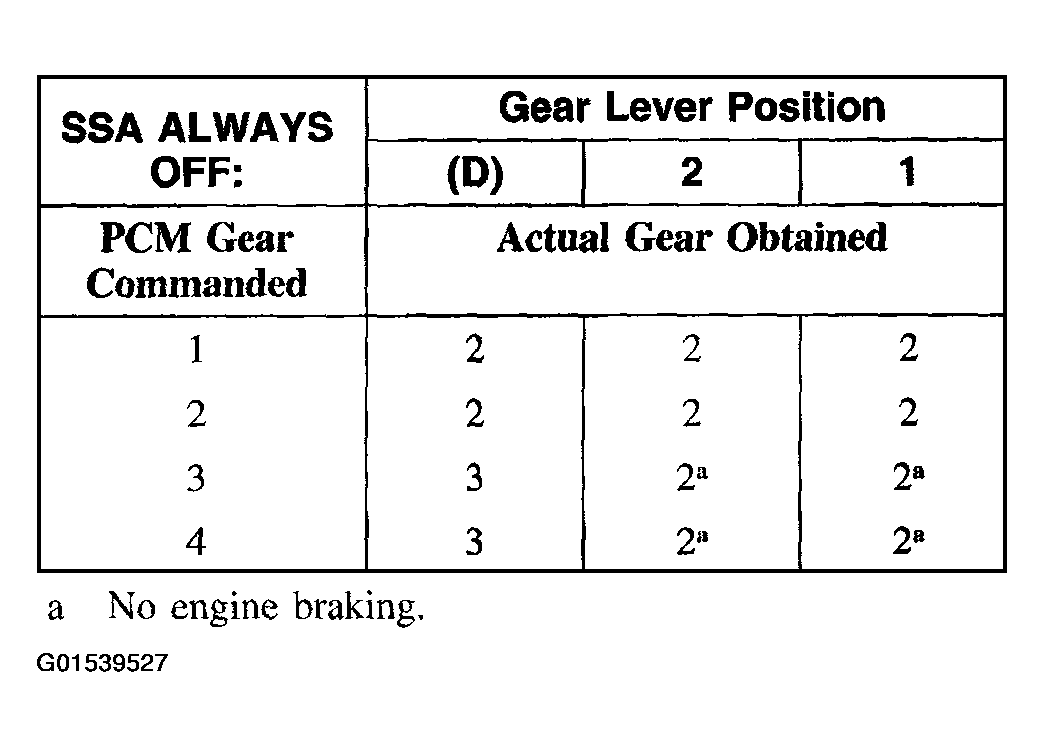

Fig 1: Shift Solenoid Failure Mode Chart "Always Off" (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 2: Shift Solenoid Failure Mode Chart "Always Off" (2 Of 2)

Courtesy of FORD MOTOR CO.
