Shift Concerns: 1-2 Shift (Automatic)

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

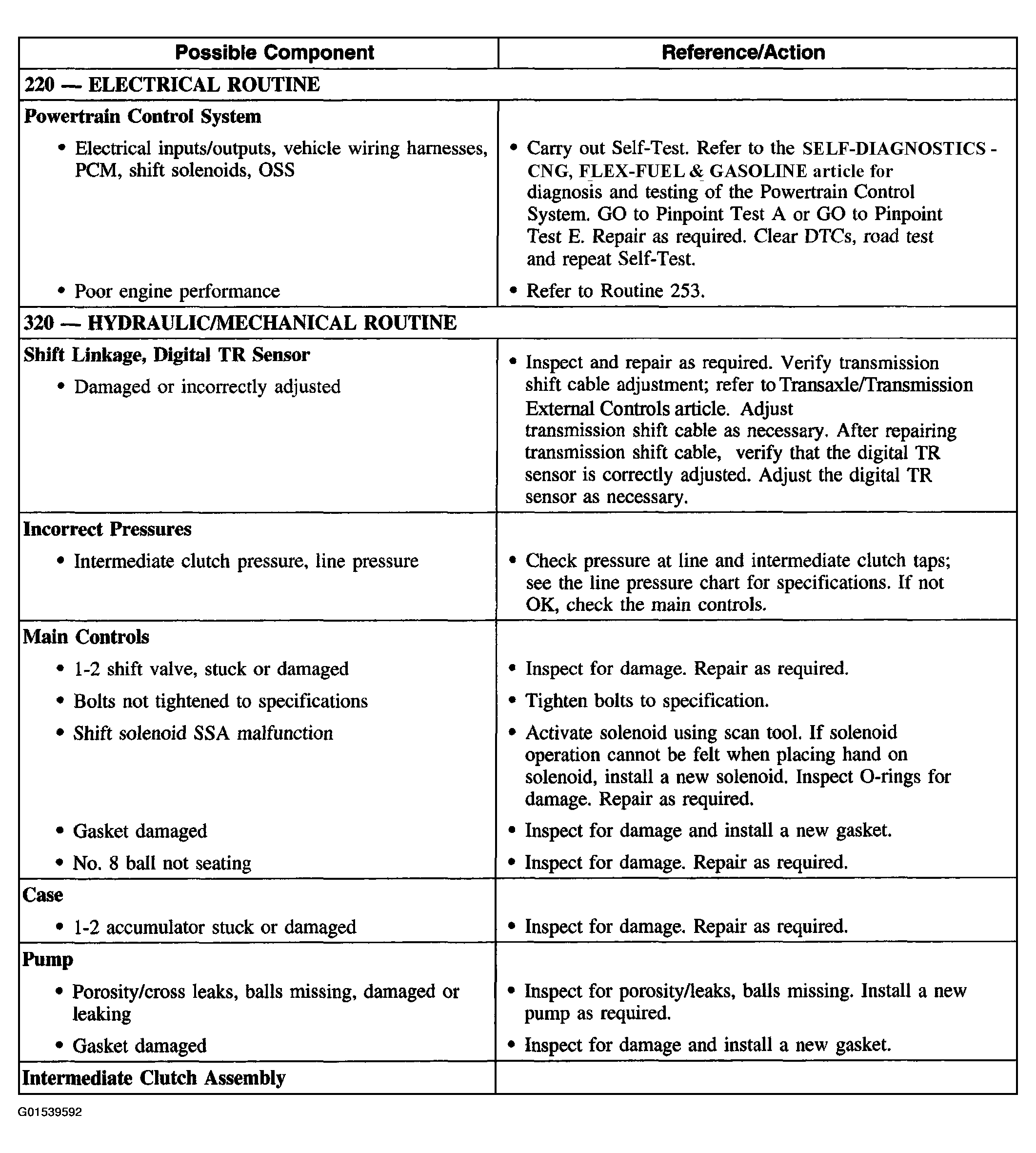

Fig 1: Diagnostic Routines 220/320 - Shift Concerns: 1-2 Shift (Automatic) (1 Of 2)
G01539592Courtesy of FORD MOTOR CO.

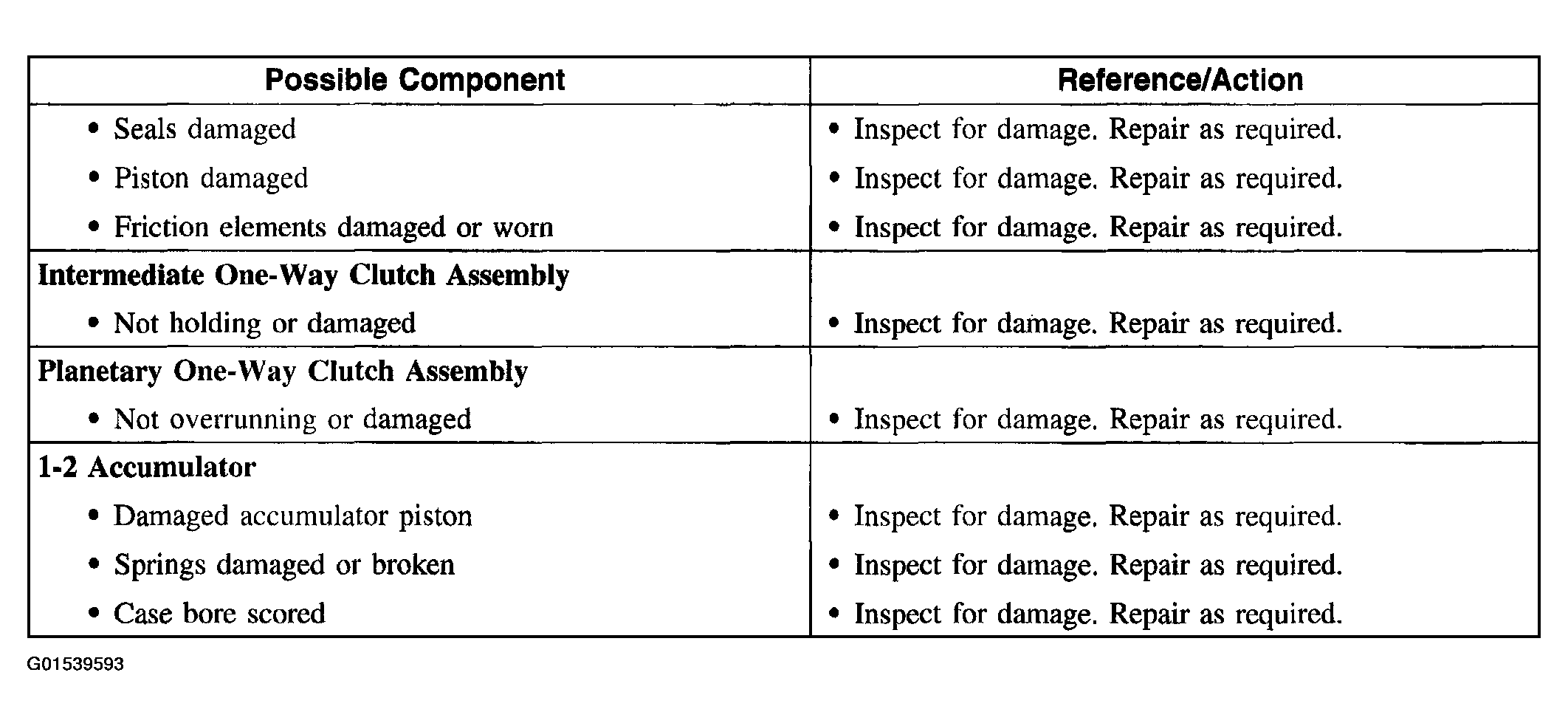

Fig 2: Diagnostic Routines 220/320 - Shift Concerns: 1-2 Shift (Automatic) (2 Of 2)
G01539593Courtesy of FORD MOTOR CO.
