Other Concerns: Noise/Vibration - Forward Or Reverse

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

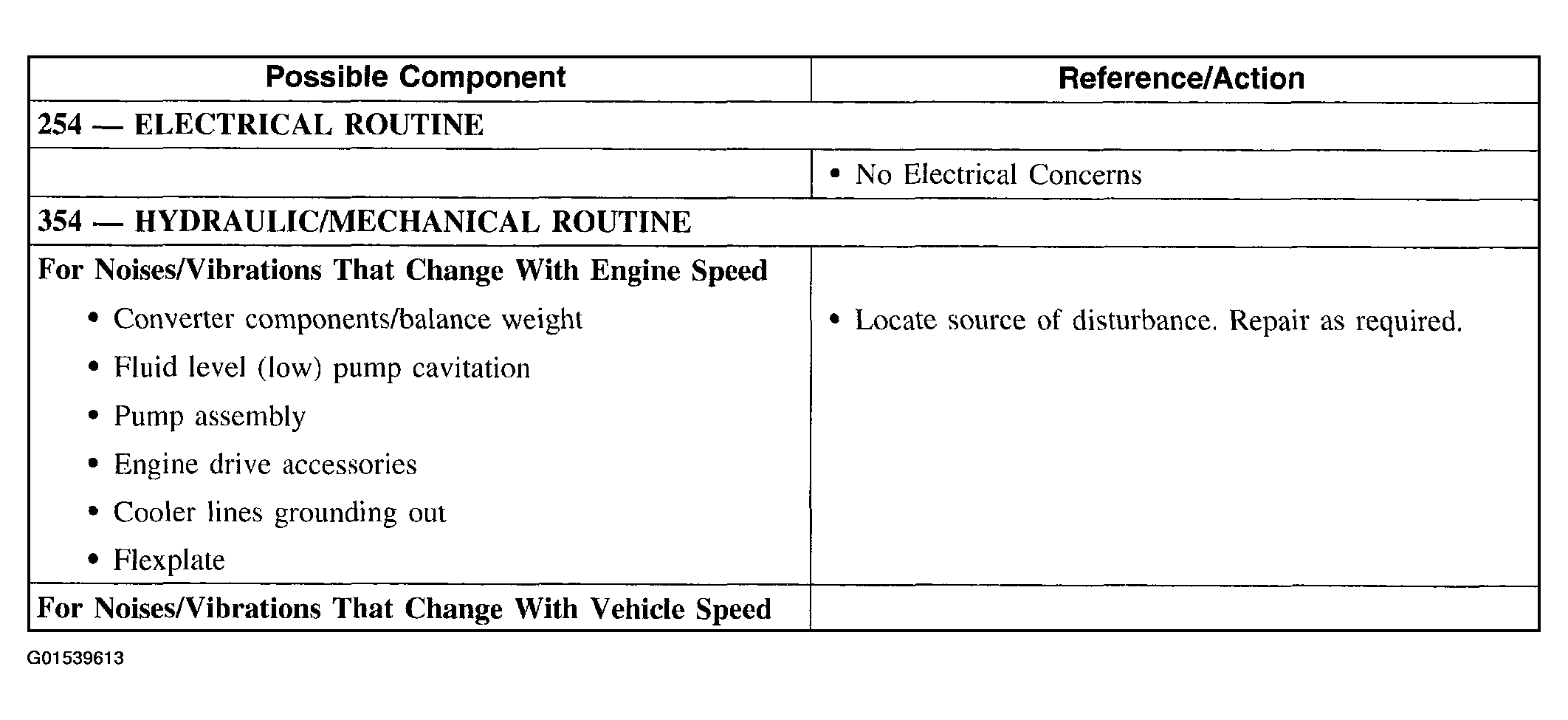

Fig 1: Diagnostic Routines 254/354 - Other Concerns: Noise/Vibration - Forward Or Reverse (1 Of 2)
G01539613Courtesy of FORD MOTOR CO.

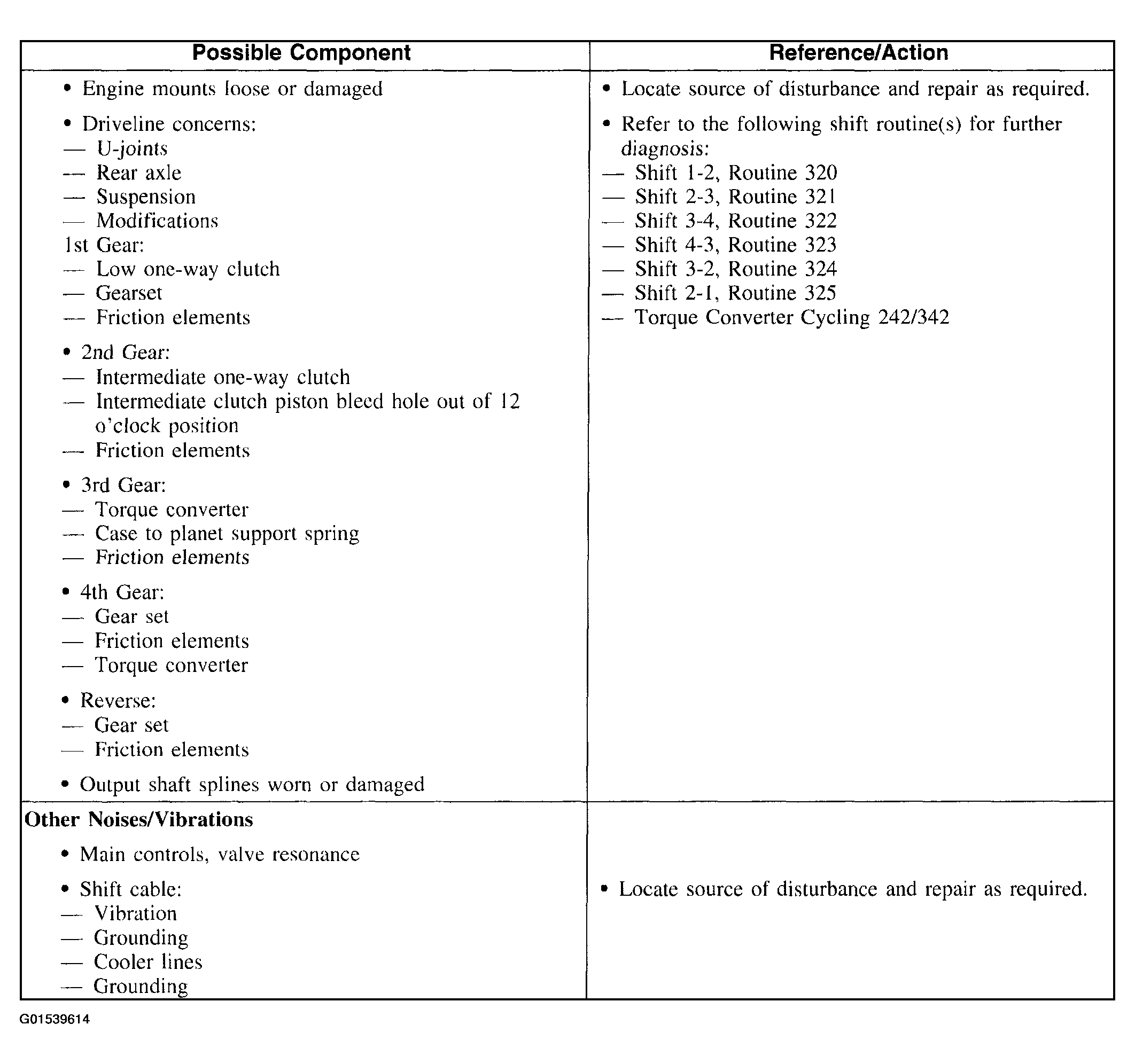

Fig 2: Diagnostic Routines 254/354 - Other Concerns: Noise/Vibration - Forward Or Reverse (2 Of 2)
G01539614Courtesy of FORD MOTOR CO.
