Other Concerns: External Leaks

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

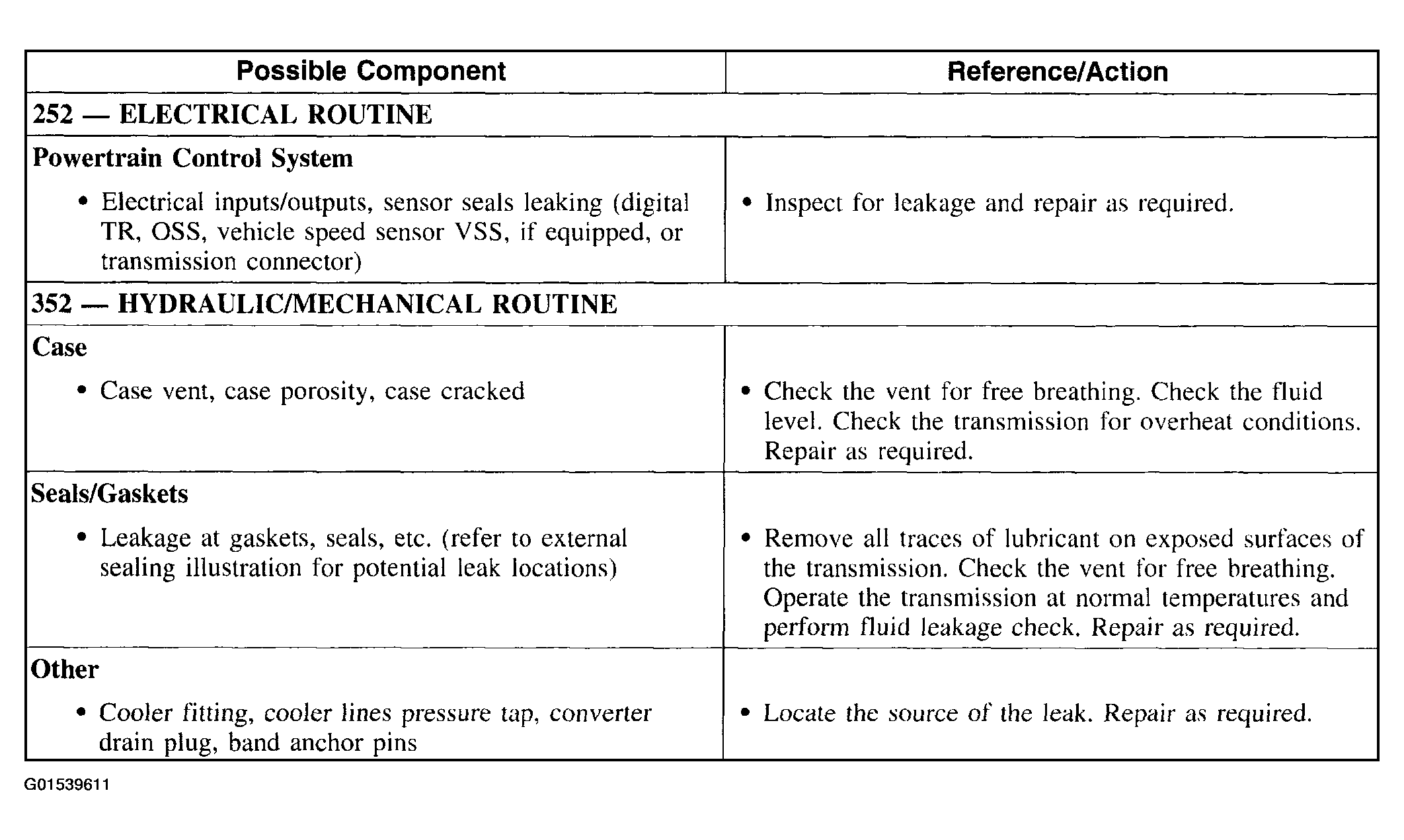

Fig 1: Diagnostic Routines 252/352 - Other Concerns: External Leaks
G01539611Courtesy of FORD MOTOR CO.
