WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

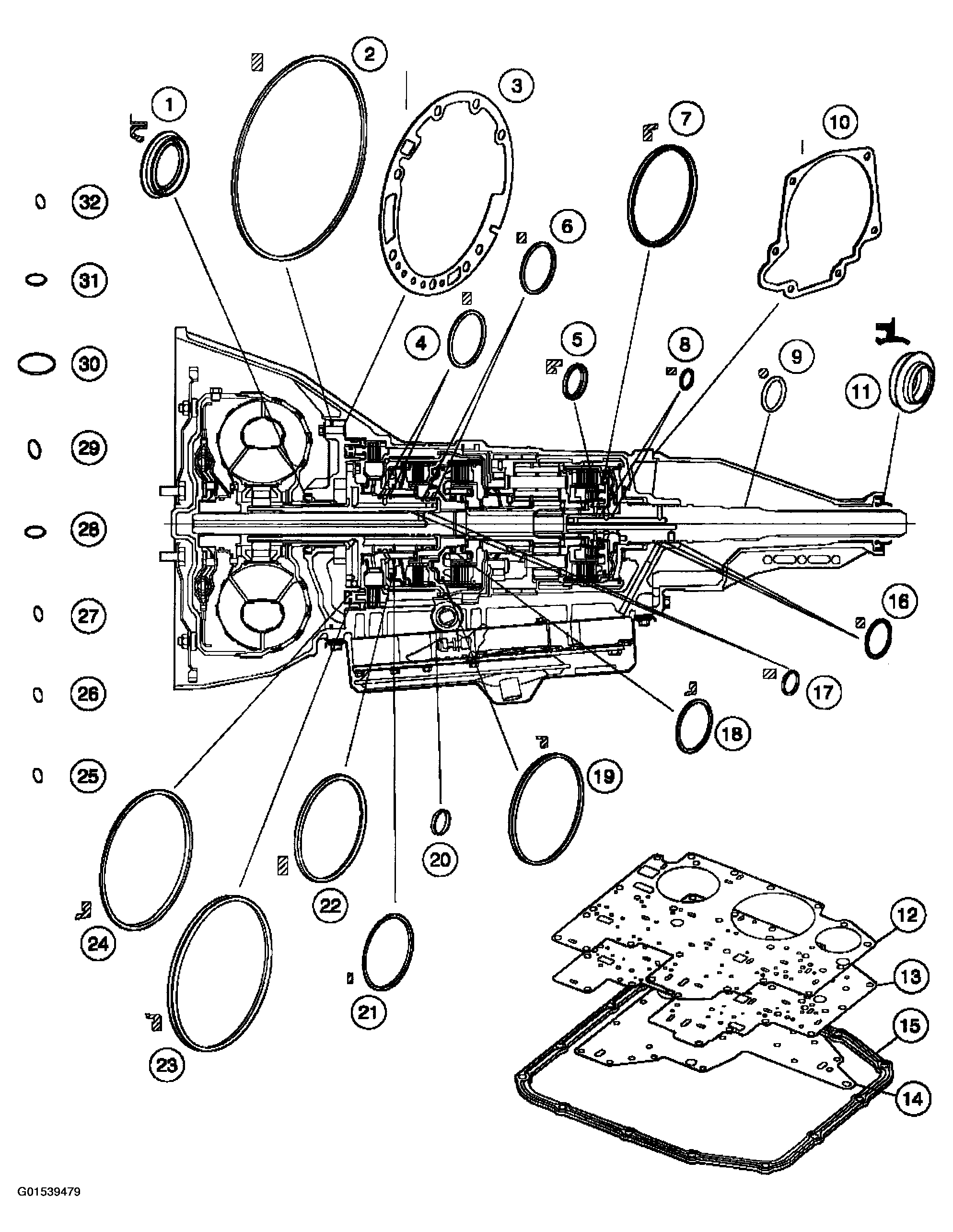

Fig 1: Locating Seals, Rings And Gasket
Courtesy of FORD MOTOR CO.

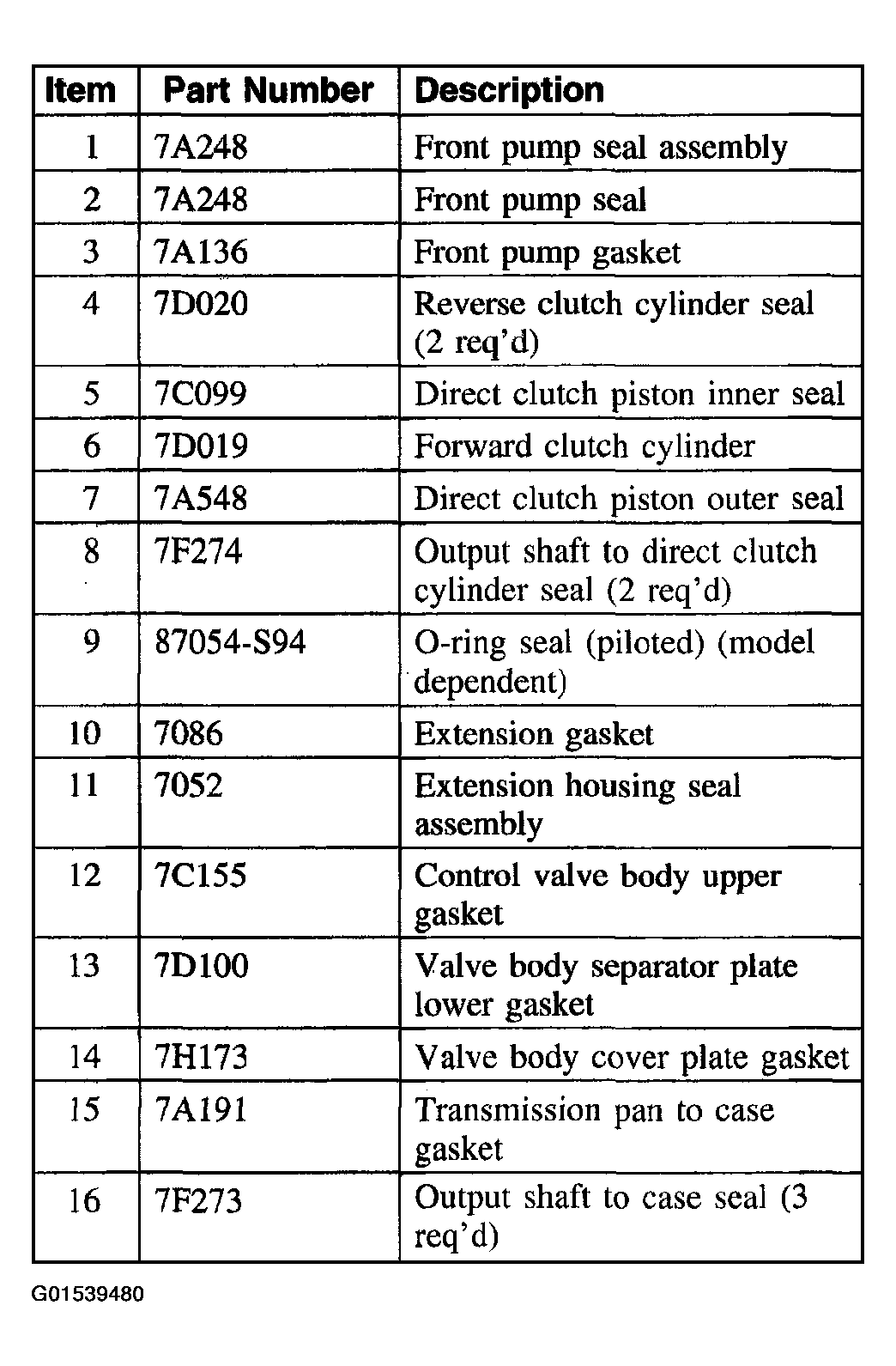

Fig 2: Description And Operation Specification (Items 1-16)
Courtesy of FORD MOTOR CO.

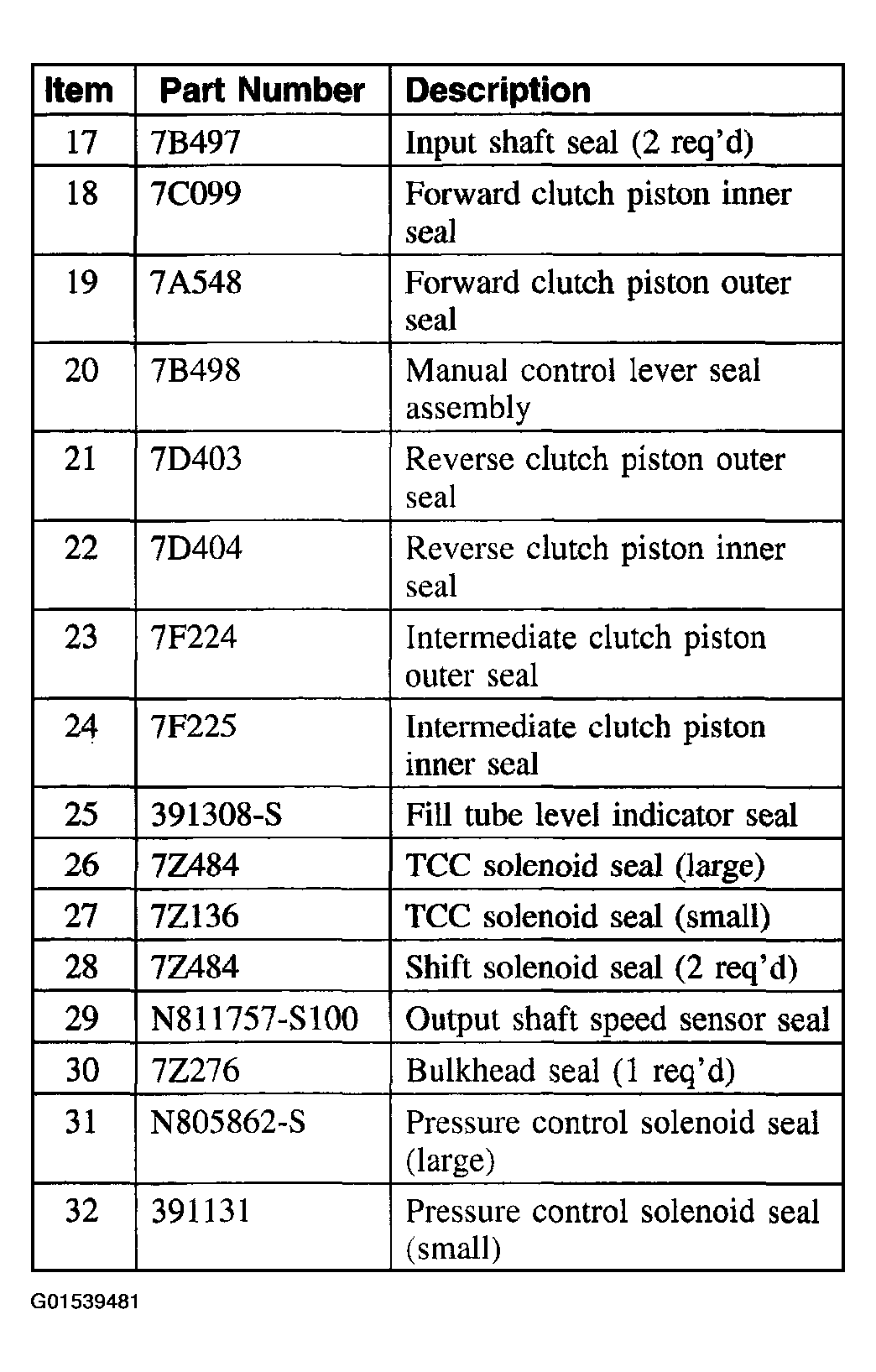

Fig 3: Description And Operation Specification (Items 17-32)
