4R70W Automatic Transmission - Disassembled View

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

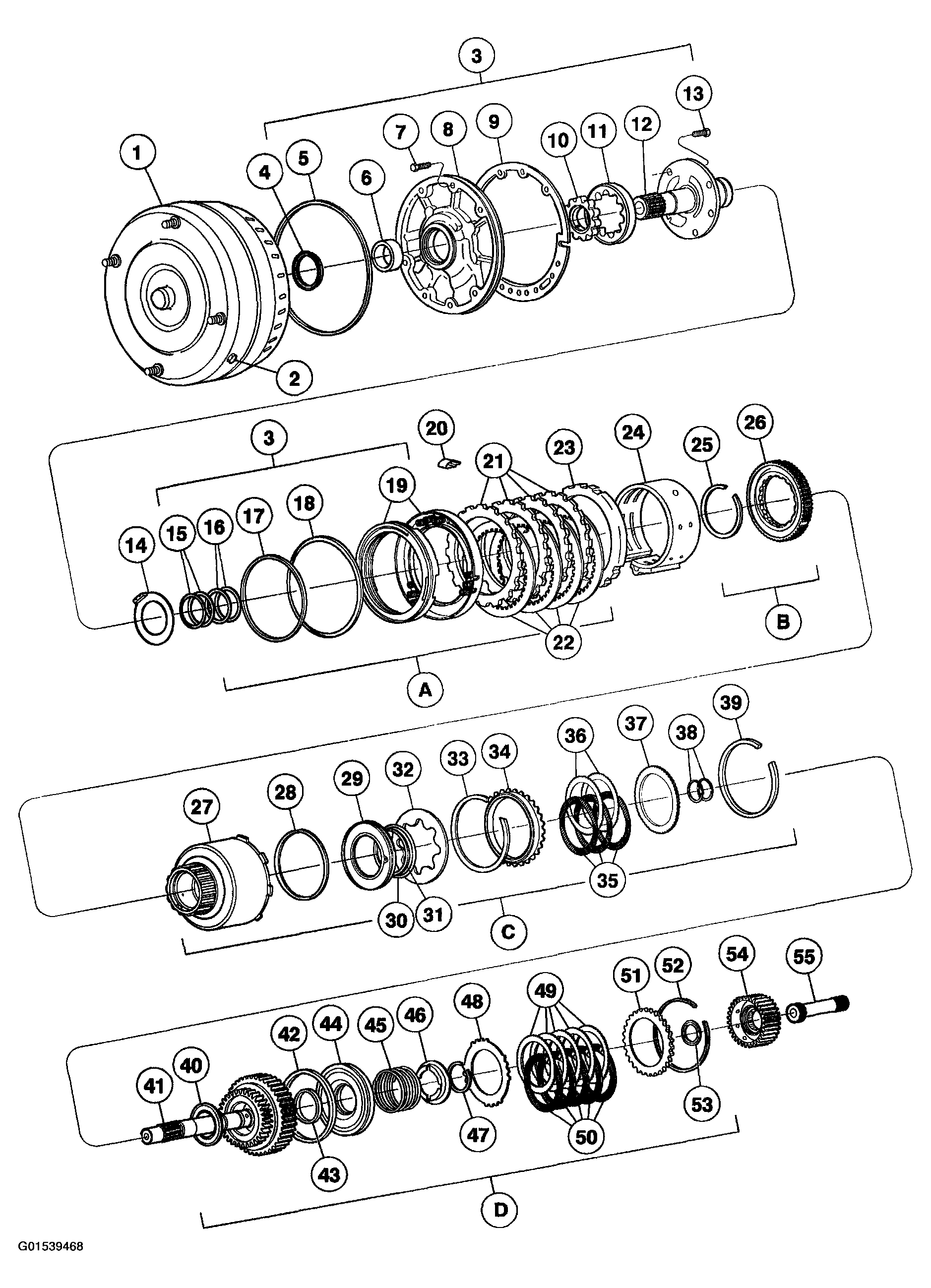

Fig 1: Disassembling 4R70W Automatic Transmission (1 Of 2)

Courtesy of FORD MOTOR CO.

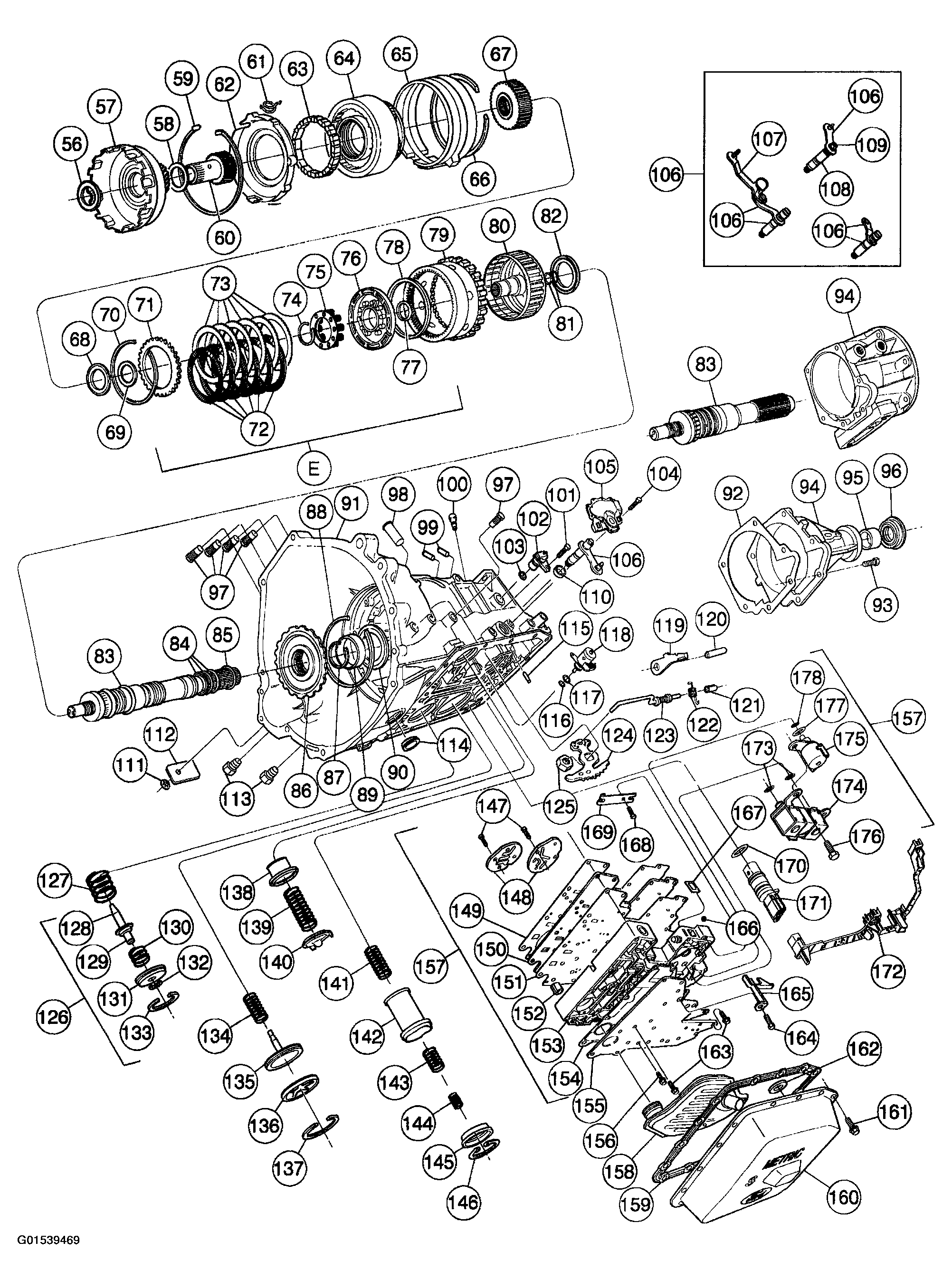

Fig 2: Disassembling 4R70W Automatic Transmission (2 Of 2)

Courtesy of FORD MOTOR CO.

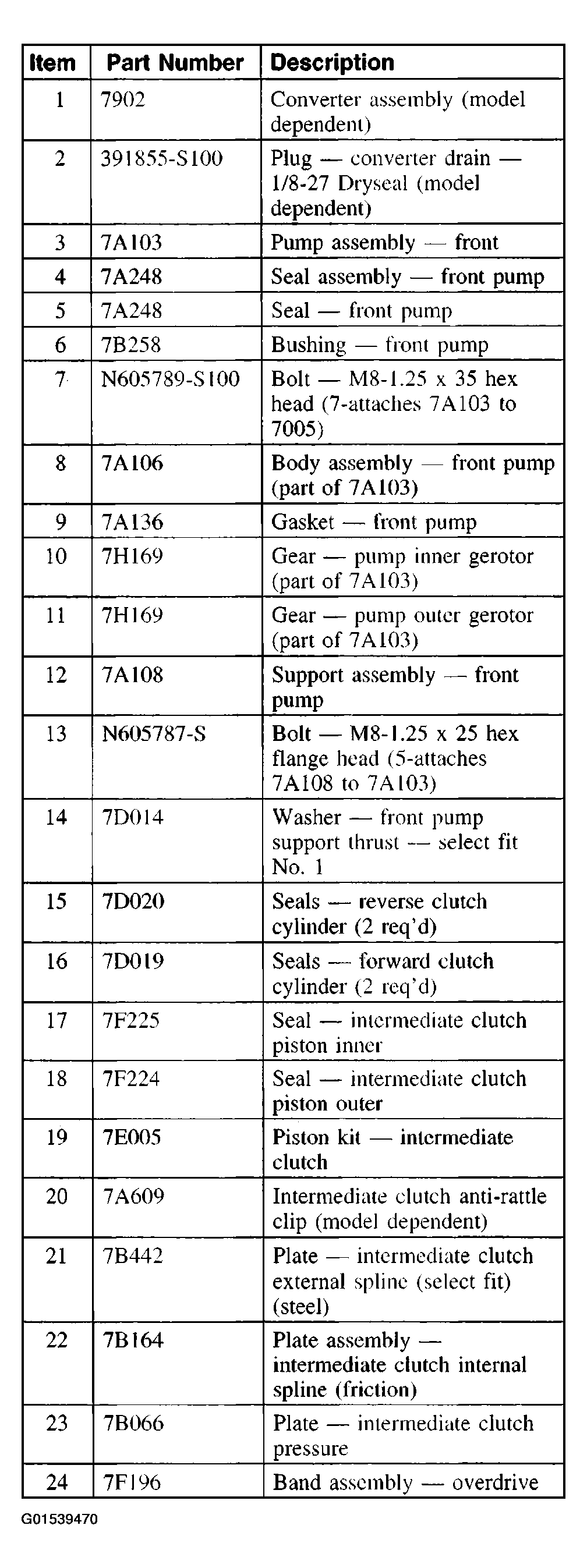

Fig 3: Transmission Component Legend (Items 1-24)

Courtesy of FORD MOTOR CO.

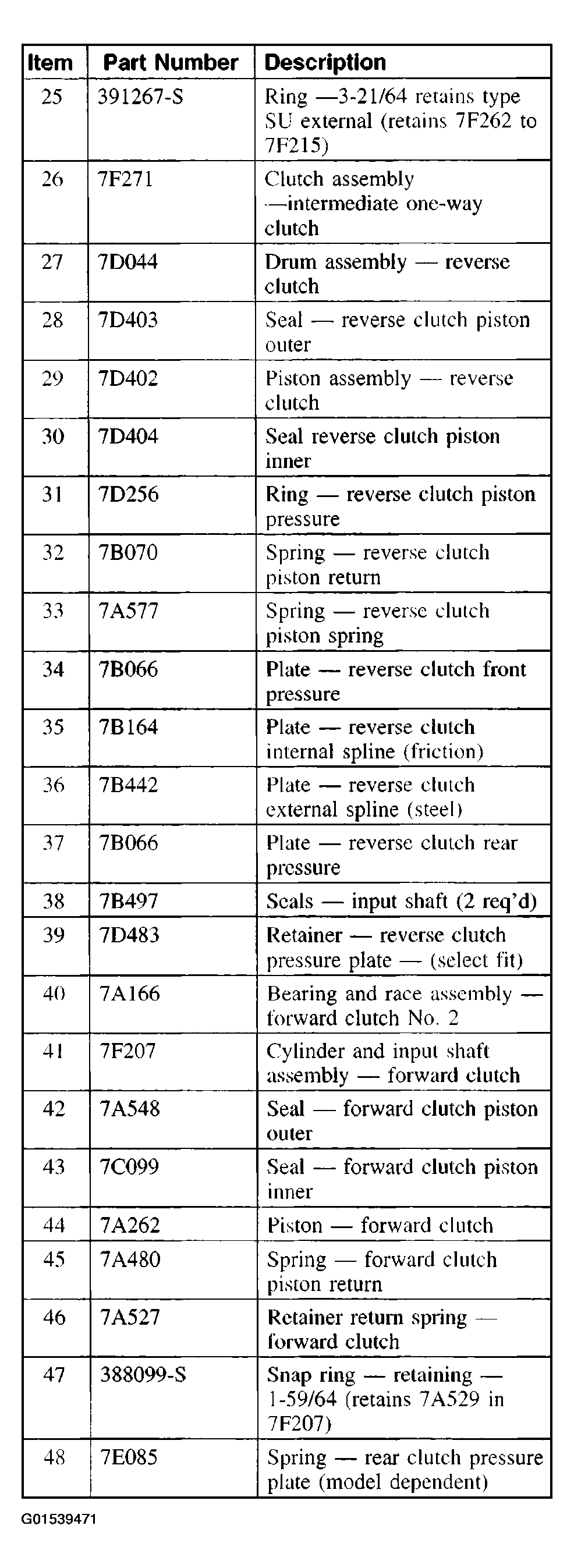

Fig 4: Transmission Component Legend (Items 25-48)

Courtesy of FORD MOTOR CO.

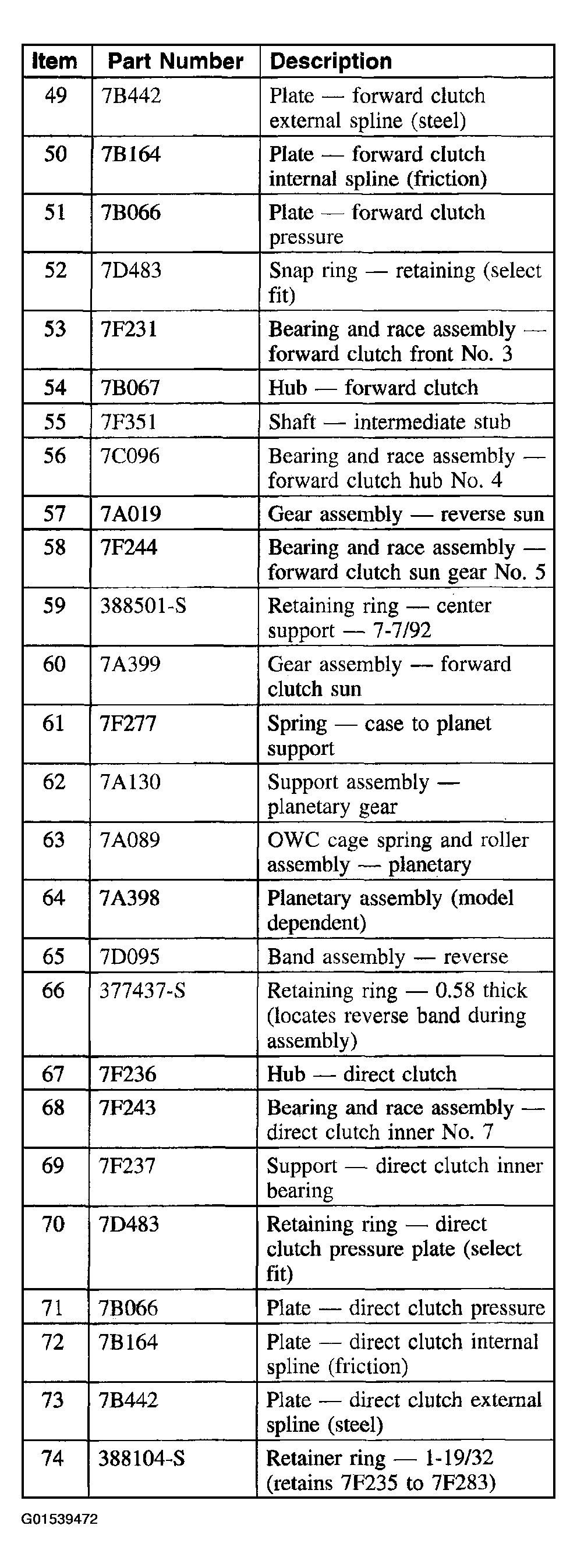

Fig 5: Transmission Component Legend (Items 49-74)

Courtesy of FORD MOTOR CO.

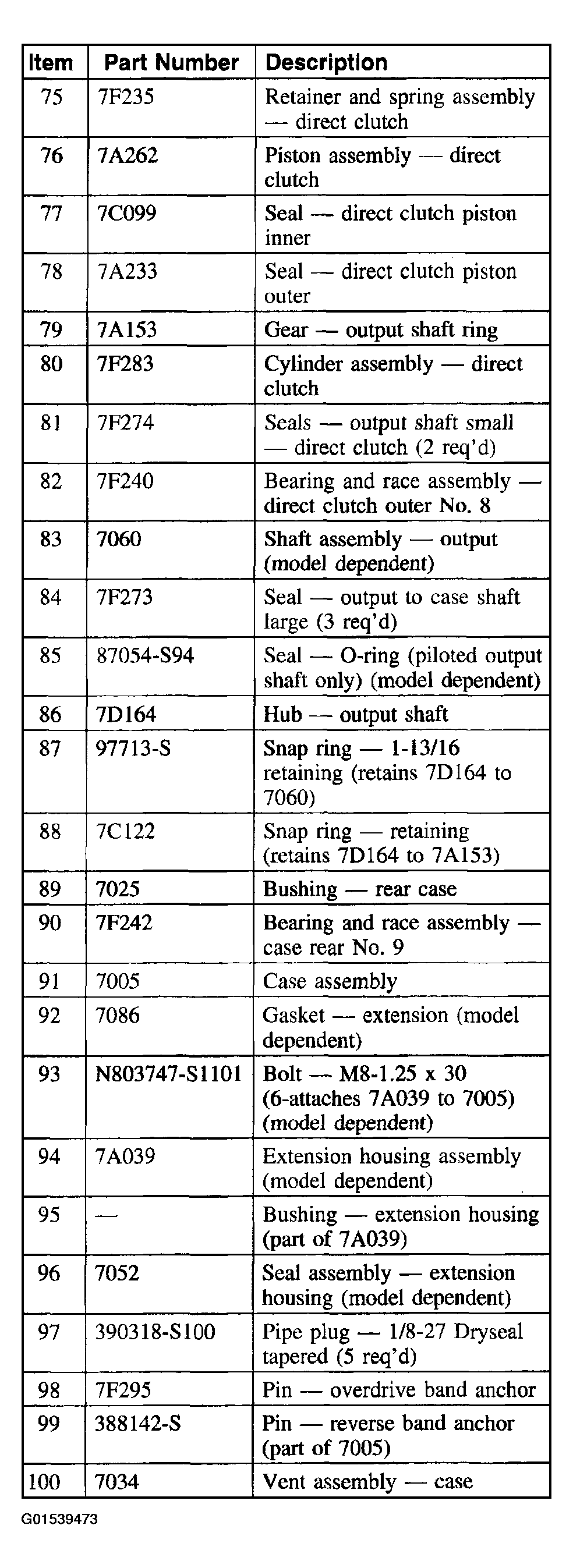

Fig 6: Transmission Component Legend (Items 75-100)

Courtesy of FORD MOTOR CO.

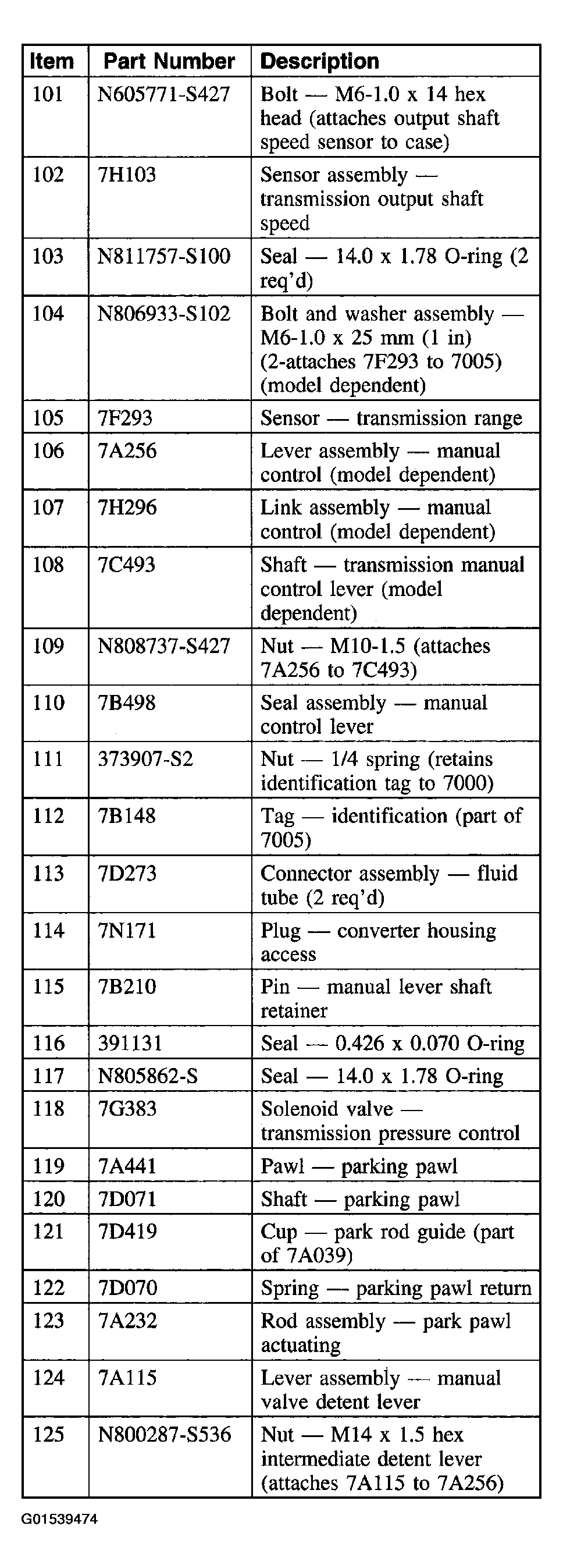

Fig 7: Transmission Component Legend (Items 101-125)

Courtesy of FORD MOTOR CO.

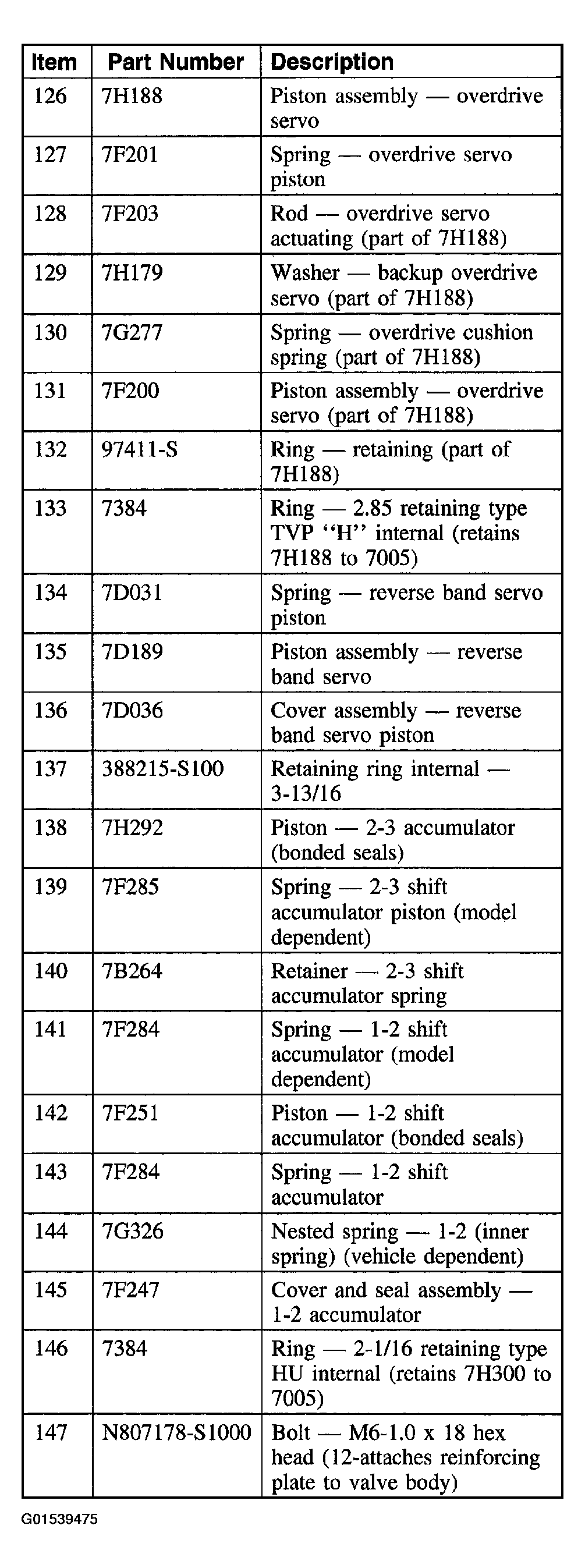

Fig 8: Transmission Component Legend (Items 126-147)

Courtesy of FORD MOTOR CO.

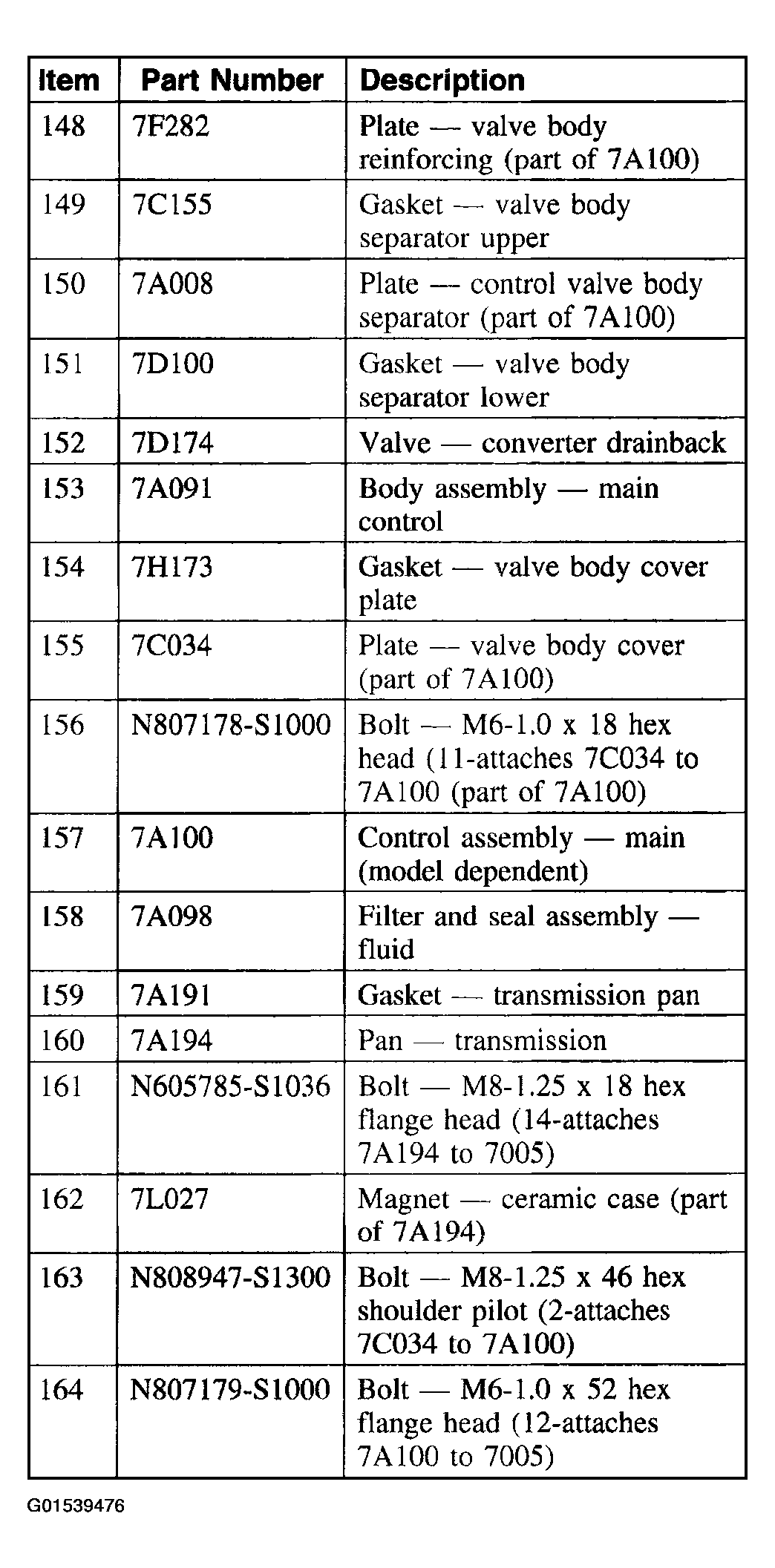

Fig 9: Transmission Component Legend (Items 148-164)

Courtesy of FORD MOTOR CO.

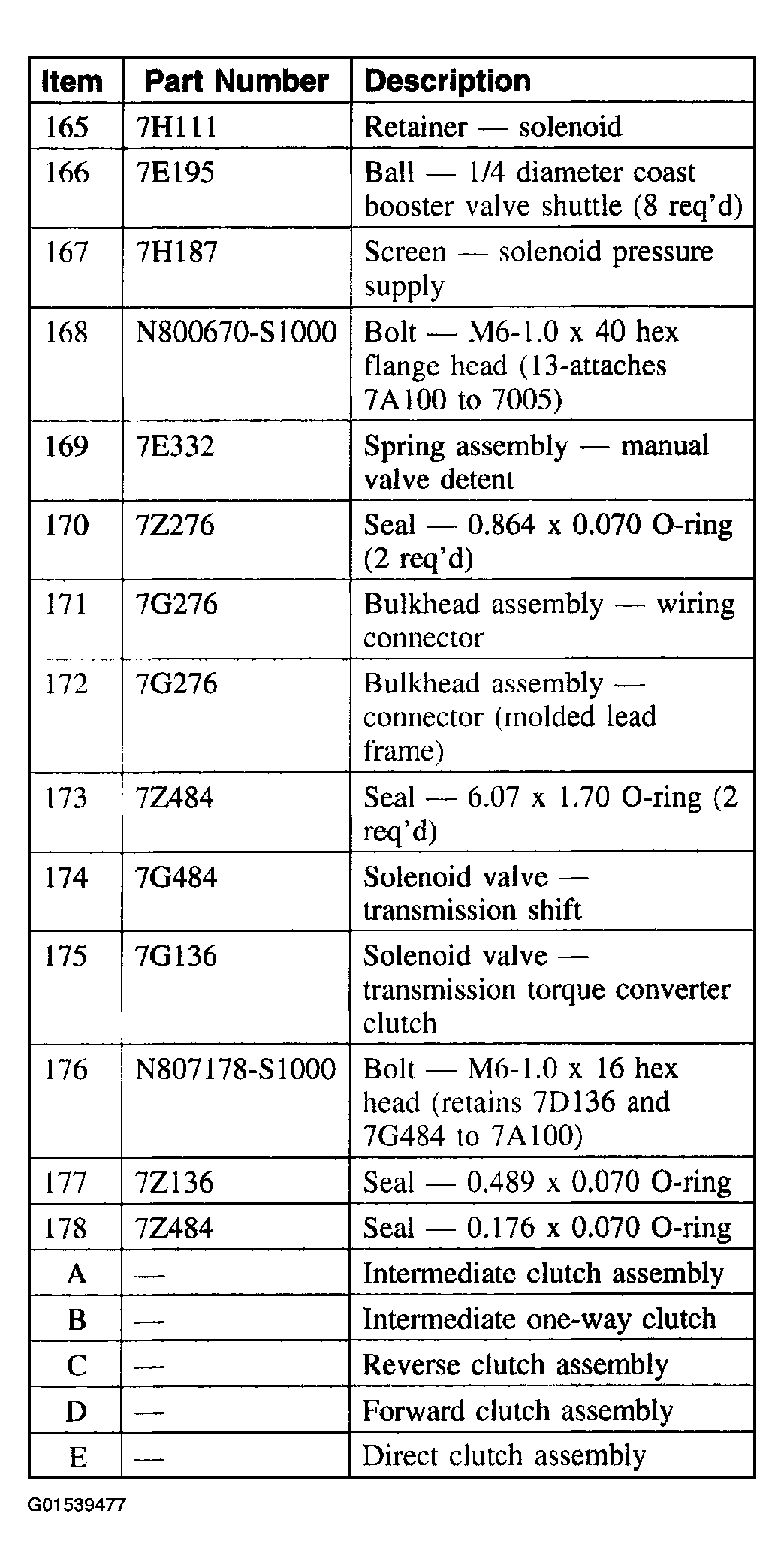

Fig 10: Transmission Component Legend (Items 165-178/A-E)

Courtesy of FORD MOTOR CO.
