Belt - 7.3L Diesel: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and remove the air cleaner assembly.
  2. Rotate the drive belt tensioner (6B209), and remove the drive belt (8620).

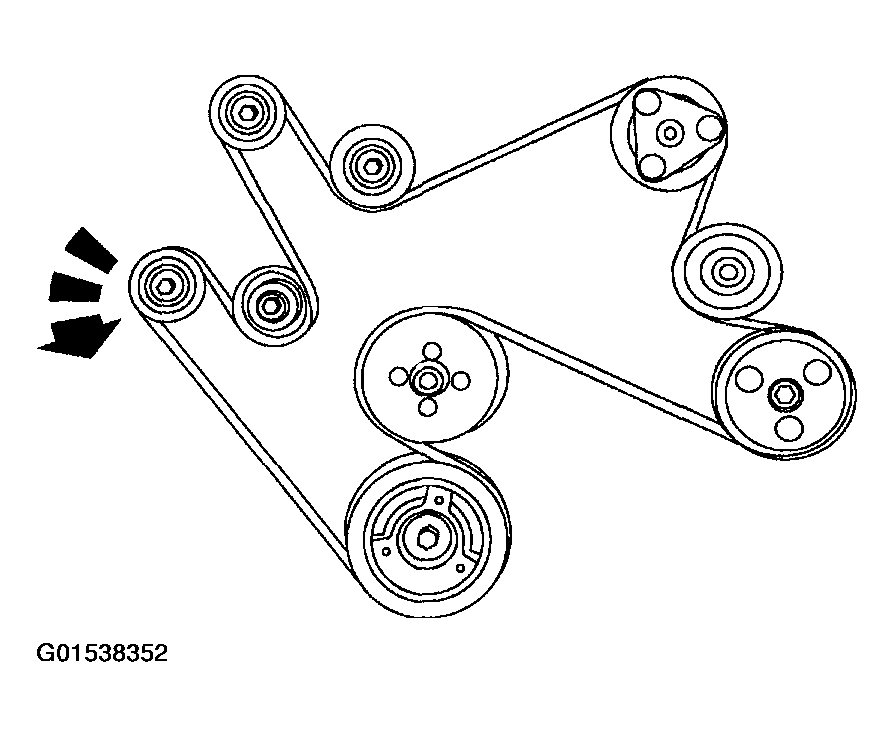

    Fig 1: Identifying Drive Belt Routing (1 Of 2)
    G01538352Courtesy of FORD MOTOR CO.

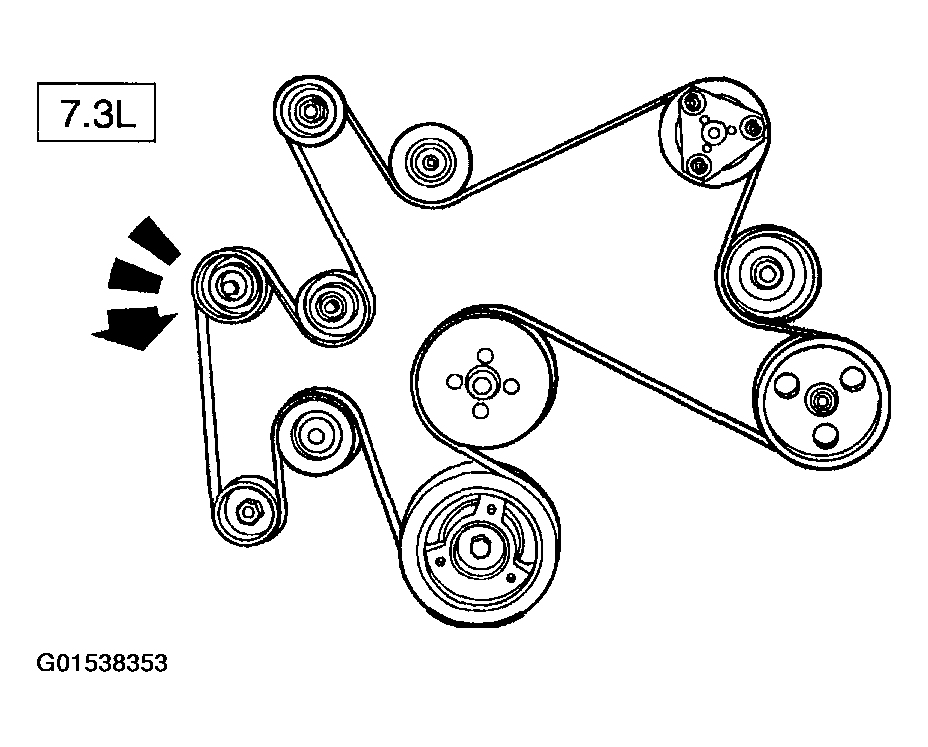

    Fig 2: Identifying Drive Belt Routing (2 Of 2)
    G01538353Courtesy of FORD MOTOR CO.
