Water Pump - 4.6L, 5.4L and 6.8L: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
  2. Remove the fan and fan clutch. For additional information, refer to COOLING FAN .
  3. Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
  4. Remove the water pump pulley.
    1. Remove the bolts.
    2. Remove the water pump pulley.

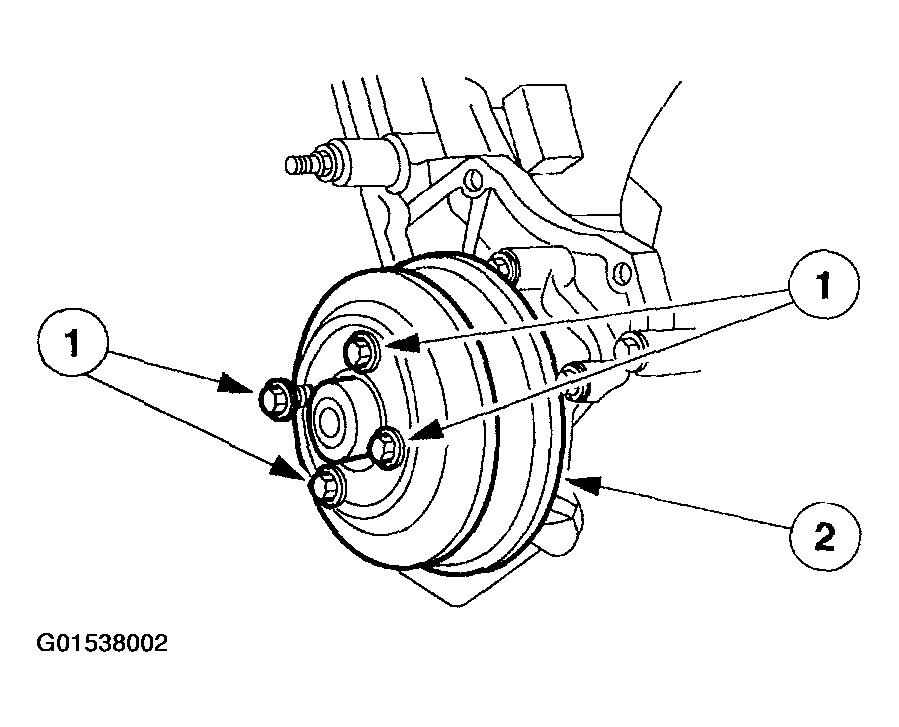

    Fig 1: Removing Water Pump Pulley
    G01538002Courtesy of FORD MOTOR CO.
  5. Remove the bolts.
  6. Remove the water pump from the cylinder block.

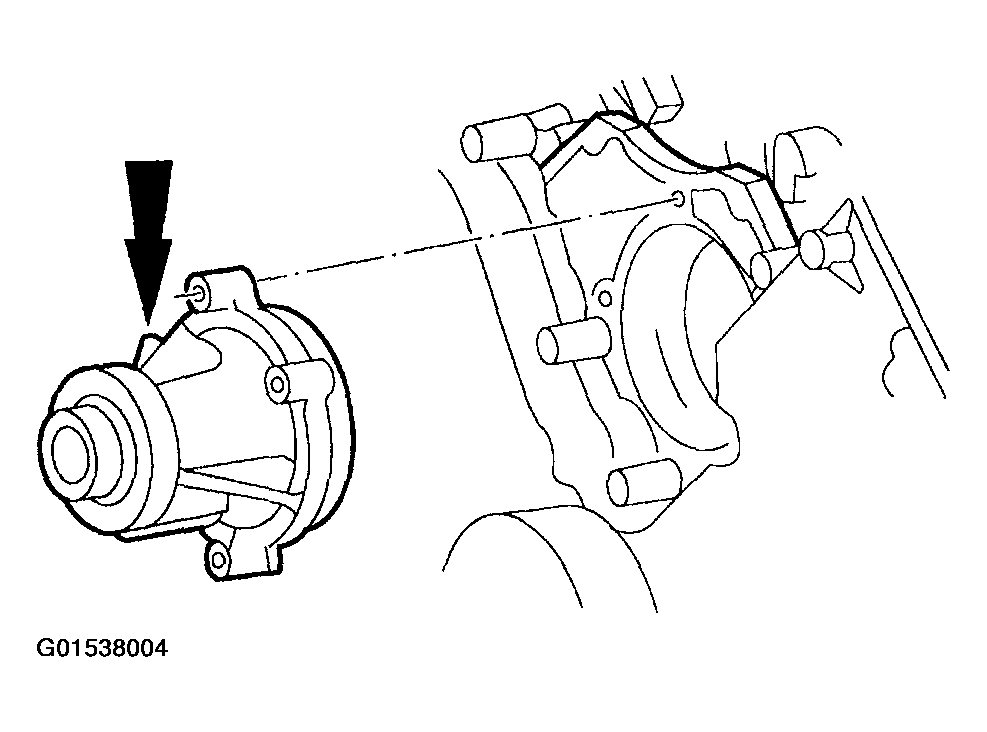

    Fig 2: Removing Water Pump From Cylinder Block
    G01538004Courtesy of FORD MOTOR CO.
