Water Pump - 4.2L: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.
- Tighten the stud bolts, bolts and nuts in the sequence shown.
- Install an appropriately sized worm drive-type clamp in place of the constant tension clamp.

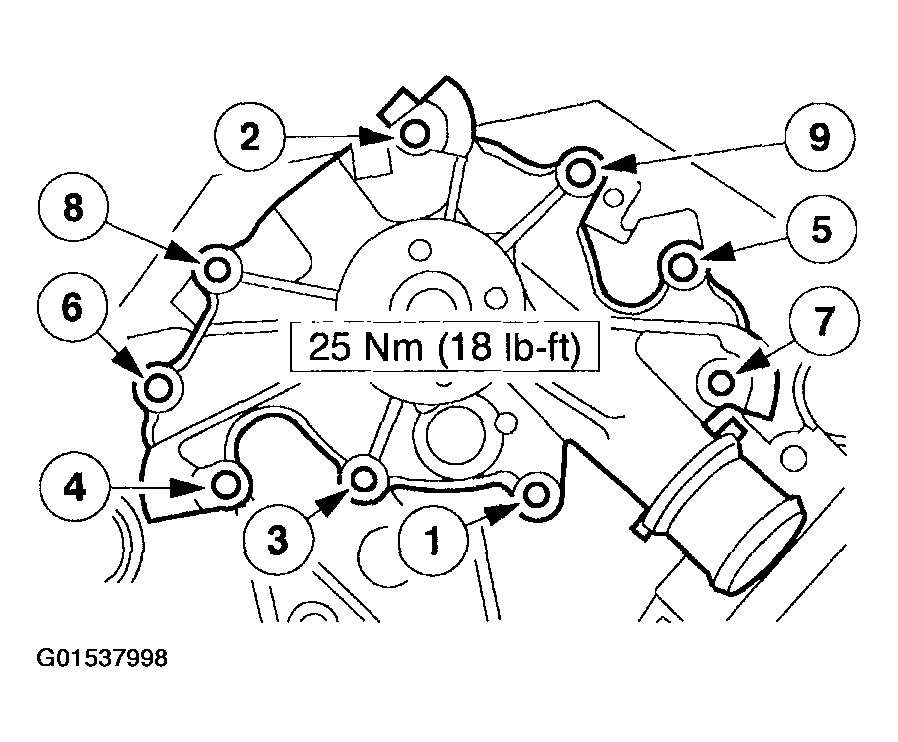

Fig 1: Installing Water Pump
Courtesy of FORD MOTOR CO.

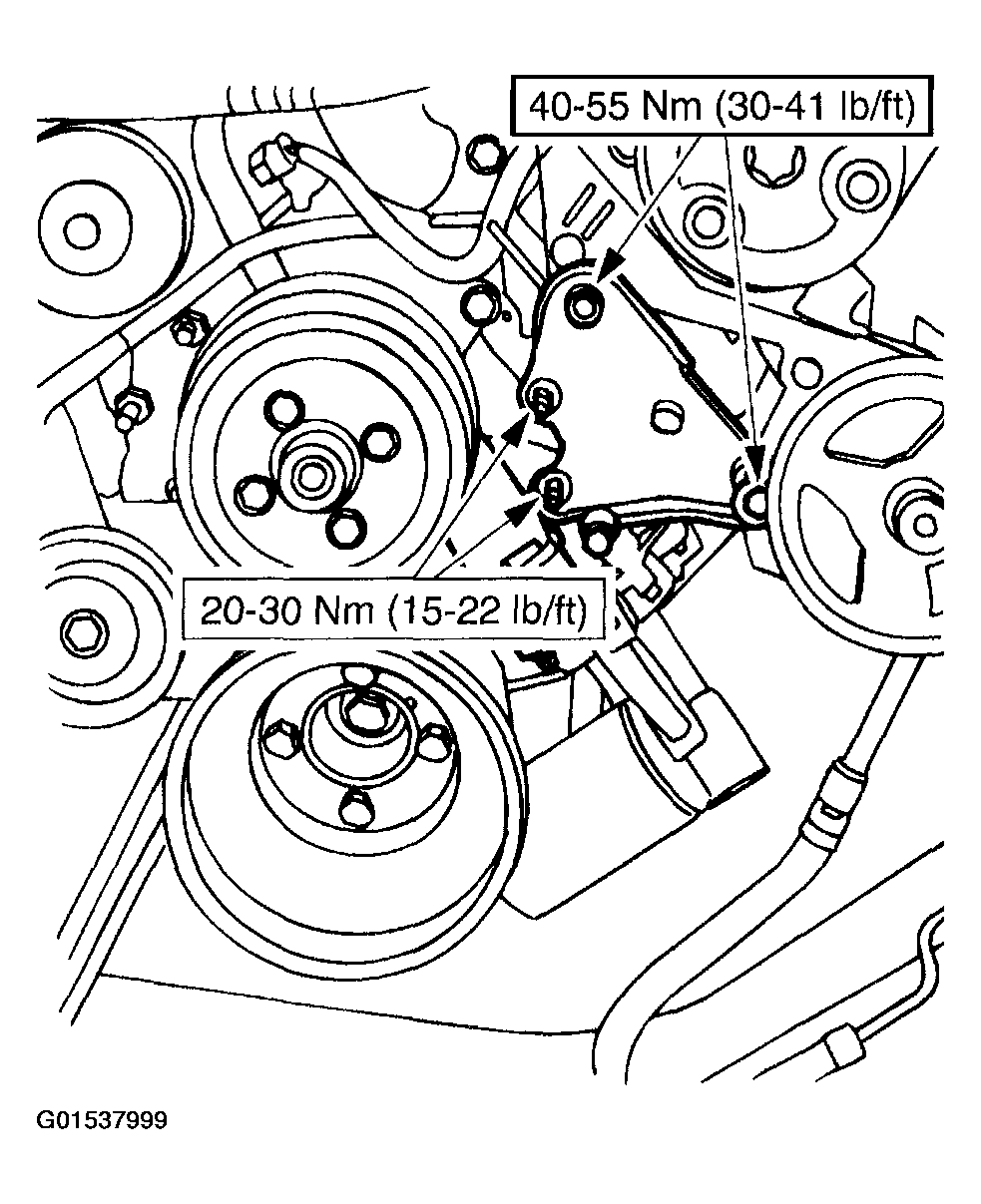

Fig 2: Installing A/C Support Bracket
Courtesy of FORD MOTOR CO.

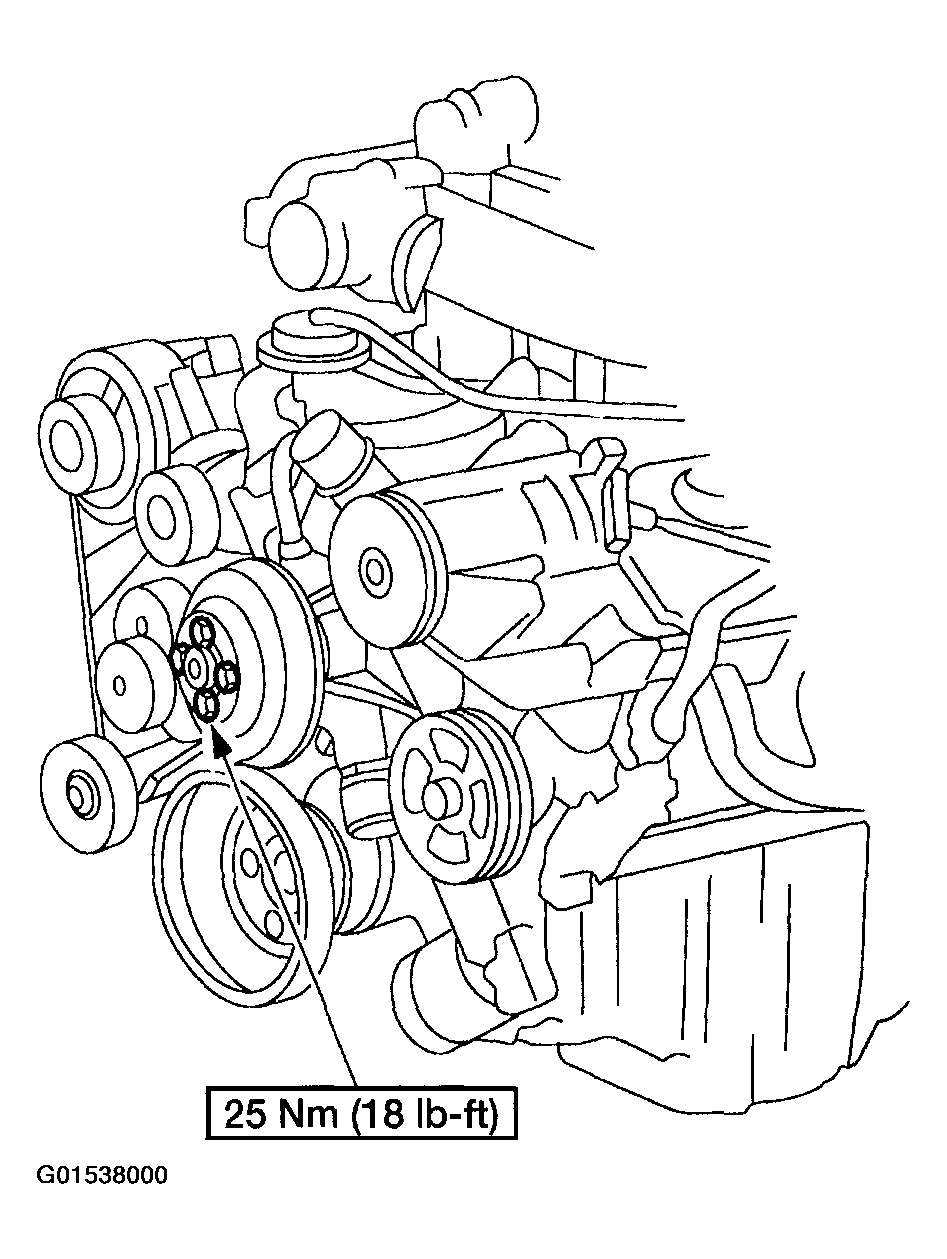

Fig 3: Installing Pulley To Water Pump
Courtesy of FORD MOTOR CO.
