Sender Unit - Water Temperature Indicator: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner assembly.
Partially drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Disconnect the electrical connector. Remove the engine coolant temperature sensor from the intake manifold.

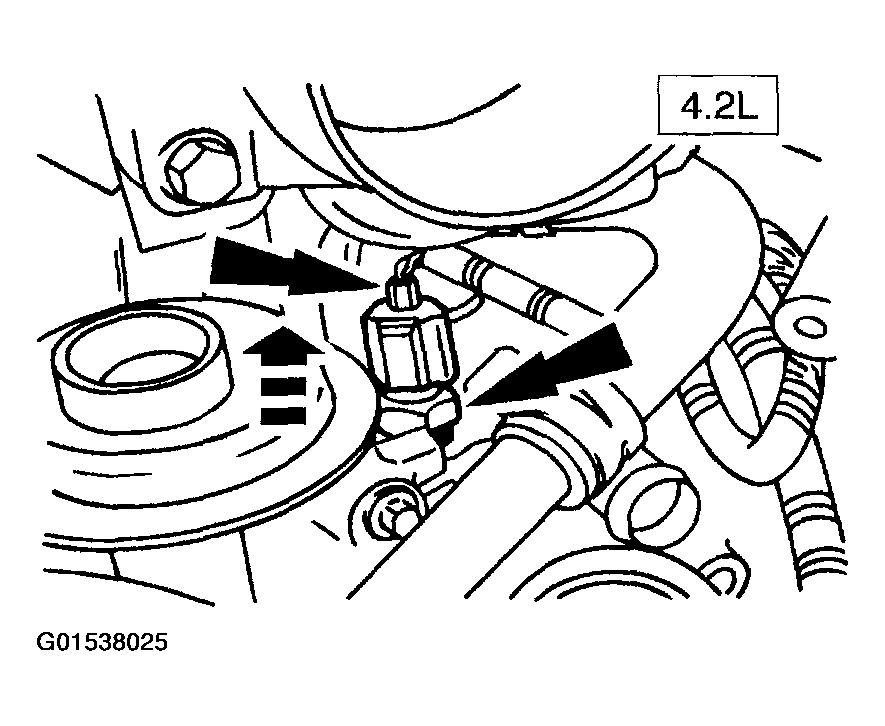

Fig 1: Disconnecting Coolant Temperature Sensor (4.2L)
Courtesy of FORD MOTOR CO.

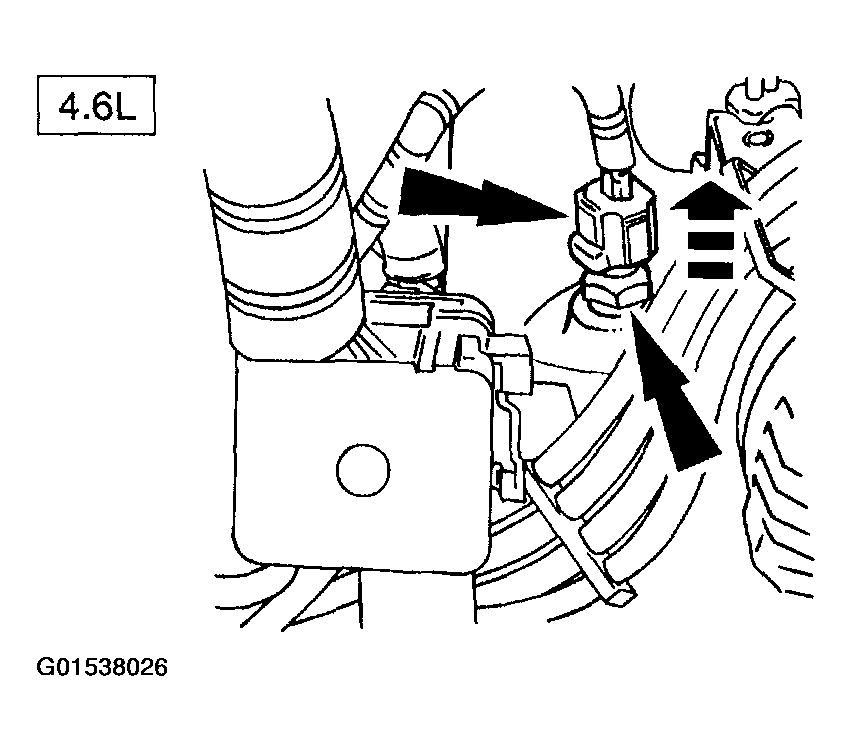

Fig 2: Disconnecting Coolant Temperature Sensor (4.6L)
Courtesy of FORD MOTOR CO.

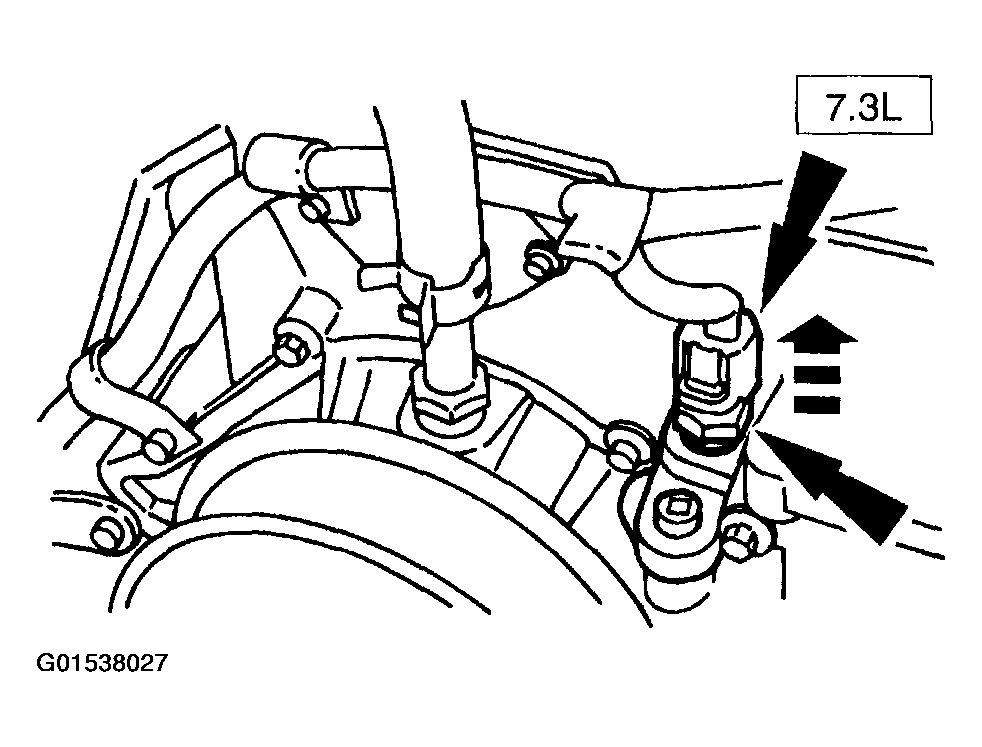

Fig 3: Disconnecting Coolant Temperature Sensor (7.3L)
Courtesy of FORD MOTOR CO.
