Sender Unit - Water Temperature Indicator: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.

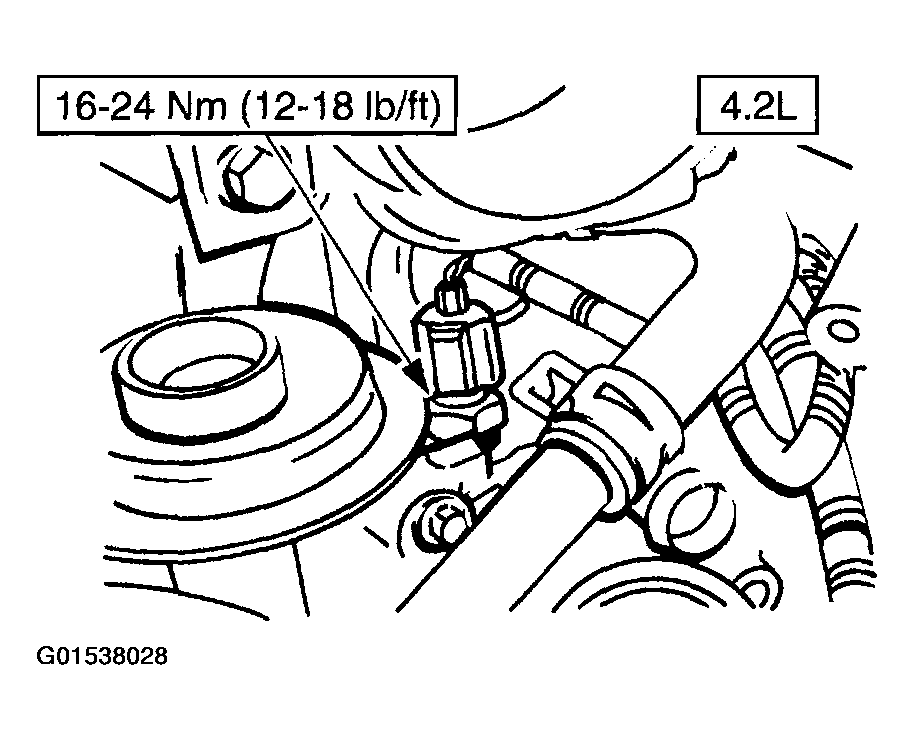

    Fig 1: Installing Coolant Temperature Sensor (4.2L)
    G01538028Courtesy of FORD MOTOR CO.

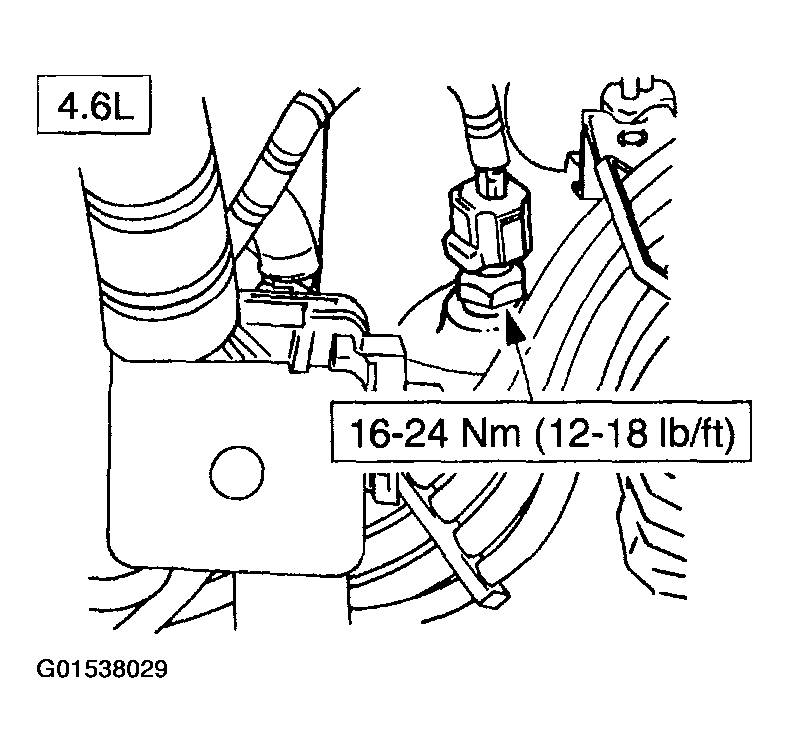

    Fig 2: Installing Coolant Temperature Sensor (4.6L)
    G01538029Courtesy of FORD MOTOR CO.

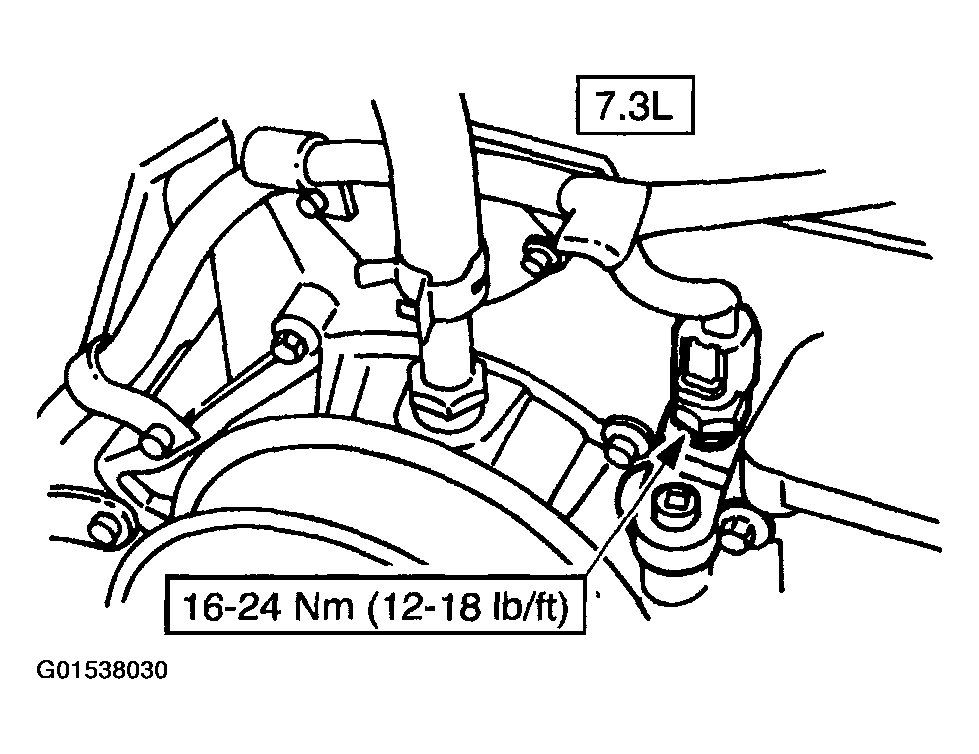

    Fig 3: Installing Coolant Temperature Sensor (7.3L)
    G01538030Courtesy of FORD MOTOR CO.
