Removal and Installation
WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
- Remove the air cleaner assembly.

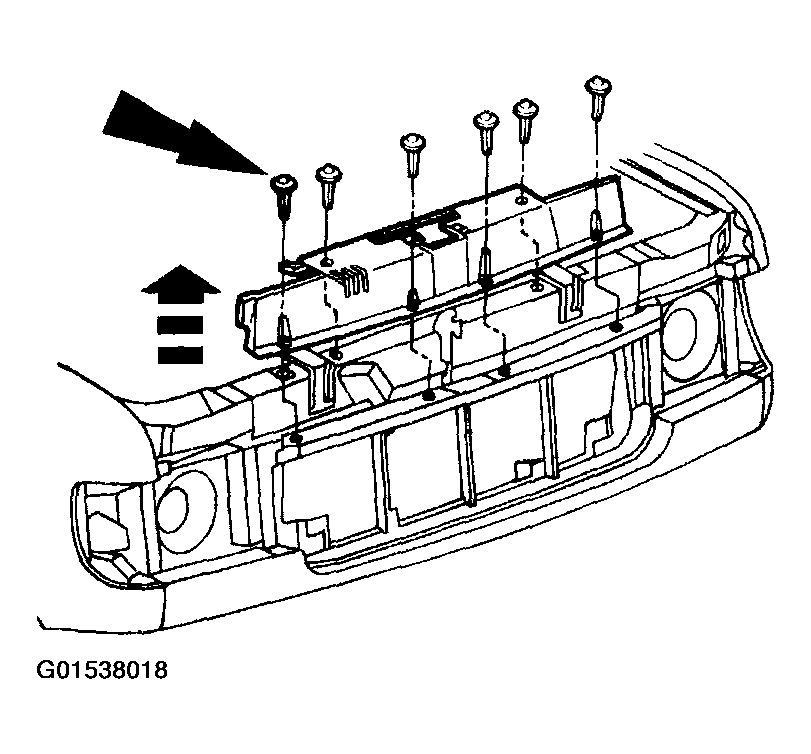

- Remove the rivet retainers and the air deflector.

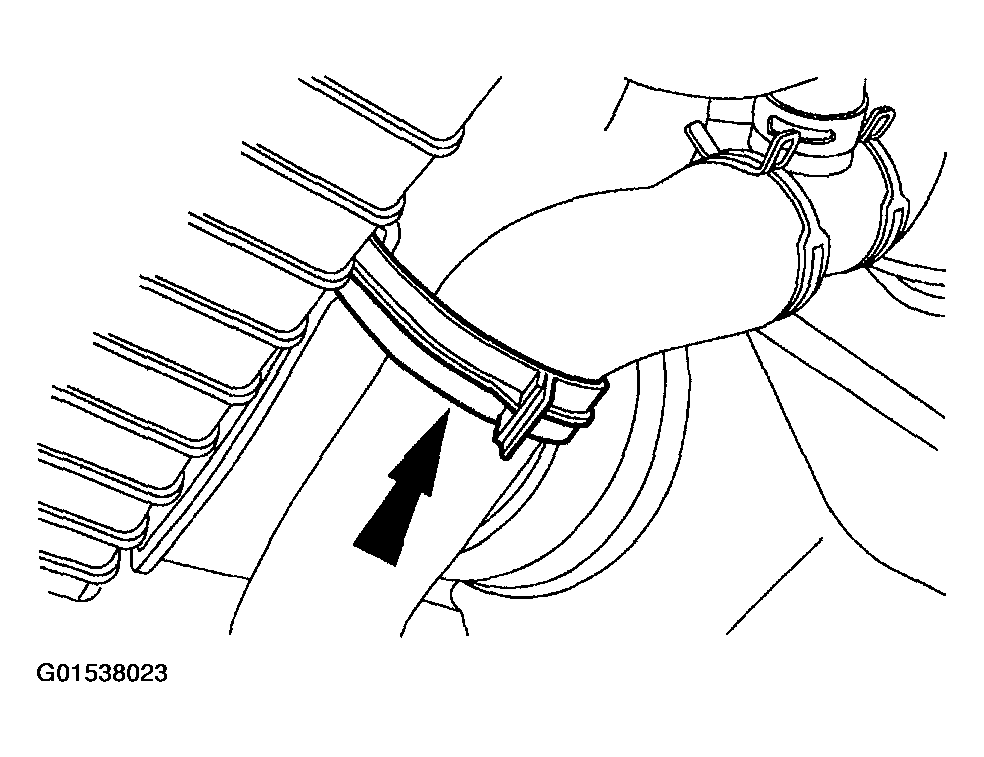

- Remove the radiator upper hose.

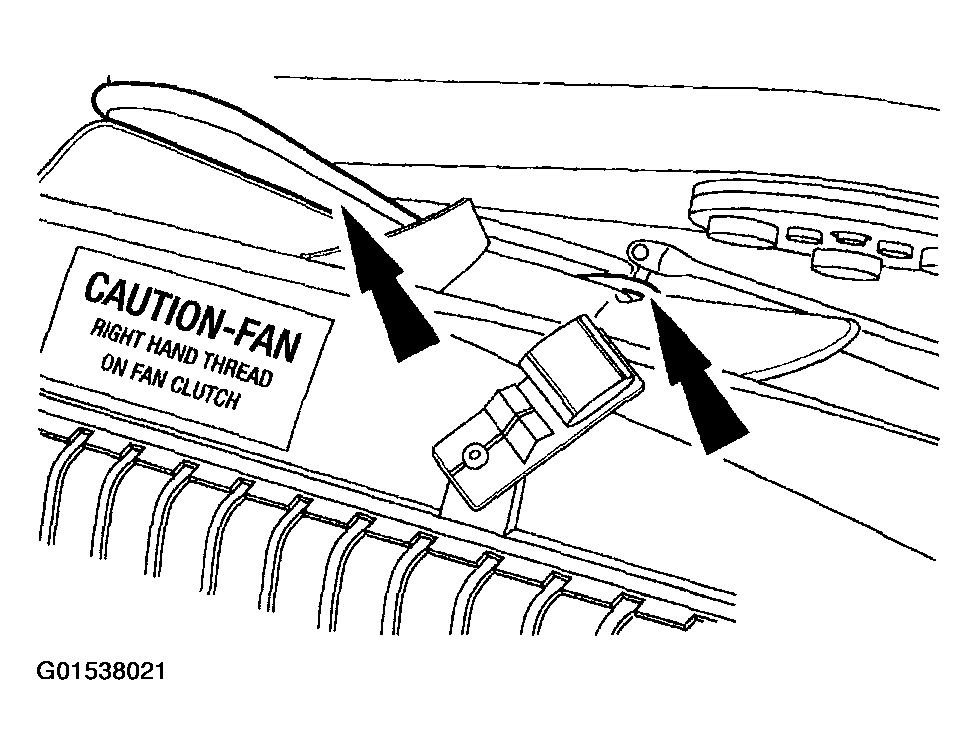

- Disconnect the overflow hose from the radiator.

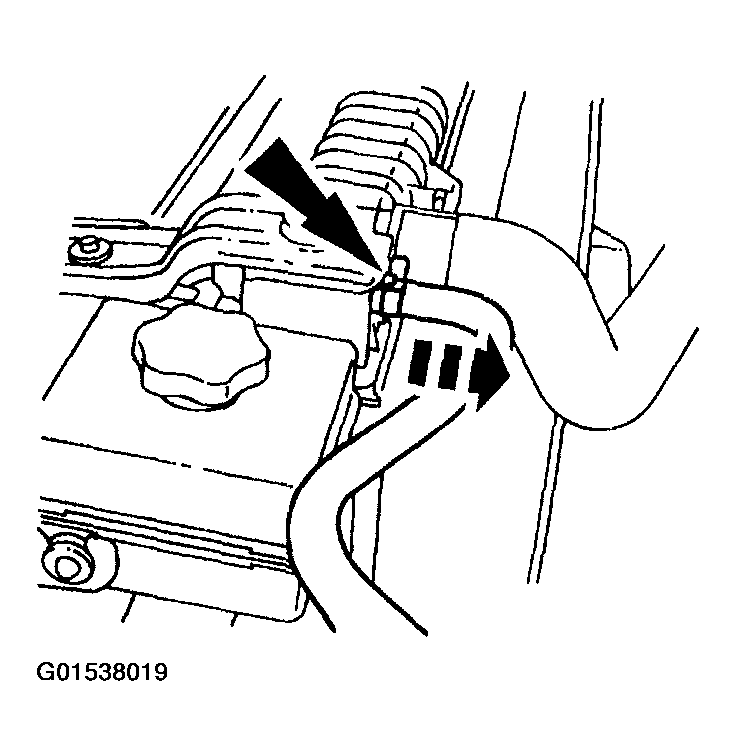

- Disconnect the coolant Gades bottle hose from the shroud.
- Using the appropriate Fan Clutch Nut Wrench and Fan Pulley Holding Wrench, loosen the fan clutch.
- Carefully rotate the fan and fan clutch assembly counterclockwise until the assembly is free from the water pump. Place the fan and fan clutch into the shroud opening.

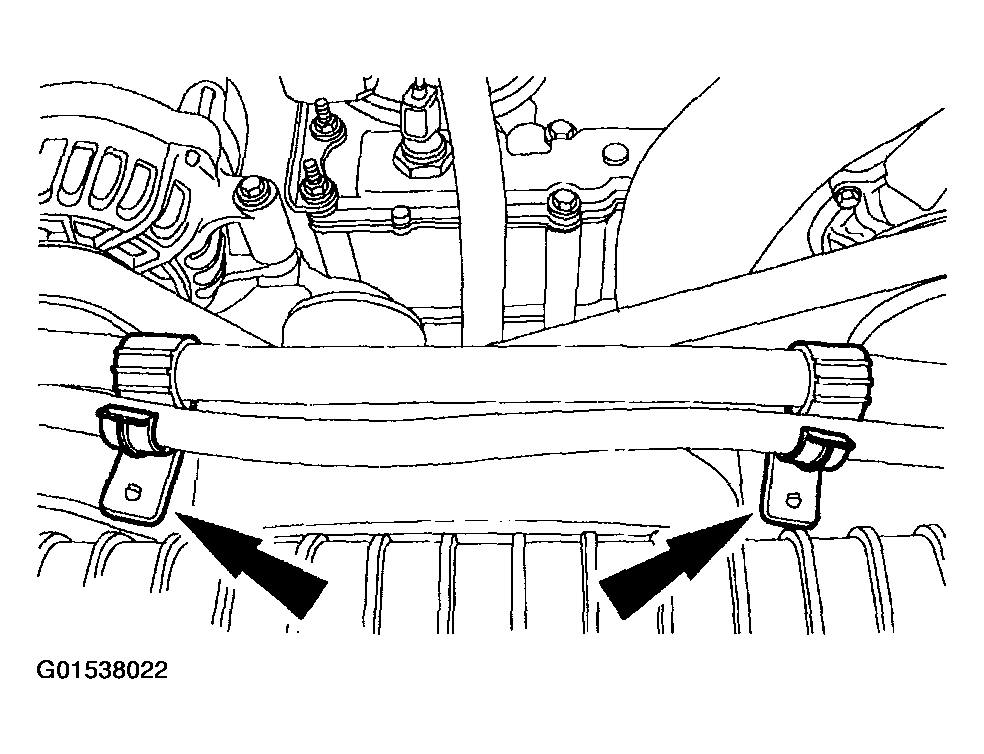

- Disconnect the retaining clips from the shroud.

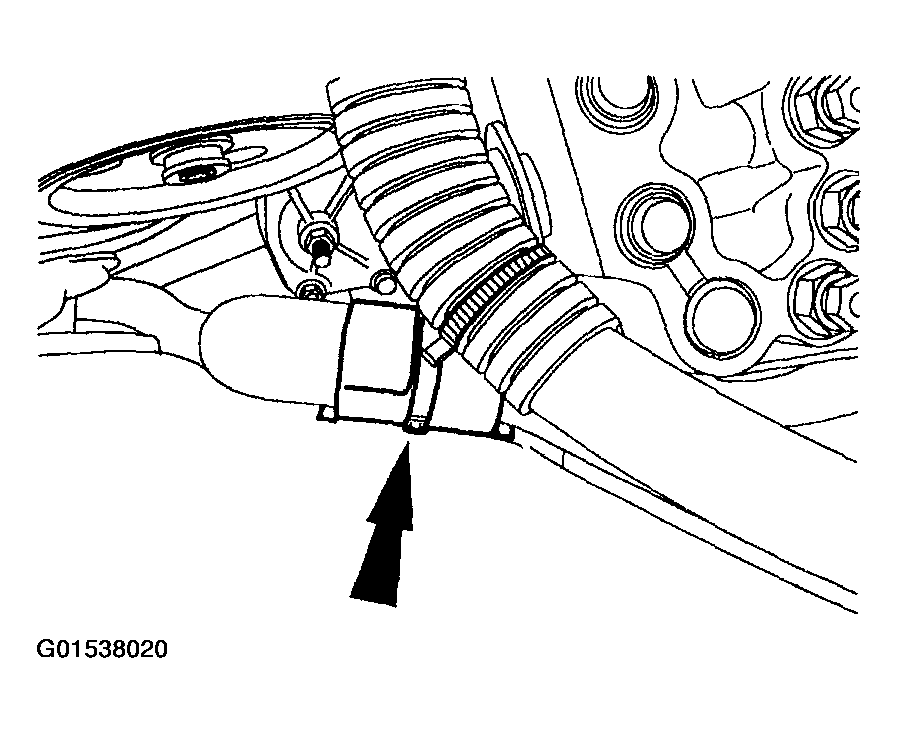

- Disconnect the lower radiator retaining clamp from the shroud.

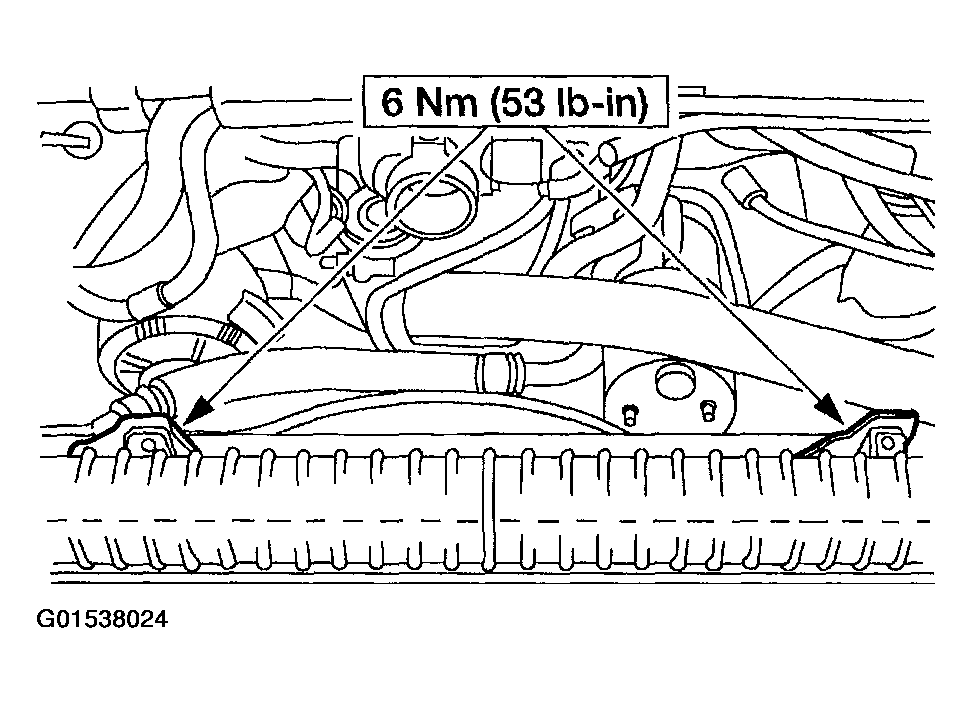

- Remove the mounting bolts and the fan, fan clutch and shroud.
- To install, reverse the removal procedure.
- Install an appropriately sized worm drive-type clamp in place of the constant tension clamp.
NOTE:
The fan, fan clutch and shroud must be removed and installed together due to insufficient clearance to remove them separately.
CAUTION:
The clutch assembly nut has a right-hand thread and must be rotated counterclockwise to remove it.
NOTE:
Two people are needed to loosen the fan clutch pulley. From under the vehicle, have one person hold the fan pulley. The holding tool must be located at the 7 o'clock position. From the engine compartment, the second person can now loosen the fan clutch. The fan clutch nut wrench has to be located at the 12 o'clock position.
CAUTION:
Use extreme care when removing or installing the fan, fan clutch and shroud. Failure to do so will cause damage to the radiator.
