Engine Cooling Pinpoint Test A: Loss Of Coolant Symptom Diagnostic Chart

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

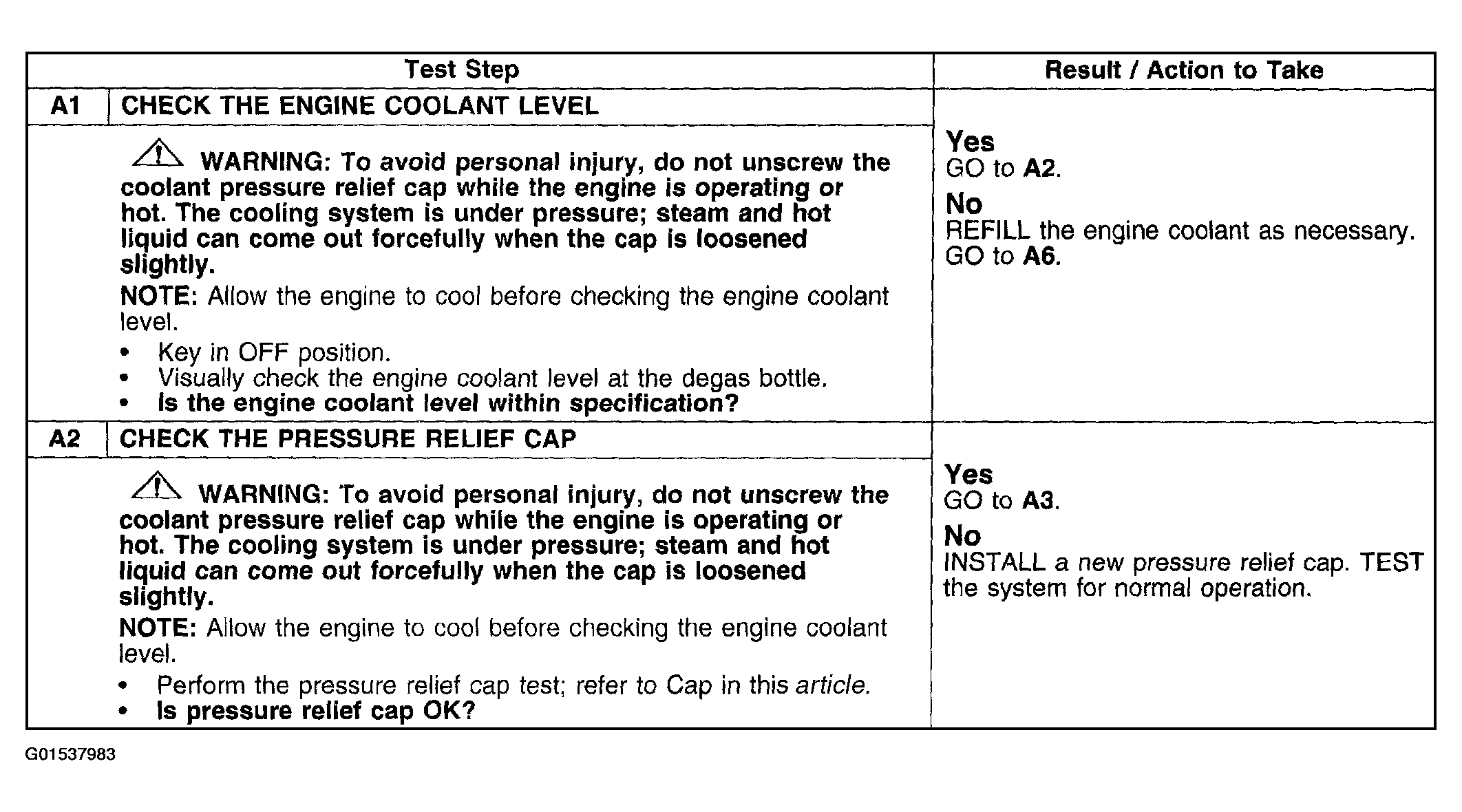

Fig 1: Engine Cooling Pinpoint Test A: Loss Of Coolant Symptom Diagnostic Chart (A1-A2)
G01537983Courtesy of FORD MOTOR CO.

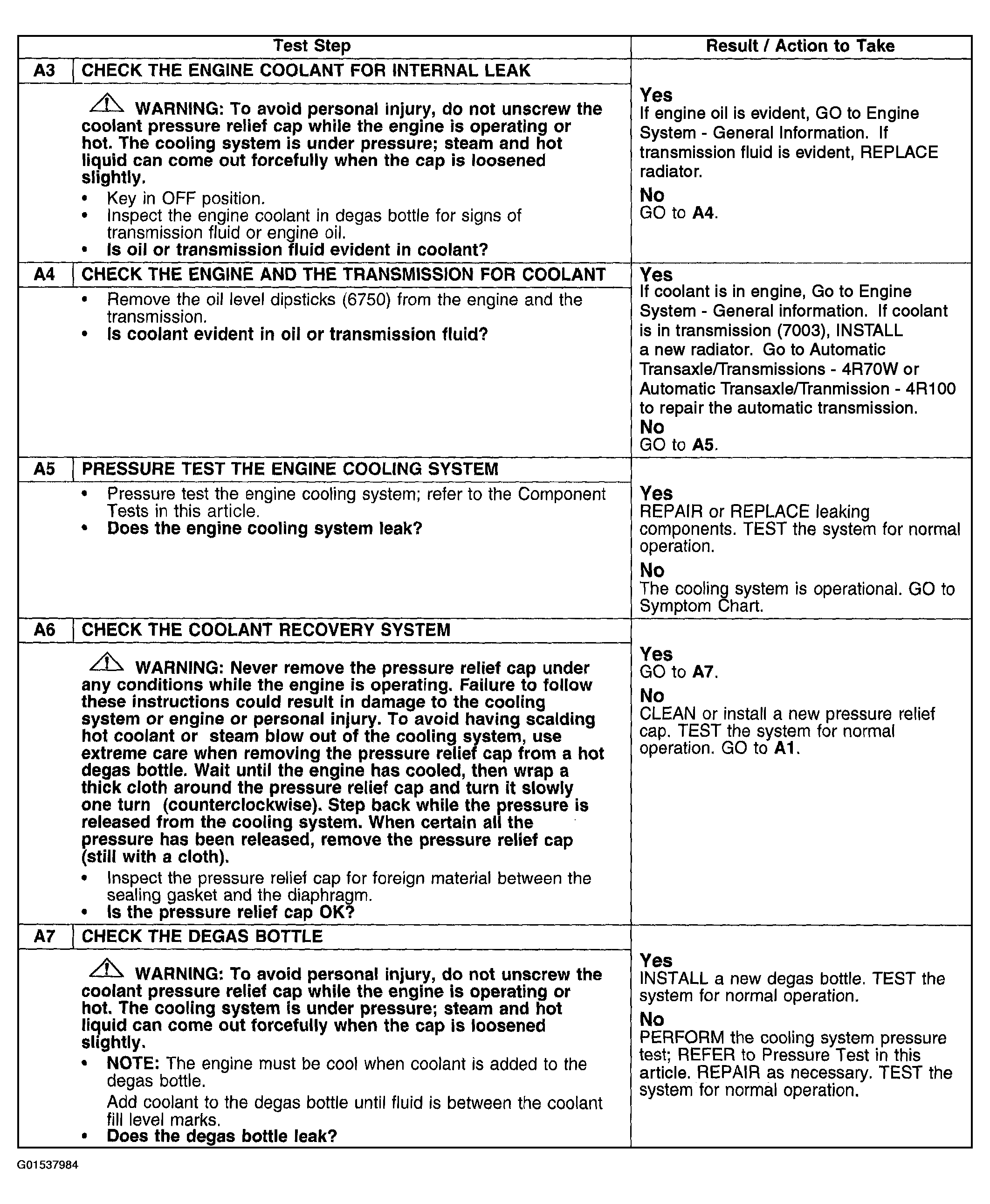

Fig 2: Engine Cooling Pinpoint Test A: Loss Of Coolant Symptom Diagnostic Chart (A3-A7)
G01537984Courtesy of FORD MOTOR CO.
