Removal and Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

ALL VEHICLES

Disconnect both battery ground cables. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the air cleaner assembly.
Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
E-550 ONLY
Disconnect the vacuum hoses. Position the hoses out of the way.

Fig 1: Disconnecting Vacuum Hoses
Courtesy of FORD MOTOR CO.

ALL VEHICLES
Remove the oil fill tube.

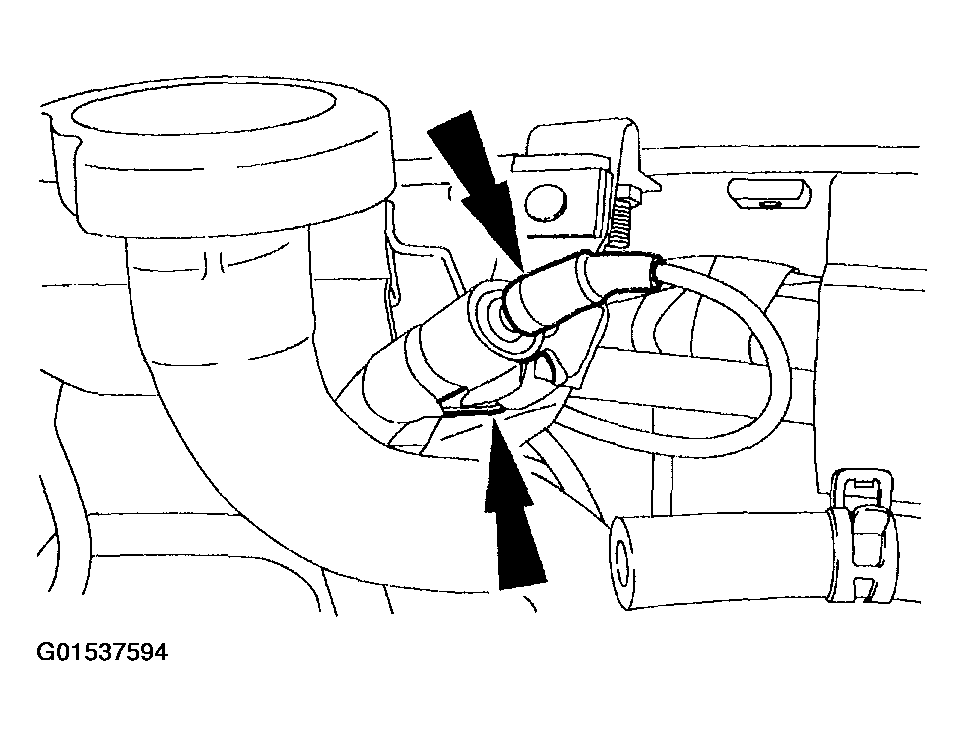

Fig 2: Removing Oil Fill Tube
Courtesy of FORD MOTOR CO.
Remove the inlet duct, tube and bracket assembly.
Disconnect the fuel injector/glow plug nine pin connector.
1. Disconnect the retaining clip.
2. Disconnect the nine pin connector.

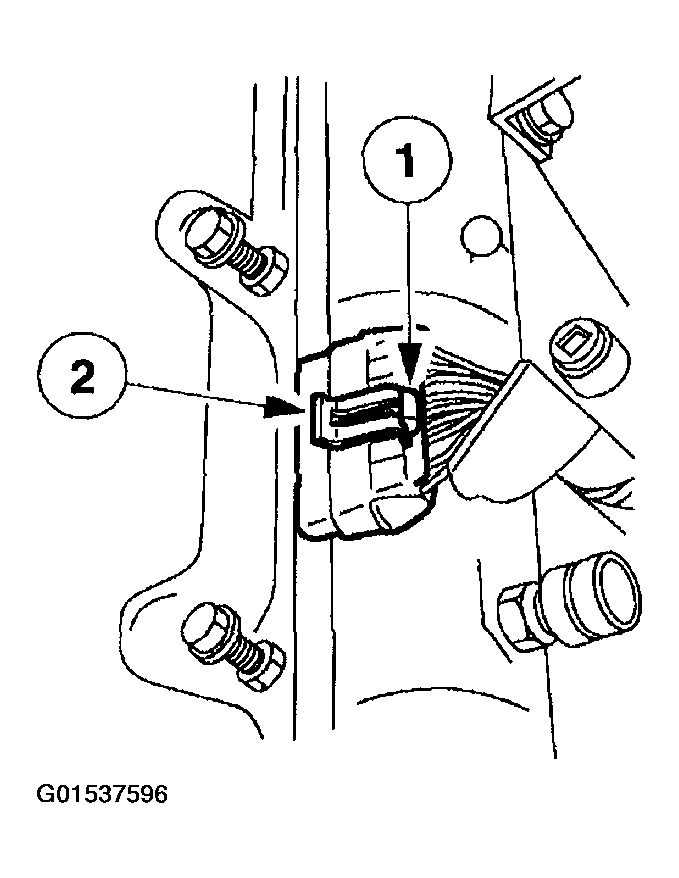

Fig 3: Disconnecting Fuel Injector/Glow Plug Nine Pin Connector
Courtesy of FORD MOTOR CO.
Remove the valve cover.
1. Remove the 10 bolts.
2. Remove the valve cover.

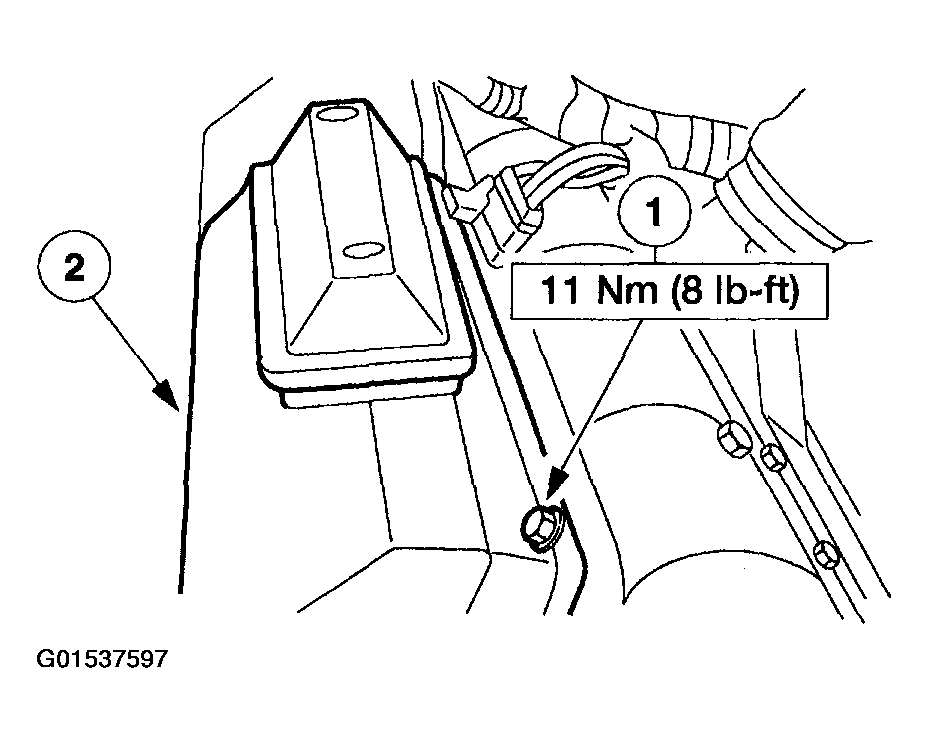

Fig 4: Removing Valve Cover
Courtesy of FORD MOTOR CO.
Disconnect the electrical connectors from the fuel injectors and the glow plugs.
1. Disconnect the four electrical leads from the glow plugs.
2. Disconnect the four electrical connectors from the fuel injectors.

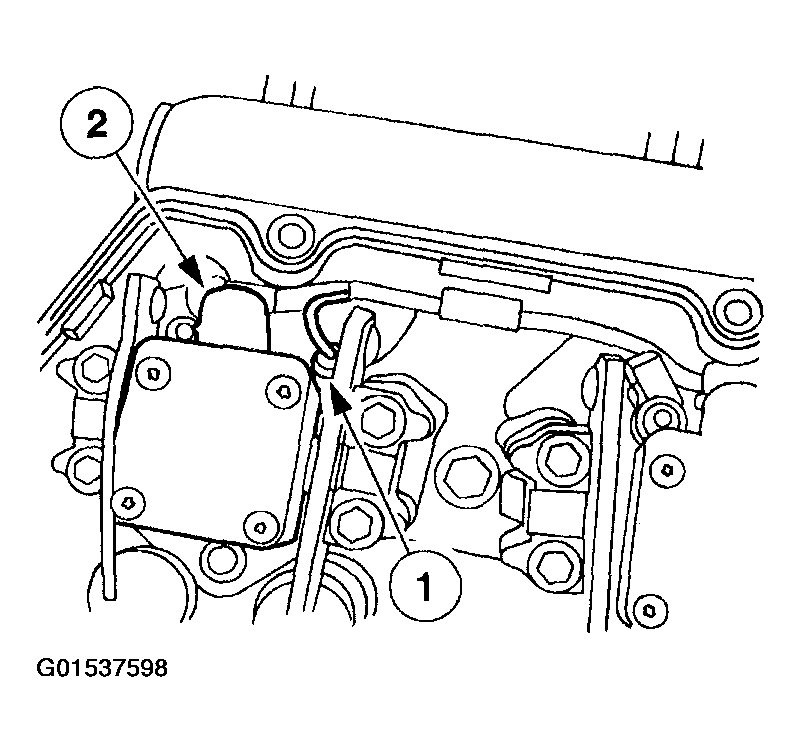

Fig 5: Disconnecting Electrical Connectors From Fuel Injectors And Glow Plugs
Courtesy of FORD MOTOR CO.
Remove the valve cover gasket.
To install, reverse removal procedure.
