Valve Cover - Right: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cables. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  3. Remove the air cleaner assembly and air inlet tube.
  4. Remove the resonator bracket and the resonator assembly.
  5. Remove the oil level indicator tube.
    1. Remove the nut.
    2. Pull upward and remove the tube.

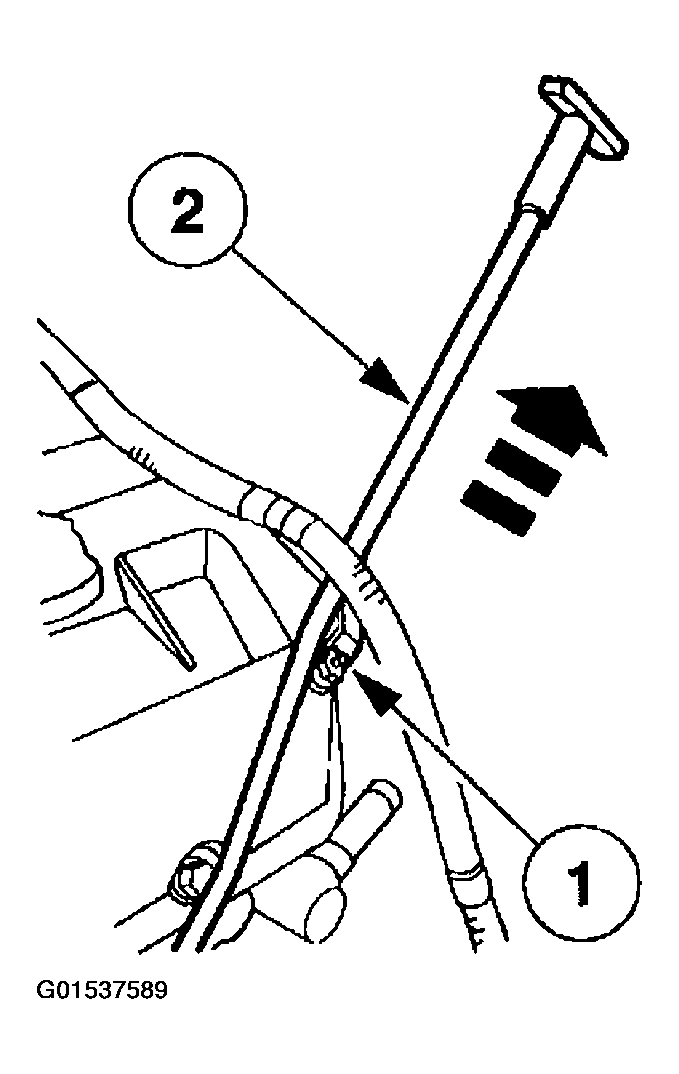

    Fig 1: Removing Oil Level Indicator Tube
    G01537589Courtesy of FORD MOTOR CO.
  6. Disconnect the fuel injector/glow plug jumper nine pin electrical connector.
    1. Disconnect the retaining clip.
    2. Disconnect the nine pin connector.

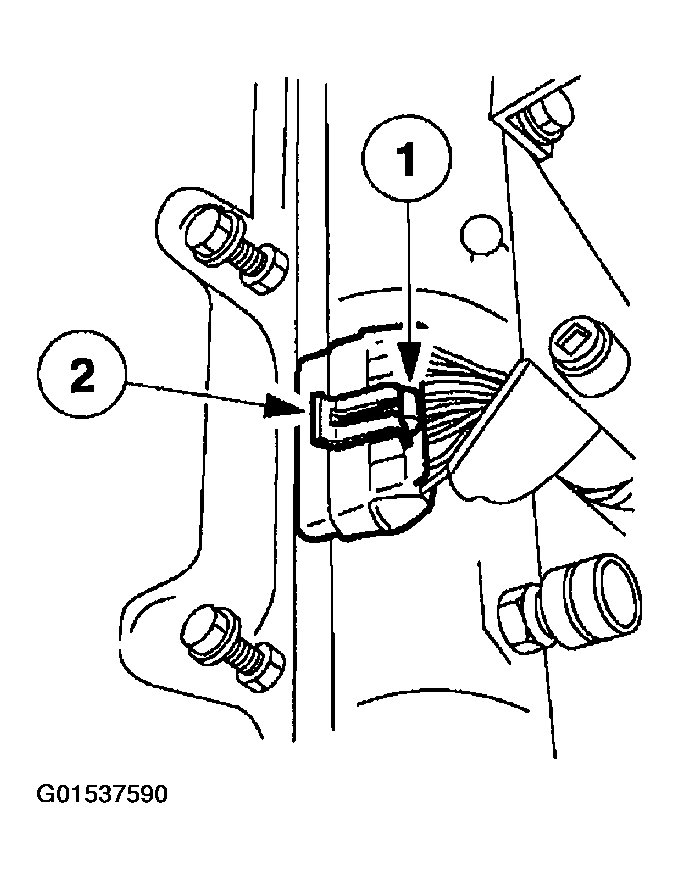

    Fig 2: Disconnecting Fuel Injector/Glow Plug Jumper Nine Pin Electrical Connector
    G01537590Courtesy of FORD MOTOR CO.
  7. Remove the valve cover.
    1. Remove the nut and the resonator bracket.
    2. Remove the 10 bolts.
    3. Remove the valve cover.

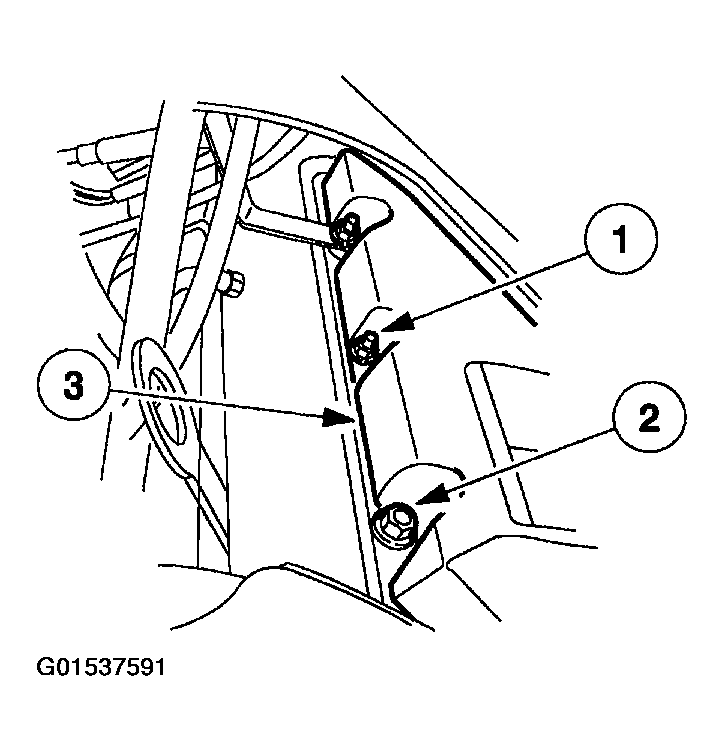

    Fig 3: Removing Valve Cover
    G01537591Courtesy of FORD MOTOR CO.
  8. Remove the valve cover gasket.
    1. Disconnect the four electrical leads from the glow plugs.
    2. Disconnect the four electrical connectors from the fuel injectors, and remove the gasket.

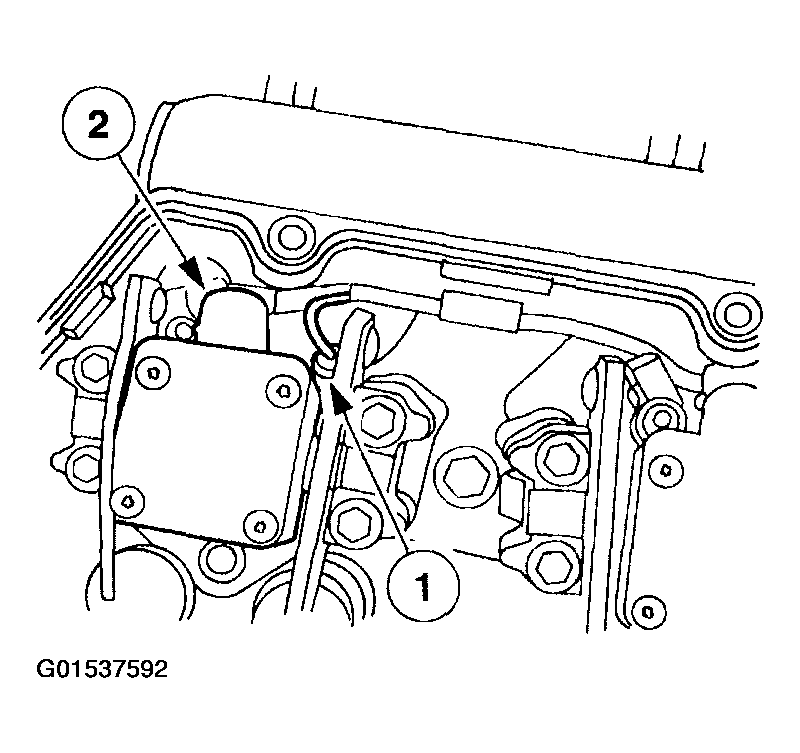

    Fig 4: Removing Valve Cover Gasket
    G01537592Courtesy of FORD MOTOR CO.
