Removal & Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the plug from the oil reservoir. See Figure. Using the Oil Suction Gun (303-D104, D94T-9000-A), drain the high-pressure oil pump reservoir.
  2. Disconnect the electrical connector from the exhaust backpressure sensor. Remove the fuel filter retaining bolts and disconnect the fuel filter assembly from the engine front cover. See Fig 1. Disconnect the electrical connector from the oil temperature sensor. See Fig 2.
  3. Disconnect the electrical connector from the oil pressure switch. See Fig 3. Remove the bolts, oil reservoir and seal from the engine front cover. See Fig 4.
  4. To install, reverse removal procedure. Position the seal on the engine front cover. See Fig 5. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .

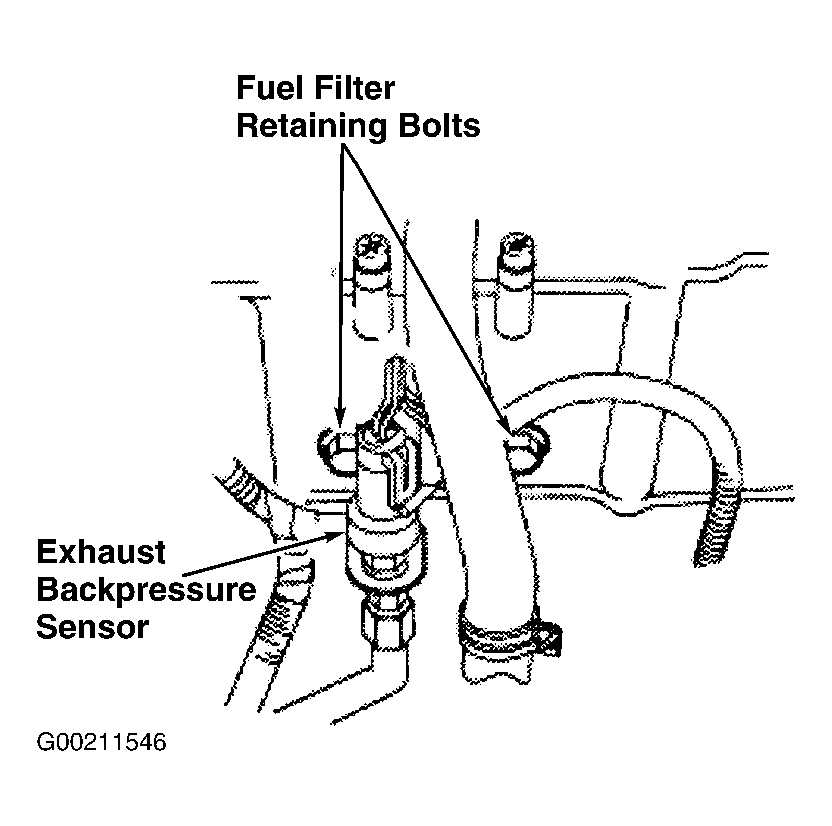

Fig 1: Removing & Installing Fuel Filter Retaining Bolts
G00211546Courtesy of FORD MOTOR CO.

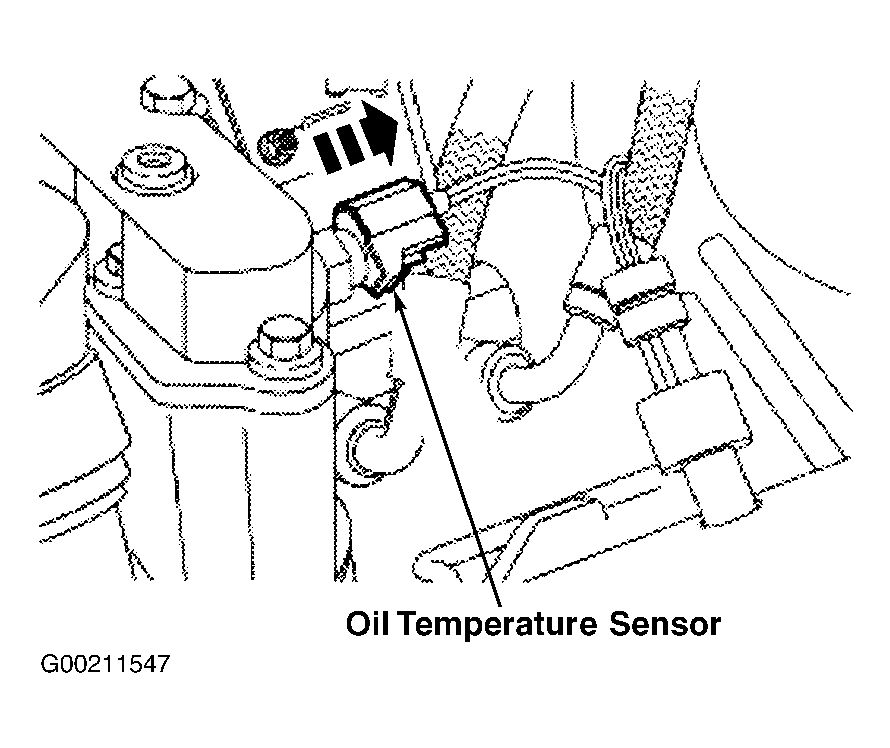

Fig 2: Locating Oil Temperature Sensor
G00211547Courtesy of FORD MOTOR CO.

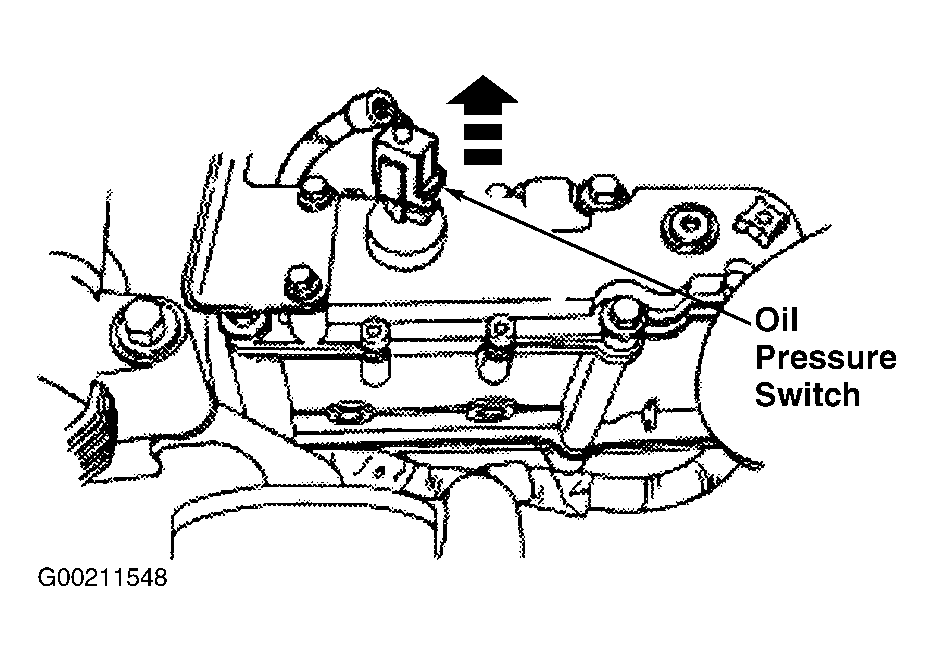

Fig 3: Locating High Pressure Oil Pressure Switch
G00211548Courtesy of FORD MOTOR CO.

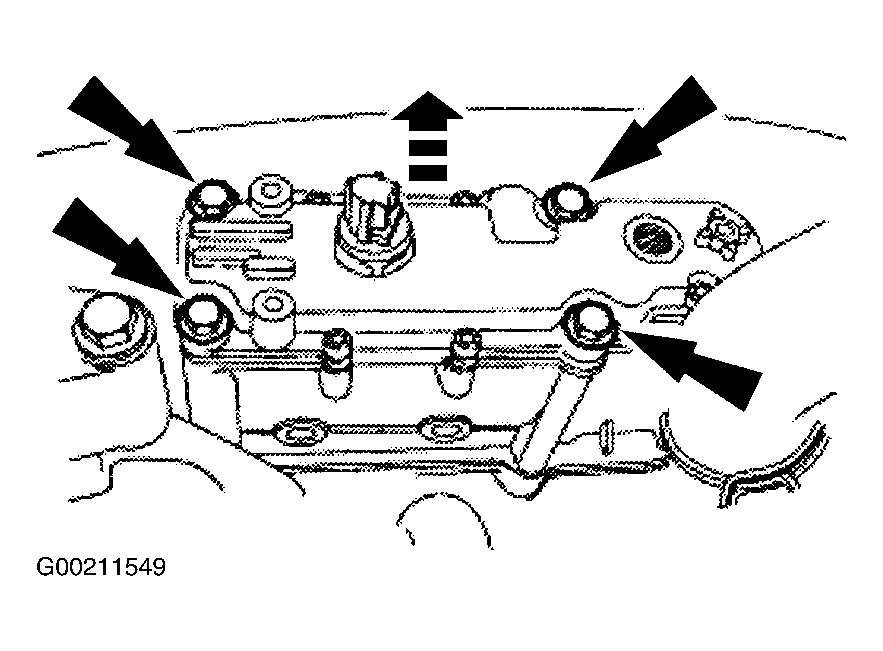

Fig 4: Removing & Installing Oil Reservoir
G00211549Courtesy of FORD MOTOR CO.

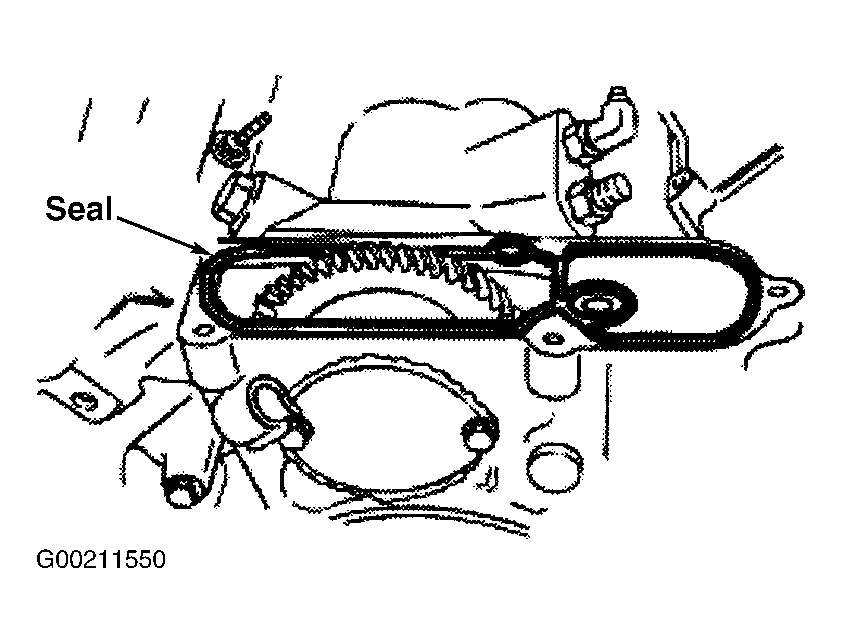

Fig 5: Installing Oil Reservoir Seal
G00211550Courtesy of FORD MOTOR CO.
