Removal (Push Lock Coupling)

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

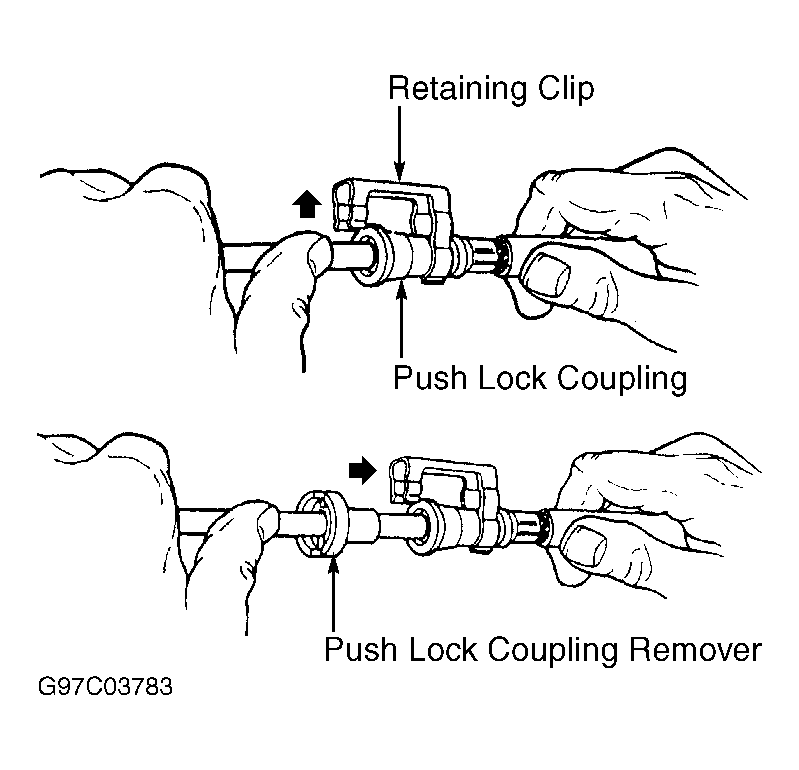

  1. Relieve fuel pressure. See RELIEVING FUEL PRESSURE . Lift retaining clip upward from push lock coupling. See Figure. Push Lock Coupling Remover (T90T-9550-B) for 5/16" fuel line, or (T90T-9550-C) for 3/8" fuel line is used to release push lock coupling.
  2. Install push lock coupling remover on fuel line. See Figure. Slide push lock remover into female fitting on push lock coupling to release retaining fingers on push lock coupling. See Figure. Pull fuel lines apart. Remove push lock coupling remover.
