Exhaust Manifold - Left: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  3. Raise and support the vehicle.
  4. Remove the two nuts and bolts retaining the turbocharger exhaust inlet pipe to the exhaust manifold.

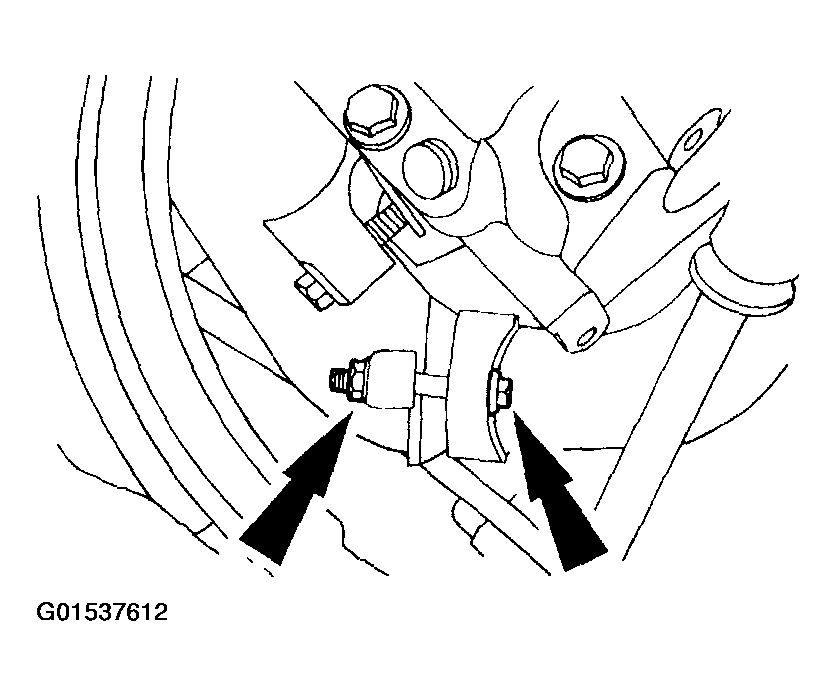

    Fig 1: Removing Nuts And Bolts Retaining Turbocharger Exhaust Inlet Pipe To Exhaust Manifold (Left)
    G01537612Courtesy of FORD MOTOR CO.
  5. Lower the vehicle.
  6. Remove the eight exhaust manifold bolts and the exhaust manifold.
    Fig 2: Removing Exhaust Manifold
    G01537613Courtesy of FORD MOTOR CO.
  7. Clean the exhaust manifold mating surfaces.
  8. Using a straightedge, check the exhaust manifold surfaces for warpage.
