Exhaust Manifold - Left: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply anti-seize compound to the exhaust manifold bolt threads.
  2. Install the exhaust manifold and retaining bolts.
    Fig 1: Installing Exhaust Manifold And Retaining Bolts
    G01537614Courtesy of FORD MOTOR CO.
  3. Raise and support the vehicle.
  4. Install the nuts and bolts retaining the turbocharger exhaust inlet pipe to the exhaust manifold.

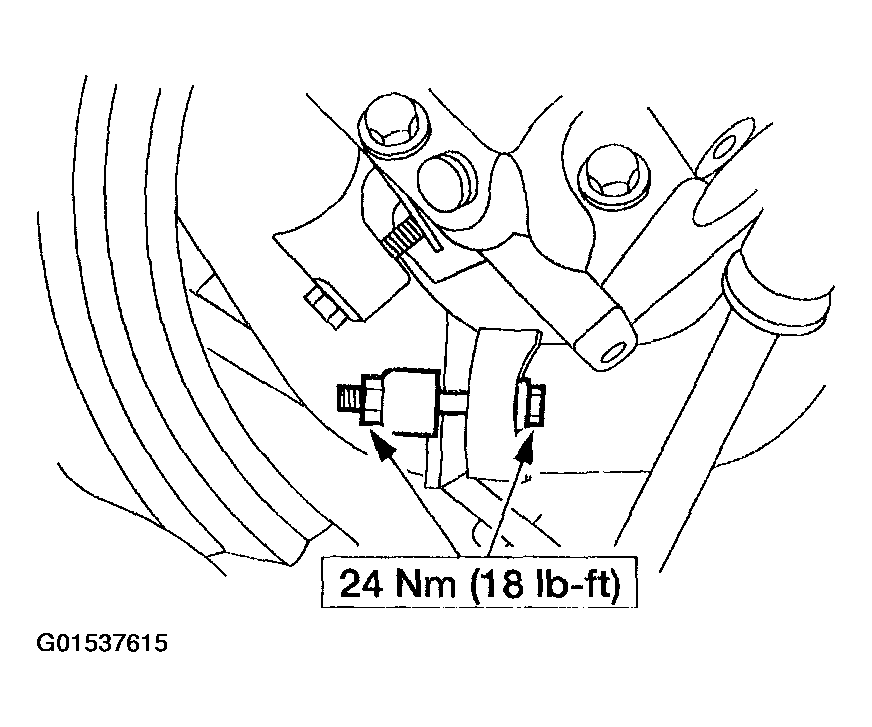

    Fig 2: Installing Nuts And Bolts Retaining Turbocharger Exhaust Inlet Pipe To Exhaust Manifold
    G01537615Courtesy of FORD MOTOR CO.
  5. Lower the vehicle.
  6. Install the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  7. Reconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
