Valve Cover RH: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and can be ignited, resulting in possible personal injury.

WARNING: Fuel in the fuel system remains under high pressure even when the engine is not running.

Remove the intake manifold. For additional information, refer to INTAKE MANIFOLD .
Remove the bolt, the clamp and the oil filler assembly.

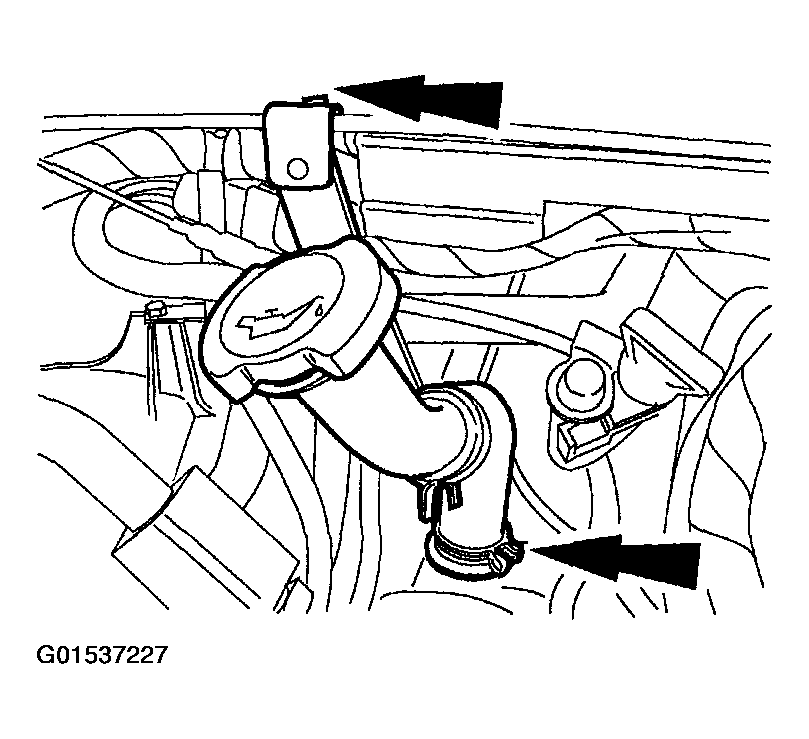

Fig 1: Removing Clamp And Oil Filler Assembly
Courtesy of FORD MOTOR CO.
Disconnect the 42-pin and the two 16-pin electrical connectors. Remove the ground strap retaining nut and the wiring harness mounting bracket.

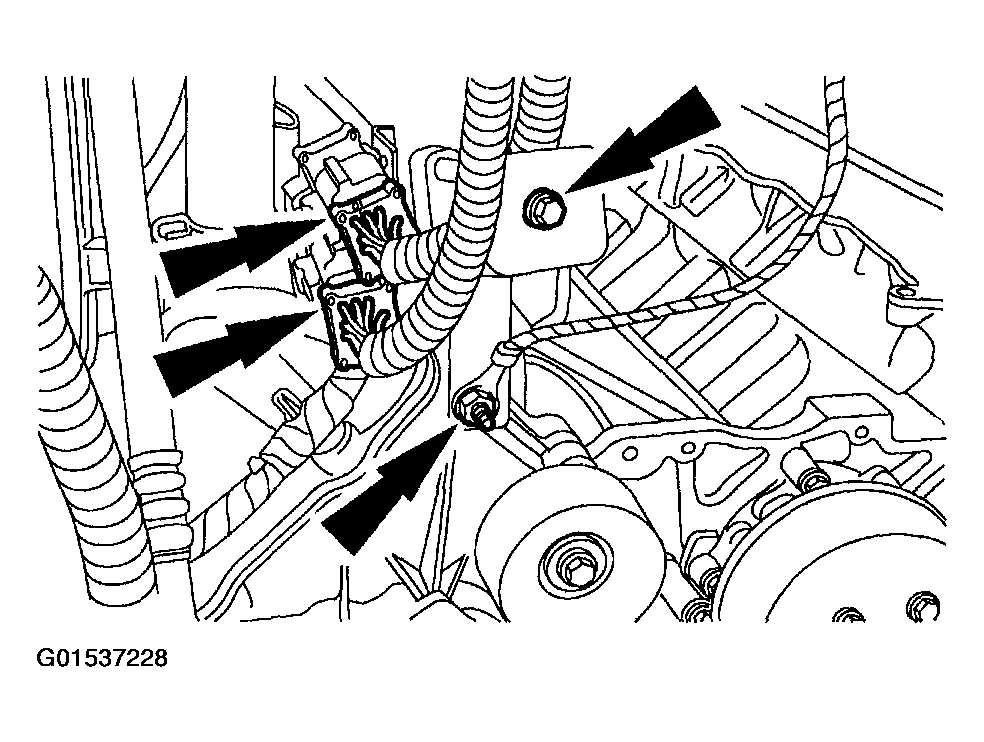

Fig 2: Disconnecting 42-Pin And 16-Pin Electrical Connectors
Courtesy of FORD MOTOR CO.
Unclip the wiring harness from the valve cover studs.

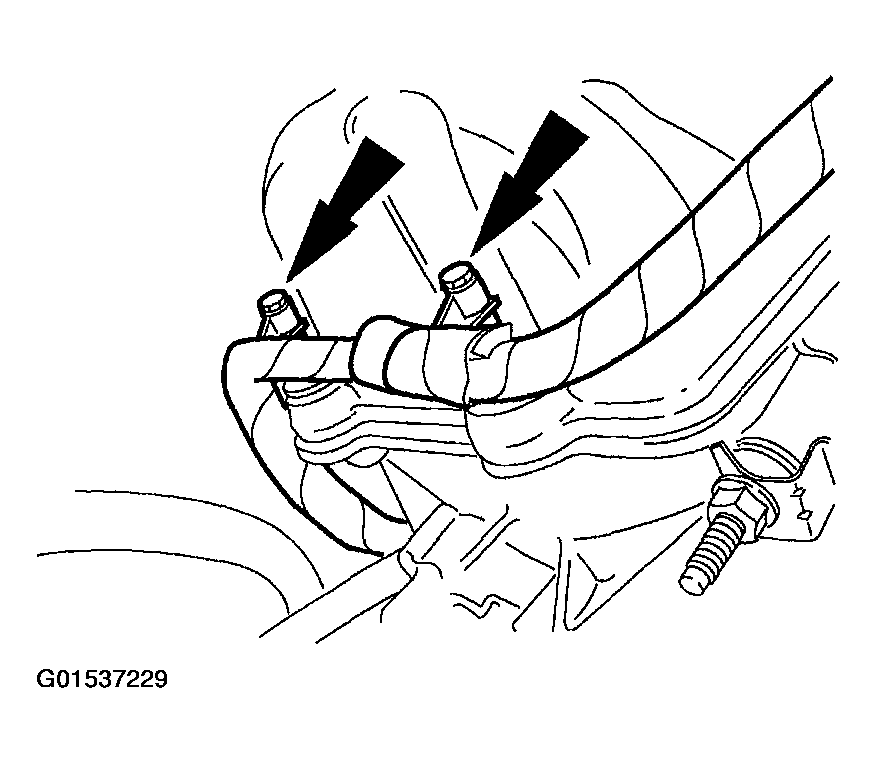

Fig 3: Unclipping Wiring Harness From Valve Cover Studs
Courtesy of FORD MOTOR CO.

NOTE: The bolts are a part of the valve cover and are not to be removed.

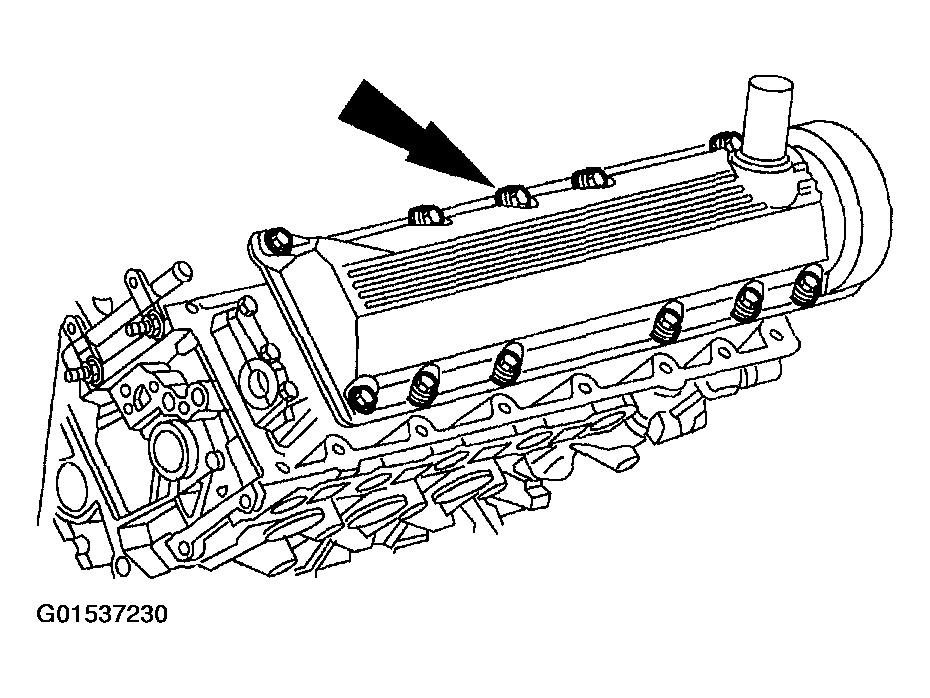

Fig 4: Removing Valve Cover

Courtesy of FORD MOTOR CO.

Remove the valve cover.
- Fully loosen the 14 bolts, and remove the valve cover and the valve cover gasket.
