Oil Pan: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the intake manifold. For additional information, refer to INTAKE MANIFOLD .
Remove the fan shroud and the engine cooling fan. For additional information, refer to ENGINE COOLING .

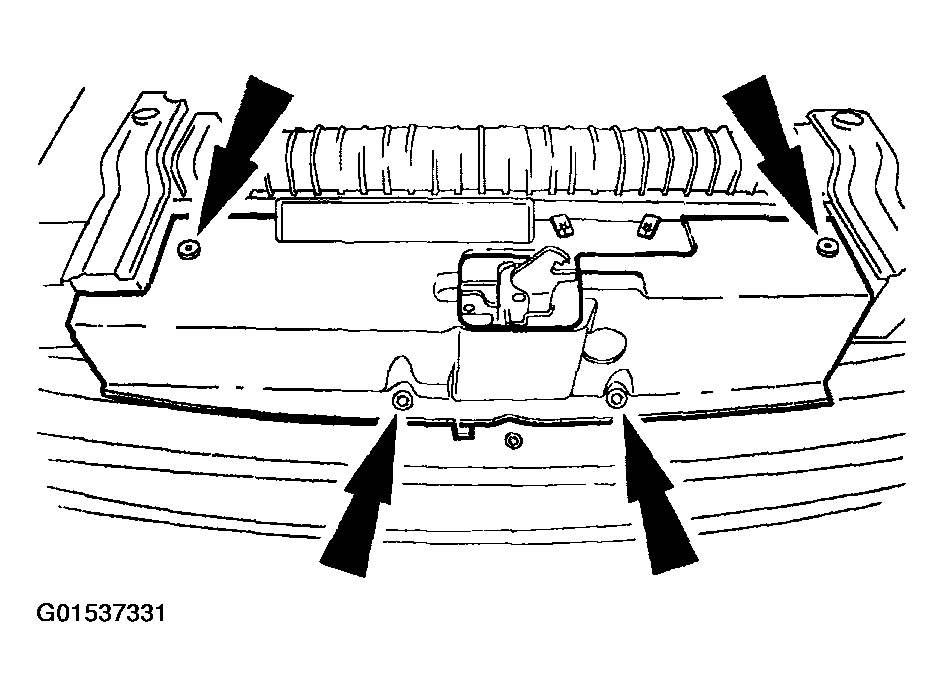

Remove the retainers and the shield.

Fig 1: Removing Shield Retainers
Courtesy of FORD MOTOR CO.
Remove the nut retaining the transmission filler tube at the rear of the RH cylinder head and position the tube aside.

Fig 2: Removing Nut Retaining Transmission Filler Tube At Rear Of RH Cylinder Head
Courtesy of FORD MOTOR CO.

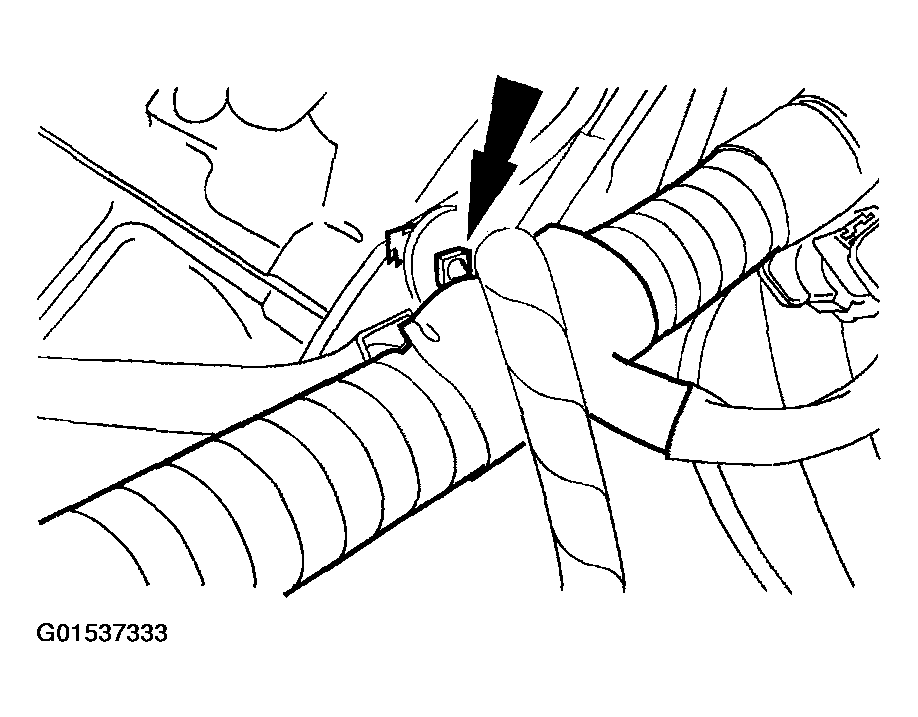

Detach the wiring harness retainer.

Fig 3: Detaching Wiring Harness Retainer
Courtesy of FORD MOTOR CO.

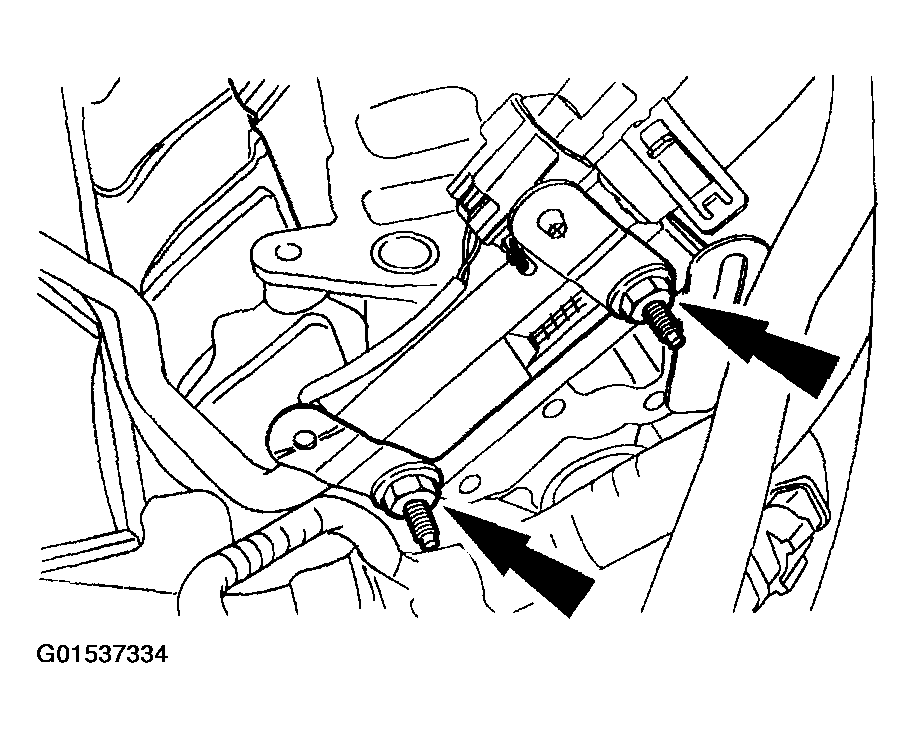

Remove the stud bolts.

Fig 4: Removing Stud Bolts
Courtesy of FORD MOTOR CO.

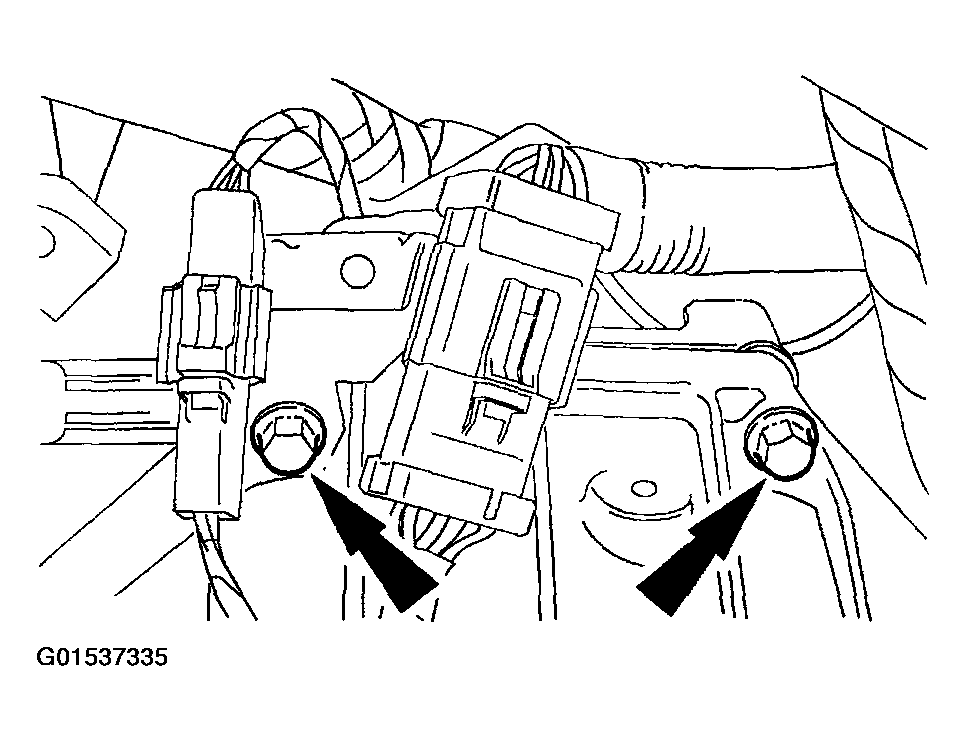

Remove the two transmission-to-engine bolts.

Fig 5: Removing Transmission-To-Engine Bolts
Courtesy of FORD MOTOR CO.
Assemble the special tools.

Fig 6: Assembling Special Tools
Courtesy of FORD MOTOR CO.

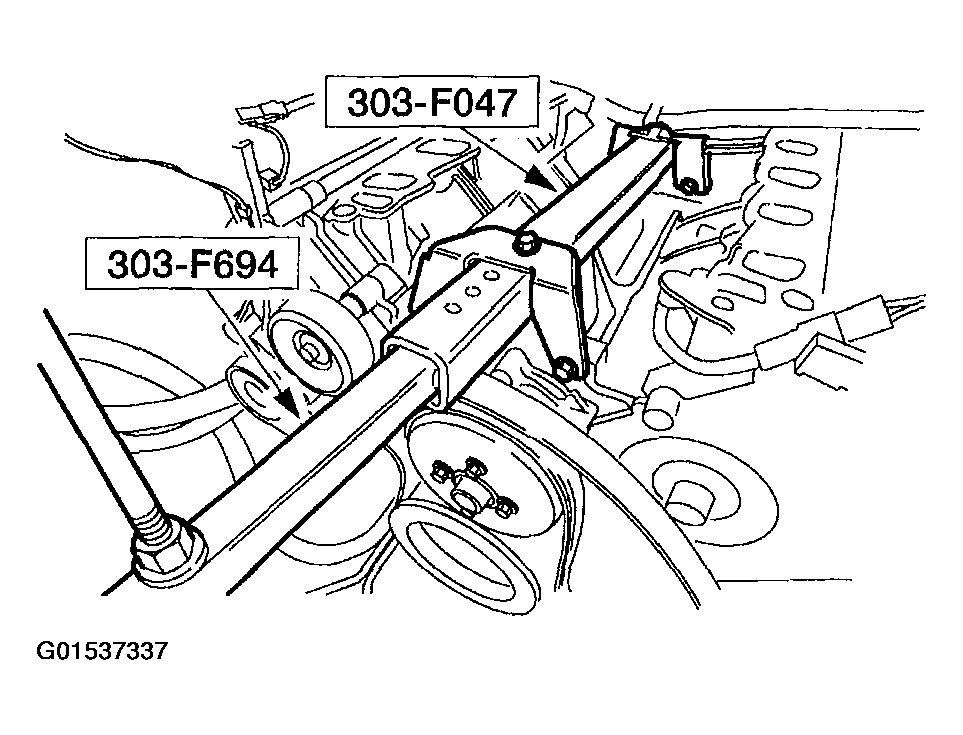

Install the special tools.

Fig 7: Installing Special Tools
Courtesy of FORD MOTOR CO.

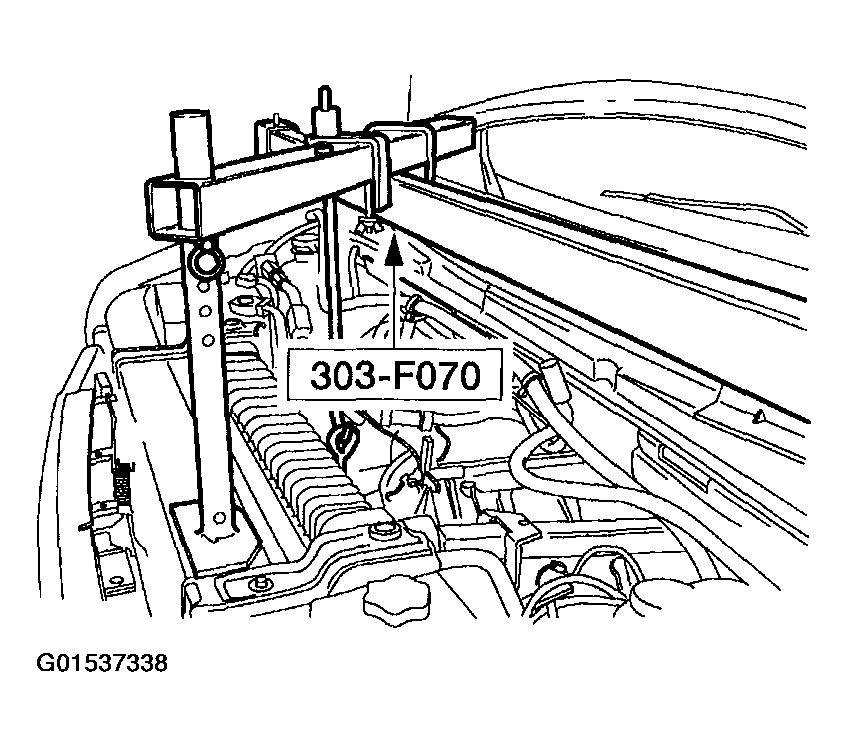

Install the special tool and support the engine.

Fig 8: Installing Special Tool And Supporting Engine
Courtesy of FORD MOTOR CO.
Raise and support the vehicle.
Drain the engine oil and remove the oil filter.

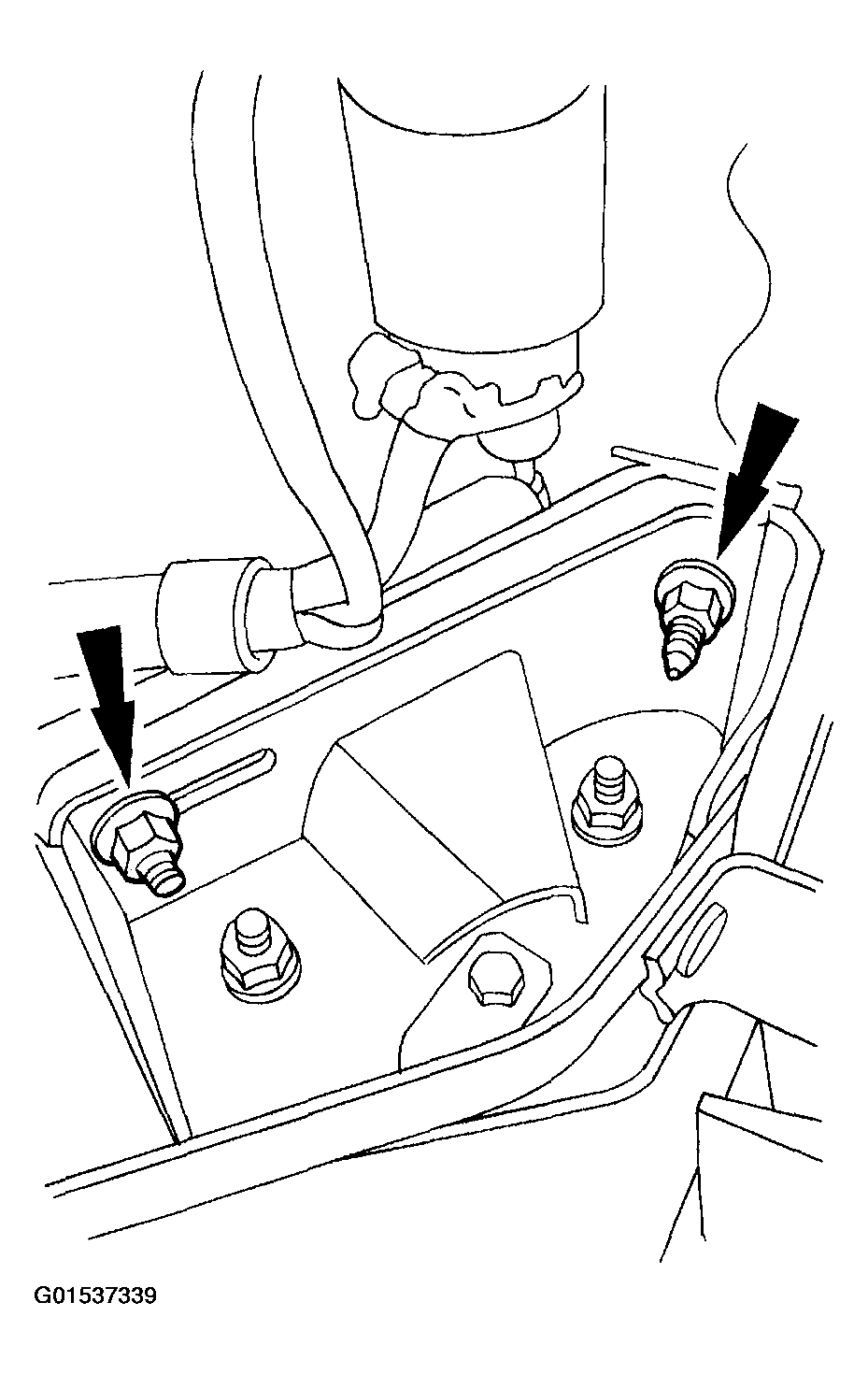

NOTE: The RH is shown, LH is similar.

Fig 9: Removing Nuts Retaining Front Engine Support Insulator To Front Engine Support Bracket

Courtesy of FORD MOTOR CO.

Remove the nuts retaining the front engine support insulator to the front engine support bracket.

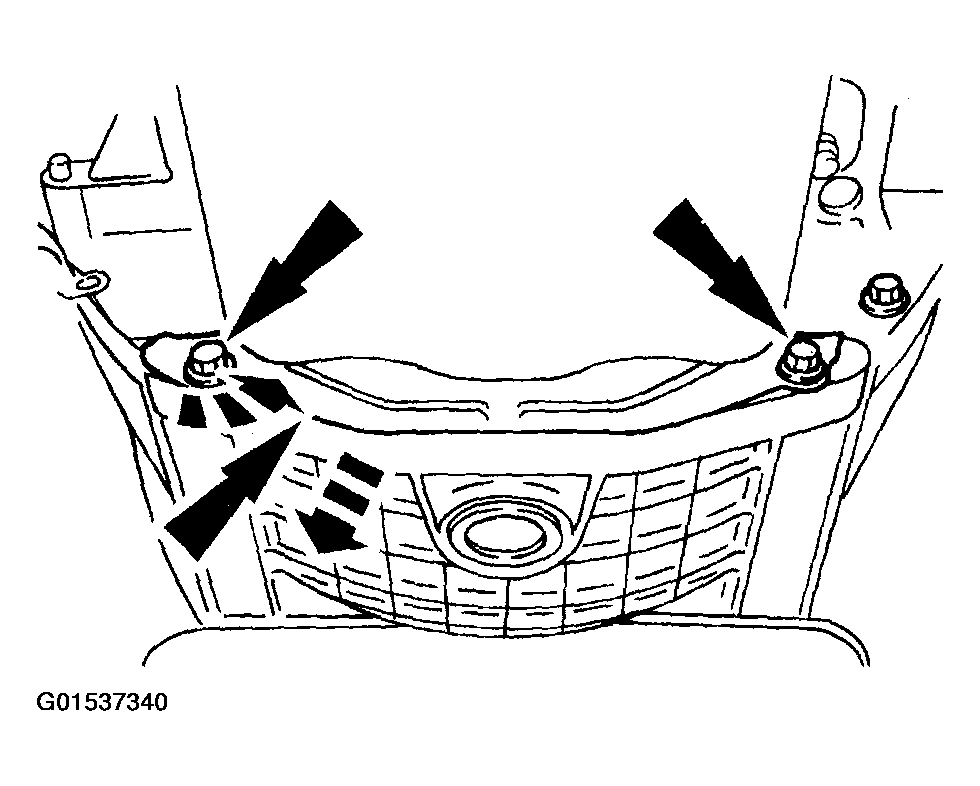

Remove the flywheel inspection plate.

Fig 10: Removing Flywheel Inspection Plate
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Using the Heavy Duty Engine Support, raise the engine to the ideal working height as shown.

Fig 11: Raising Engine To Ideal Working Height
Courtesy of FORD MOTOR CO.
Raise the vehicle.

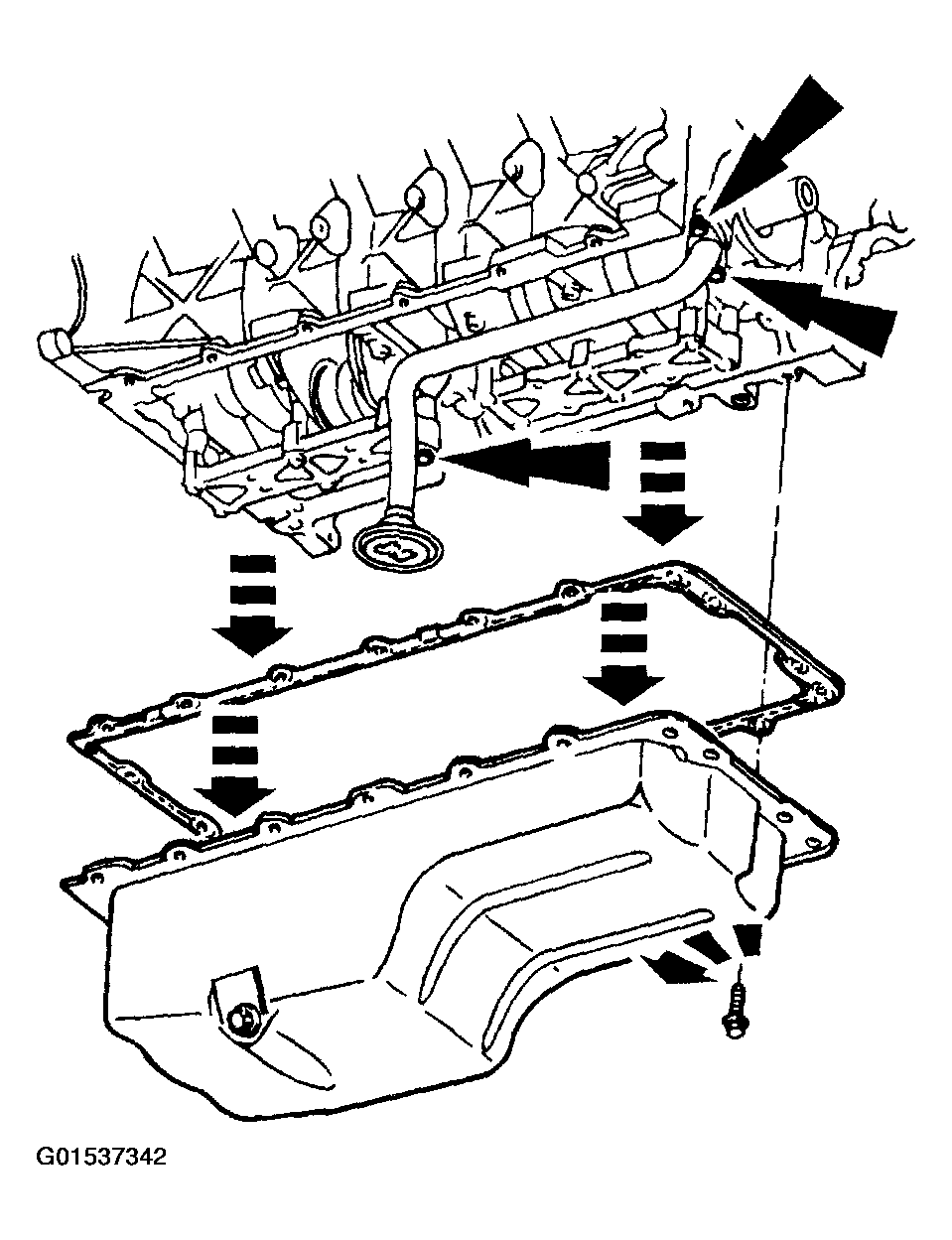

Remove the bolts and partially lower the oil pan.

Fig 12: Removing Oil Pan Bolts
Courtesy of FORD MOTOR CO.

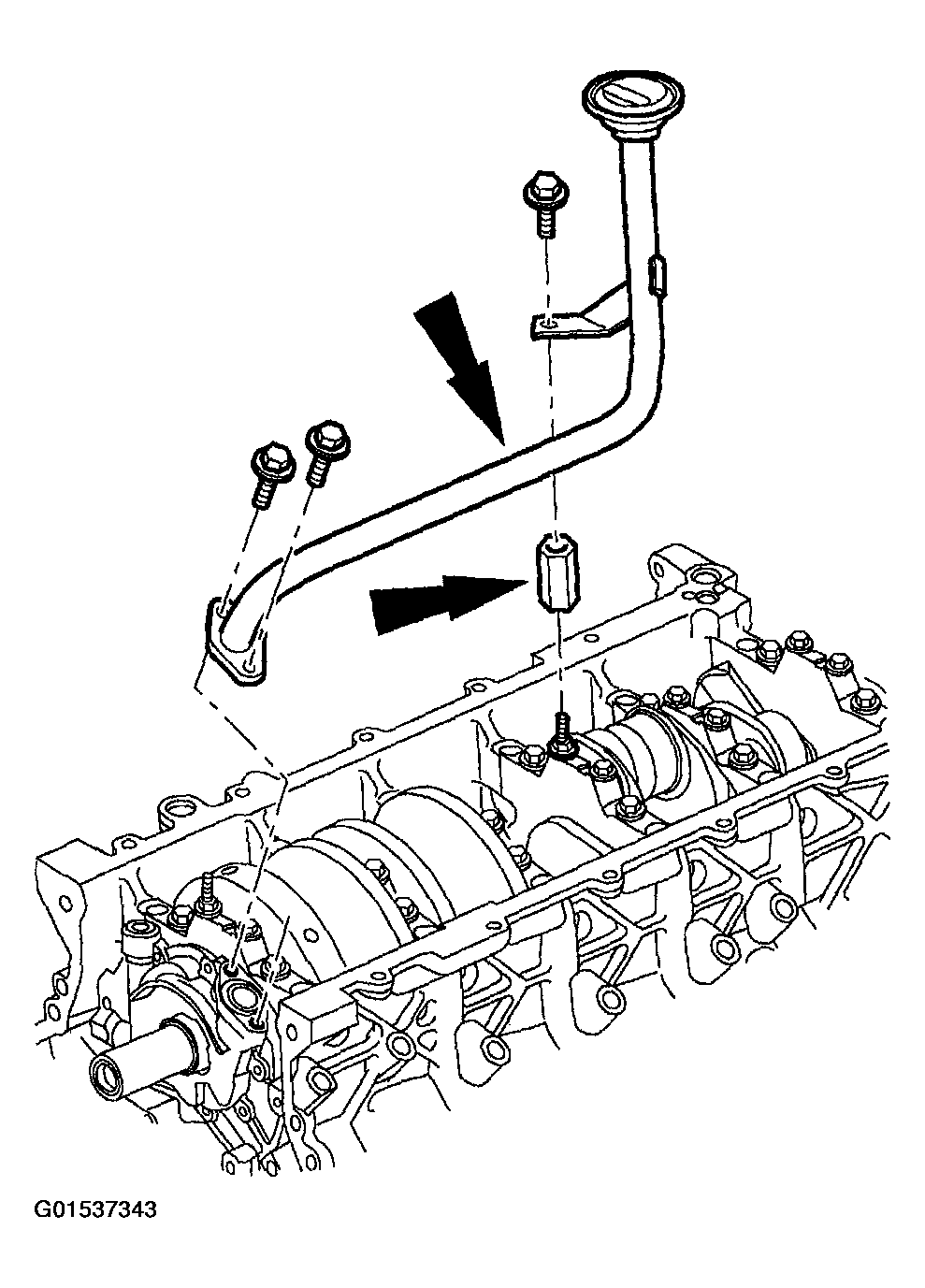

Remove the bolts retaining the oil pump screen cover and pickup tube and allow to drop into the oil pan. Also remove the tube and spacer and allow to drop into the oil pan.

Fig 13: Removing Bolts Retaining Oil Pump Screen Cover And Pickup Tube
Courtesy of FORD MOTOR CO.
Remove the oil pan and oil pan gasket from the rear of the engine.
Clean the mating surfaces and thoroughly clean the oil pan.
