Removal and Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine air cleaner and the air cleaner outlet tube.
  2. Remove the oil level indicator and the nut retaining the oil level indicator tube and bracket assembly.

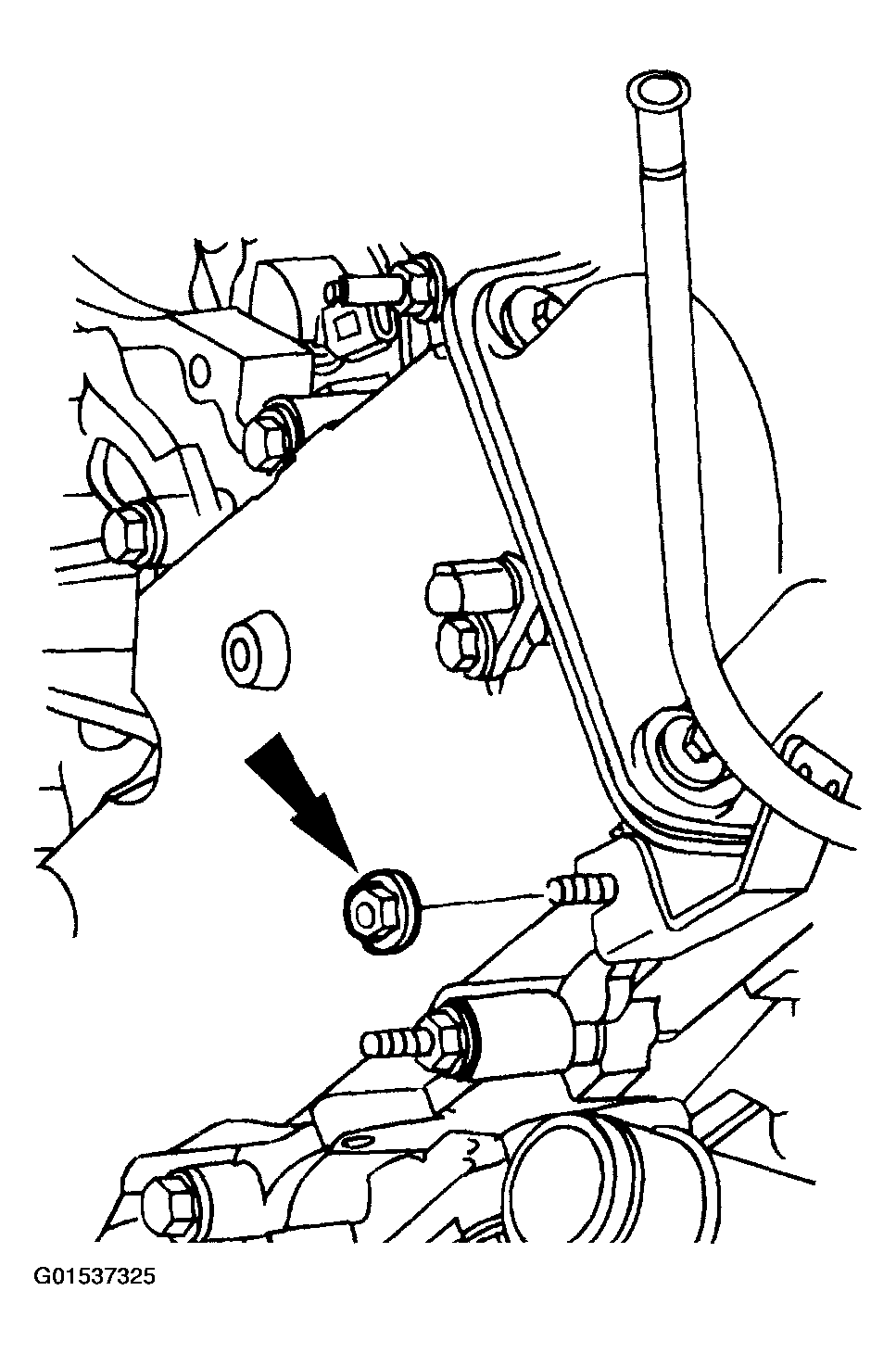

    Fig 1: Removing Nut Retaining Oil Level Indicator Tube And Bracket Assembly
    G01537325Courtesy of FORD MOTOR CO.
  3. Remove the LH exhaust manifold. For additional information, refer to EXHAUST MANIFOLD LH .
  4. Remove the bolt and the oil level indicator tube.

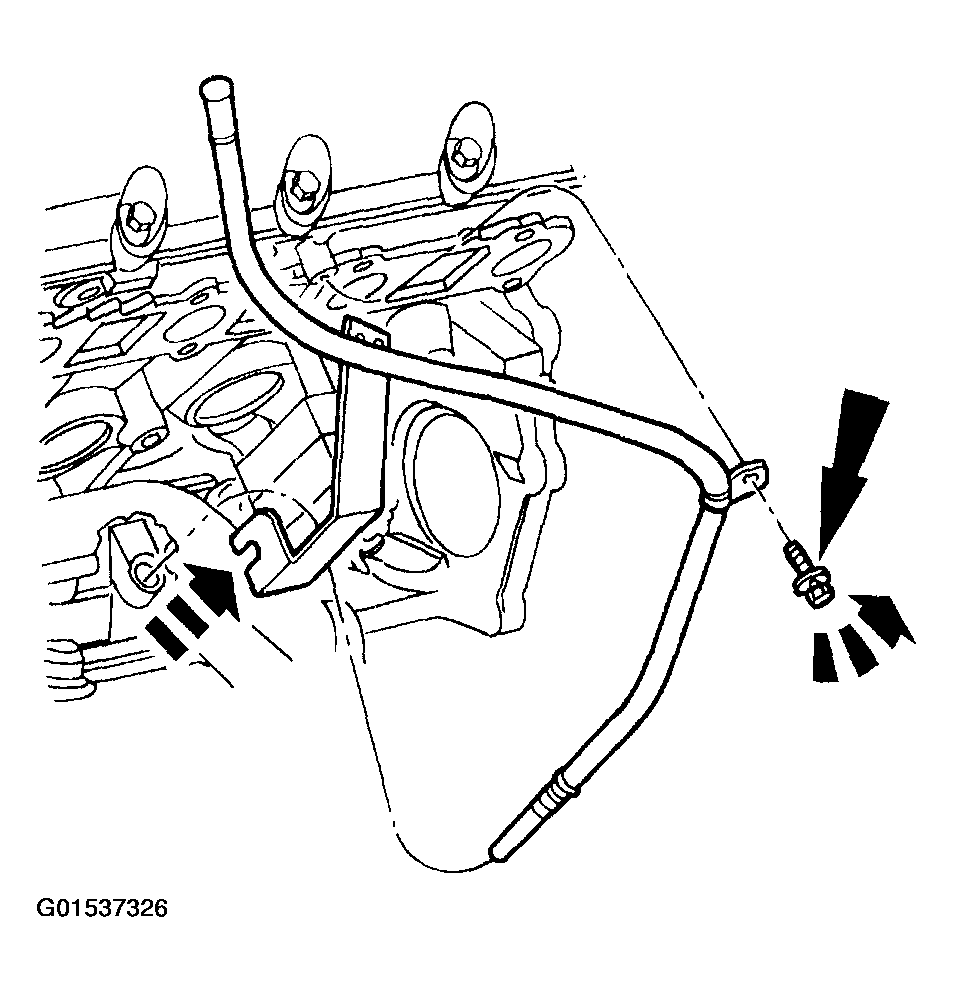

    Fig 2: Removing Oil Level Indicator Tube
    G01537326Courtesy of FORD MOTOR CO.
  5. Inspect the oil level indicator tube for damage.
  6. To install, reverse the removal procedure.
    • Install new O-ring seals and lubricate them with clean engine oil.

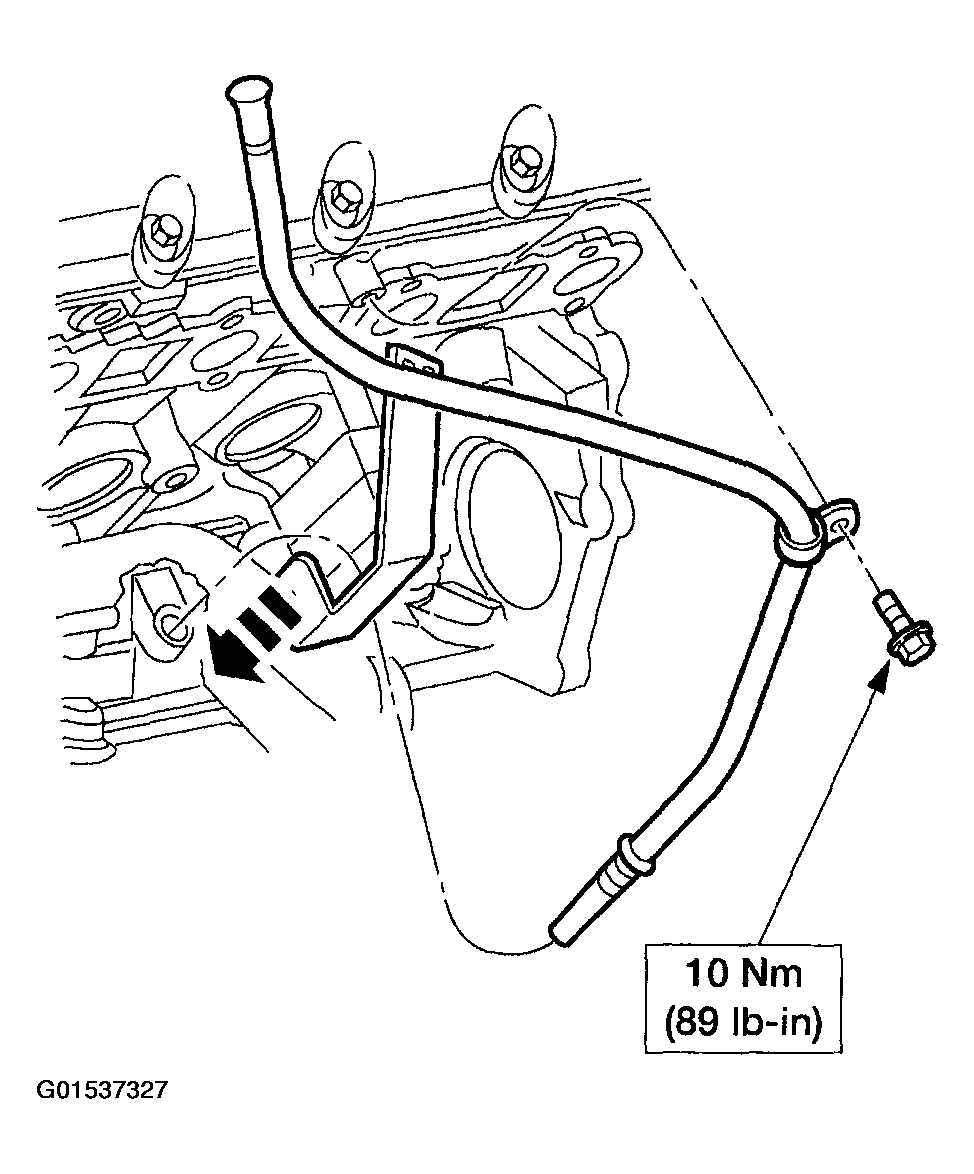

    Fig 3: Installing Oil Level Indicator Tube
    G01537327Courtesy of FORD MOTOR CO.

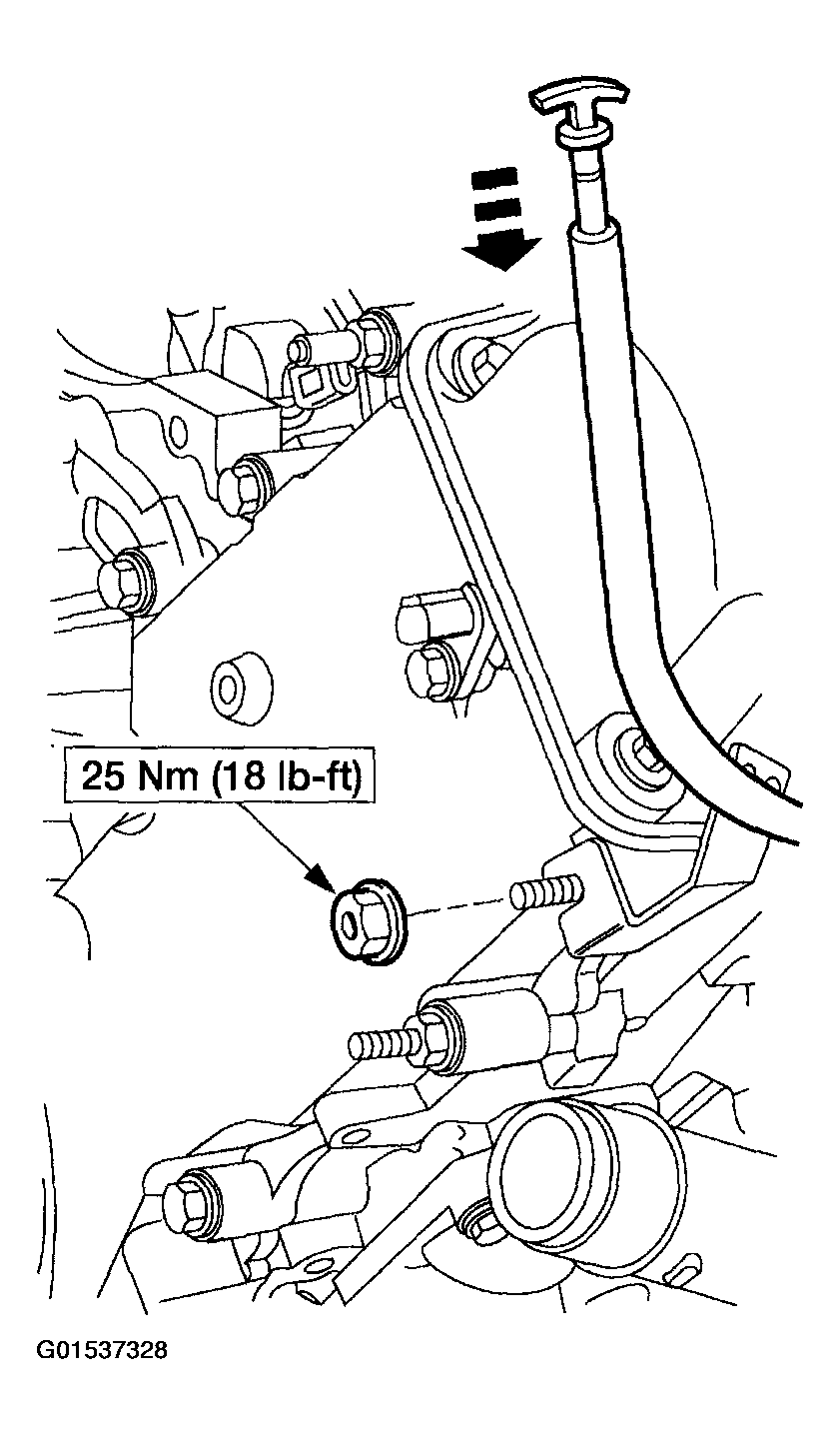

    Fig 4: Installing Nut Retaining Oil Level Indicator Tube And Bracket Assembly
    G01537328Courtesy of FORD MOTOR CO.
