Removal and Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the left engine support insulator. For additional information, refer to ENGINE SUPPORT INSULATORS .
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Drain the engine cooling system. For additional information, refer to ENGINE COOLING .
Drain the engine oil.

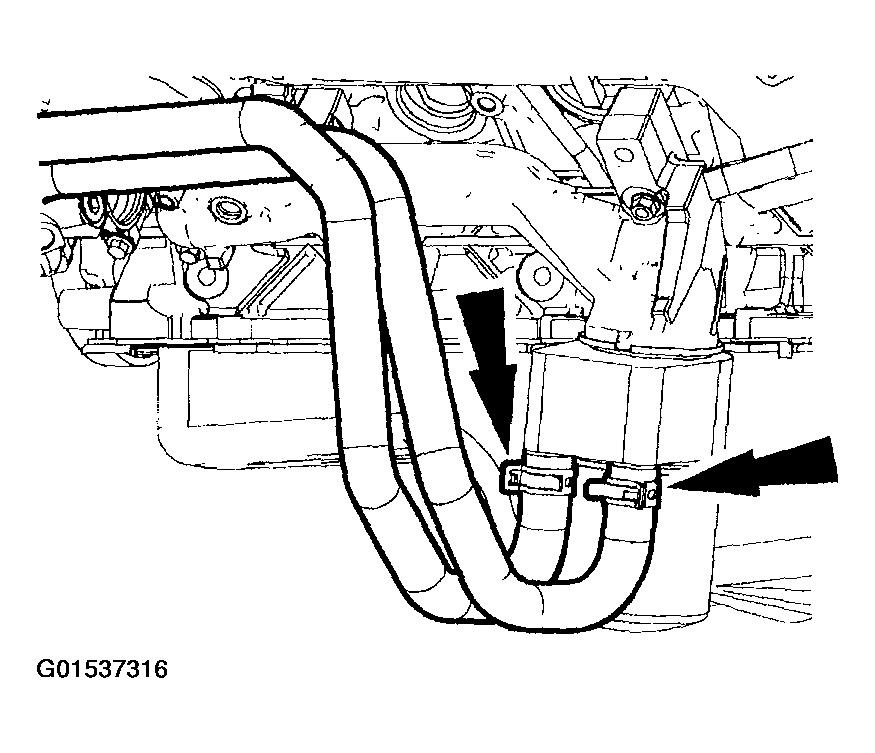

Disconnect the coolant hoses.

Fig 1: Disconnecting Coolant Hoses
Courtesy of FORD MOTOR CO.

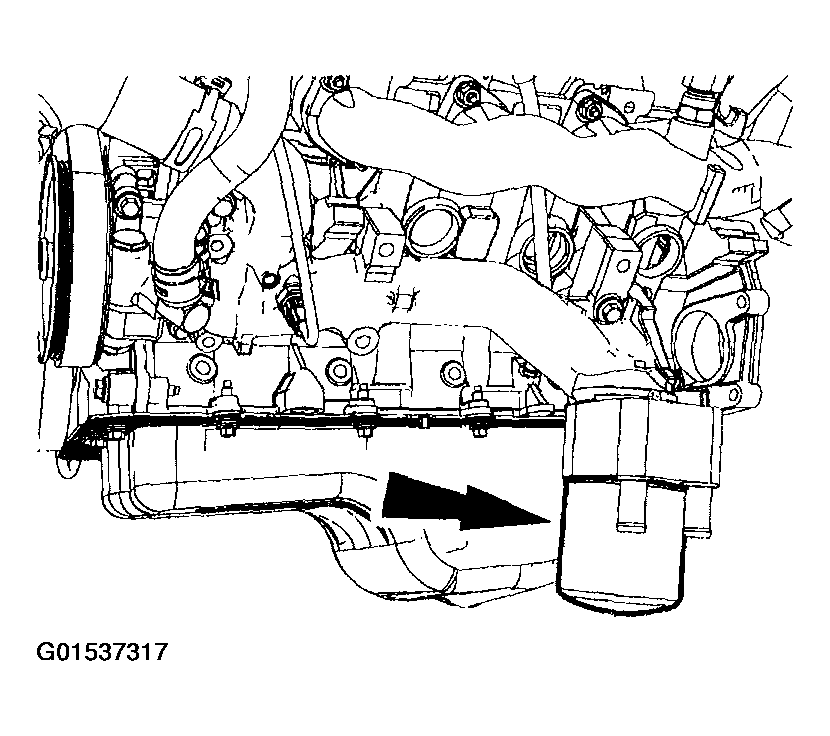

Remove the oil filter.

Fig 2: Removing Oil Filter
Courtesy of FORD MOTOR CO.

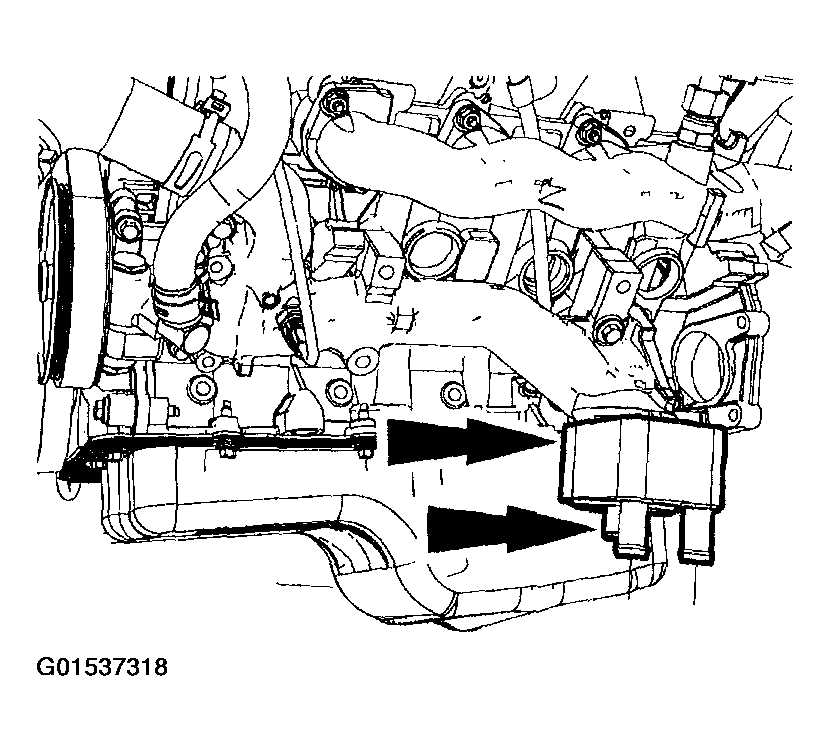

Remove the threaded insert and the oil cooler.

Fig 3: Removing Threaded Insert And Oil Cooler
Courtesy of FORD MOTOR CO.

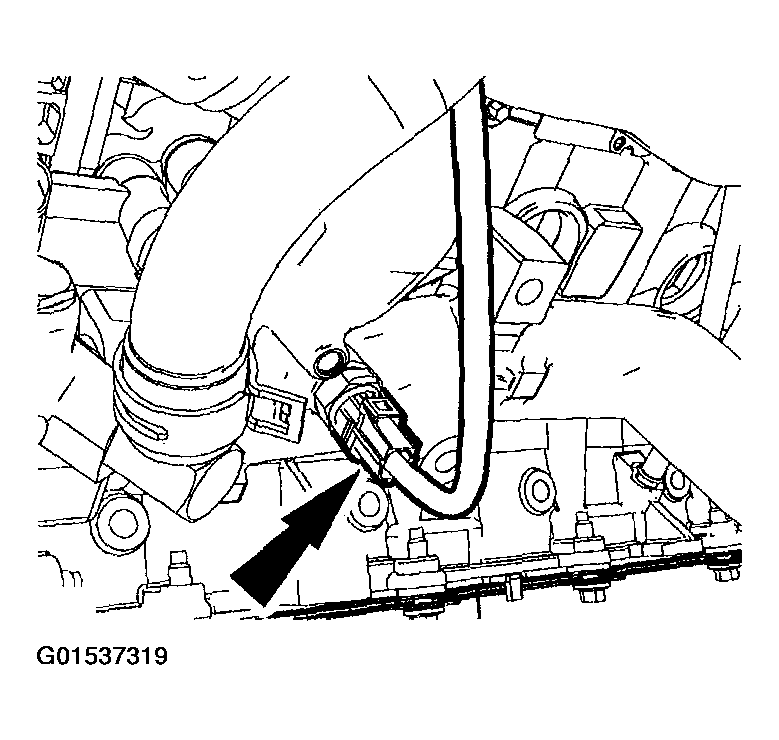

Disconnect the oil pressure switch electrical connector.

Fig 4: Disconnecting Oil Pressure Switch Electrical Connector
Courtesy of FORD MOTOR CO.

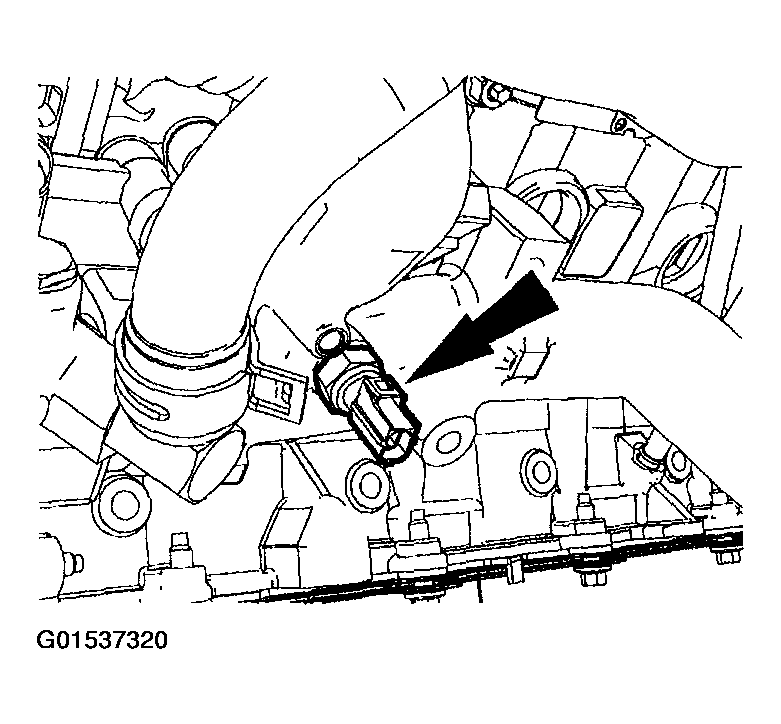

Remove the oil pressure switch.

Fig 5: Removing Oil Pressure Switch
Courtesy of FORD MOTOR CO.

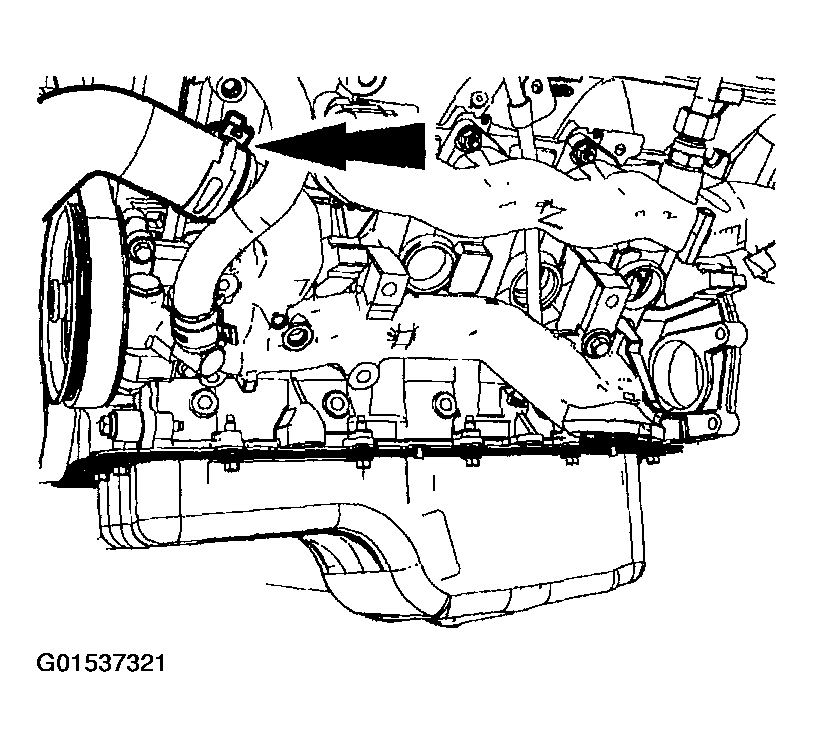

Disconnect the lower radiator hose.

Fig 6: Disconnecting Lower Radiator Hose
Courtesy of FORD MOTOR CO.

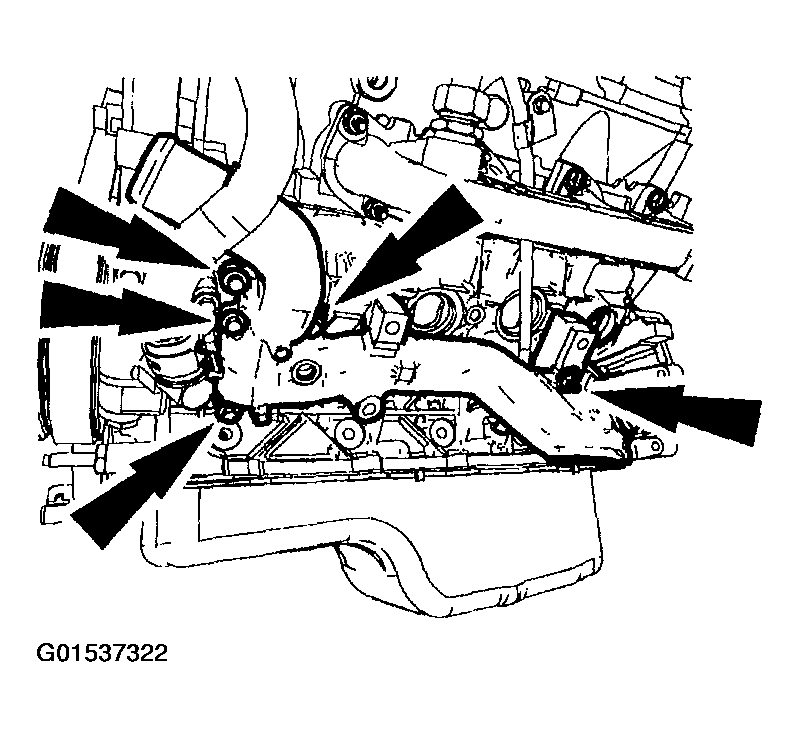

Remove the nut, the bolts, the oil filter adapter and the gasket.
- Discard the gasket.
Fig 7: Removing Oil Filter Adapter And Gasket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Install a new oil filter adapter gasket.
- Fill the engine with clean engine oil before filling the cooling system.

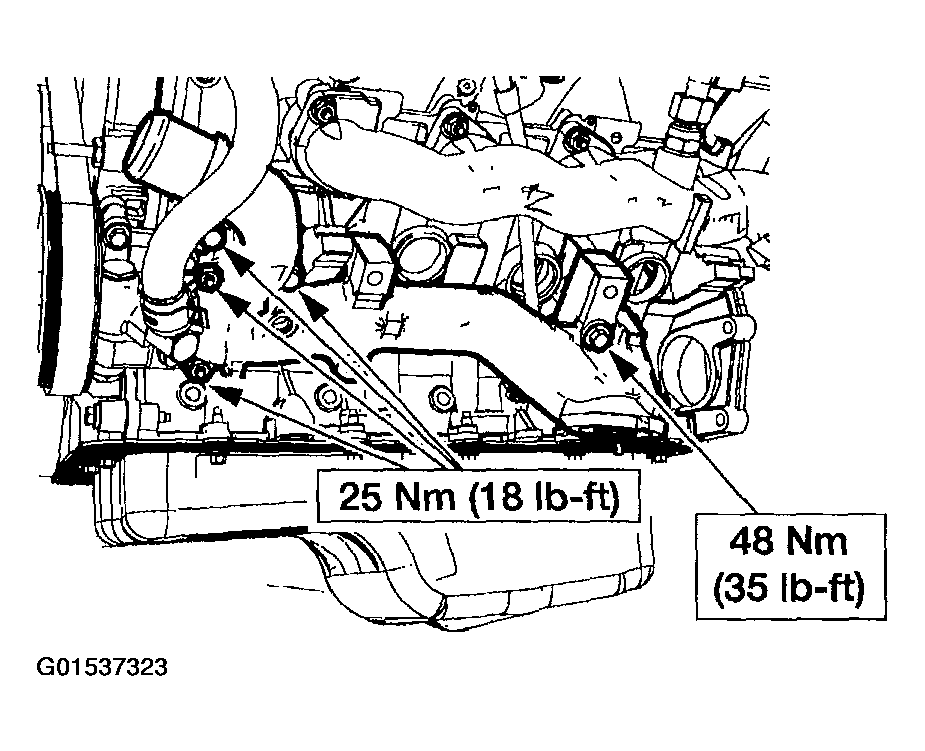

Fig 8: Installing Oil Filter Adapter And Gasket
Courtesy of FORD MOTOR CO.
