Crankshaft Rear Seal: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flexplate. For additional information, refer to FLEXPLATE .
  2. Use the special tools to remove the crankshaft rear oil slinger.
    Fig 1: Removing Crankshaft Rear Oil Slinger
    G01537353Courtesy of FORD MOTOR CO.
  3. Use the special tools to remove the crankshaft rear oil seal.

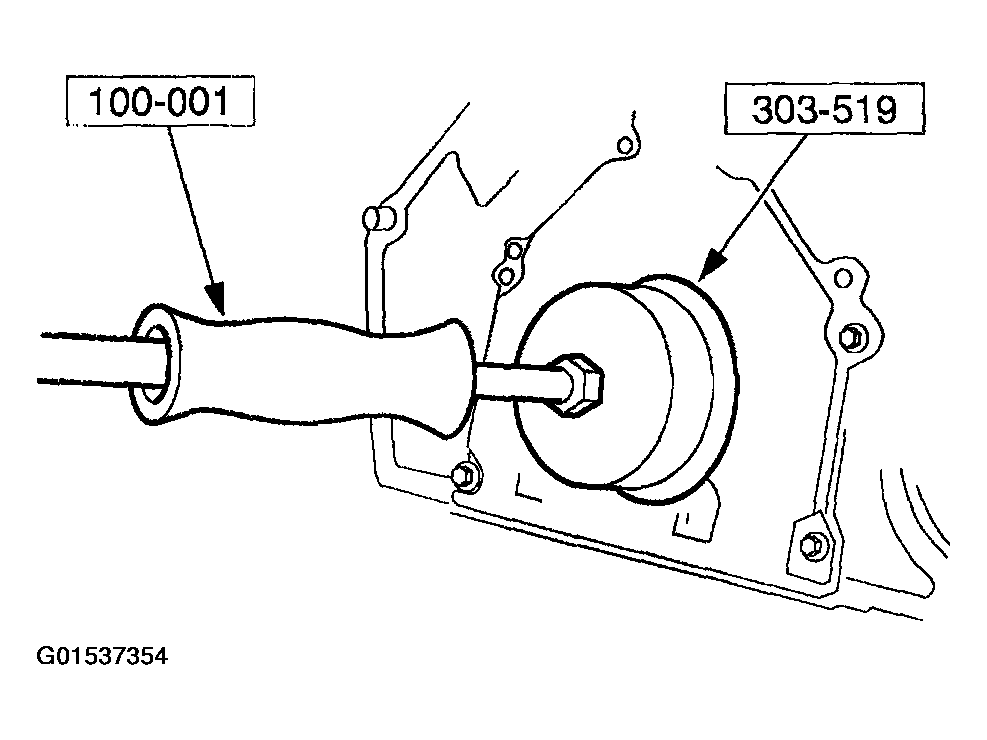

    Fig 2: Removing Crankshaft Rear Oil Seal
    G01537354Courtesy of FORD MOTOR CO.
