Crankshaft Rear Seal: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the two Crankshaft Rear Oil Seal Installers, install the crankshaft rear oil seal.

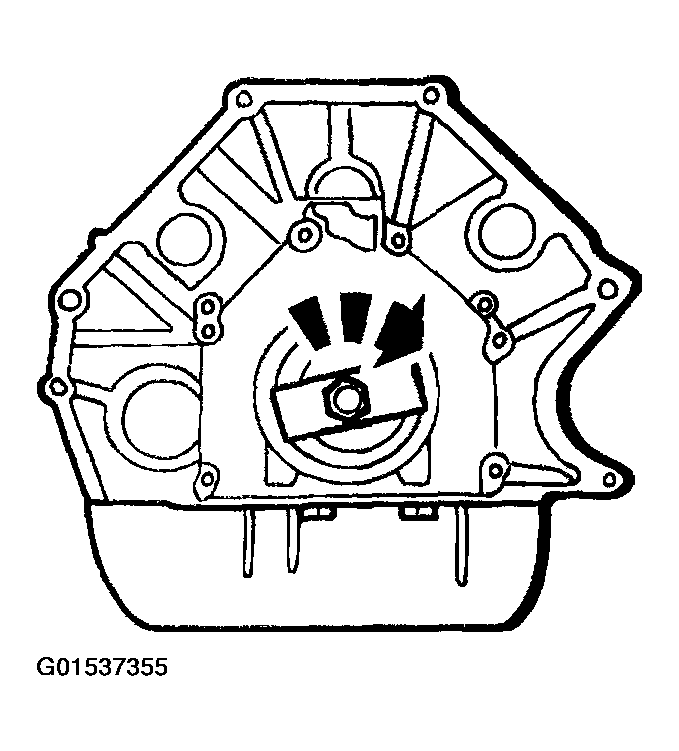

    Fig 1: Installing Crankshaft Rear Oil Seal
    G01537355Courtesy of FORD MOTOR CO.
  2. Using the two Crankshaft Rear Oil Seal Installers and the Crankshaft Rear Oil Slinger Installer, install the crankshaft rear oil slinger.
  3. Install the flexplate. For additional information, refer to FLEXPLATE .
