Crankshaft Rear Seal with Retainer Plate: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flexplate. For additional information, refer to FLEXPLATE .
  2. Use the special tools to remove the crankshaft rear oil slinger.
    Fig 1: Removing Crankshaft Rear Oil Slinger
    G01537358Courtesy of FORD MOTOR CO.

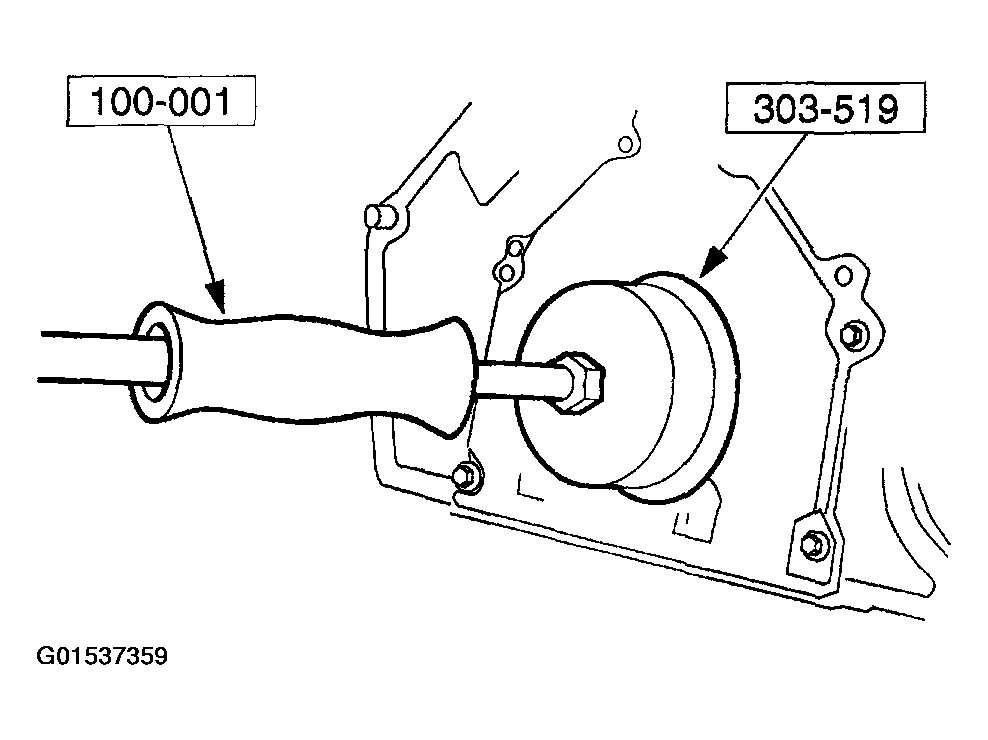

  3. Use the special tools to remove the crankshaft rear seal.
    Fig 2: Removing Crankshaft Rear Seal
    G01537359Courtesy of FORD MOTOR CO.

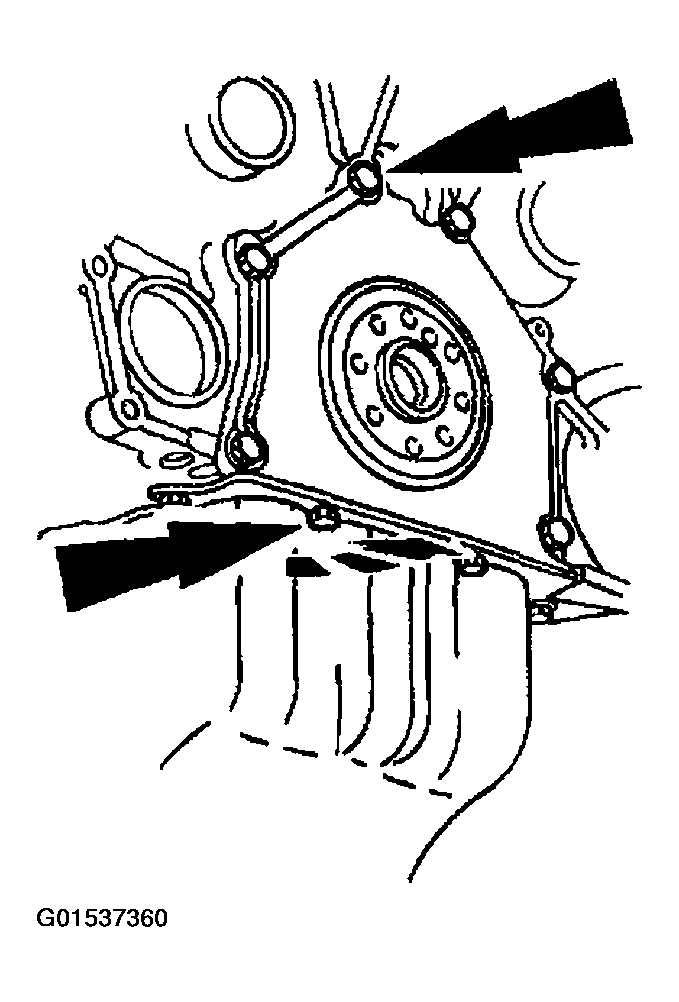

  4. Remove the bolts and the crankshaft rear seal retainer plate.
    Fig 3: Removing Crankshaft Rear Seal Retainer Plate
    G01537360Courtesy of FORD MOTOR CO.
