Crankshaft Pulley: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cooling fan and fan shroud. For additional information, refer to ENGINE COOLING .
  2. Remove the drive belt. For additional information, refer to ACCESSORY DRIVE .
  3. Raise and support the vehicle.
  4. Remove the crankshaft pulley bolt.
  5. Using the special tool, remove the crankshaft pulley.

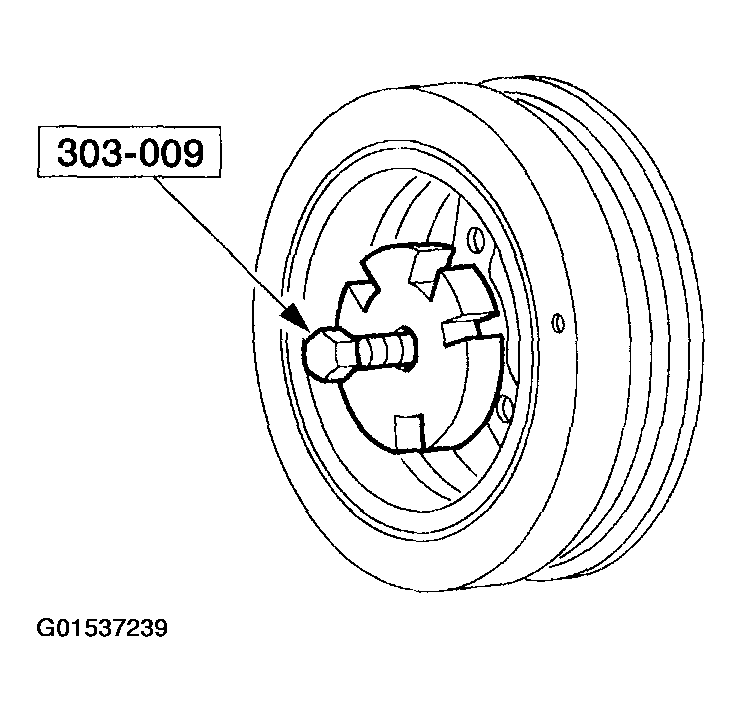

    Fig 1: Removing Crankshaft Pulley
    G01537239Courtesy of FORD MOTOR CO.
