Crankshaft Front Oil Seal: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the engine front cover and the crankshaft front oil seal inner lip with clean engine oil.
    Fig 1: Lubricating Crankshaft Front Oil Seal Inner Lip With Clean Engine Oil
    G01537246Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the crankshaft front seal into the engine front cover.

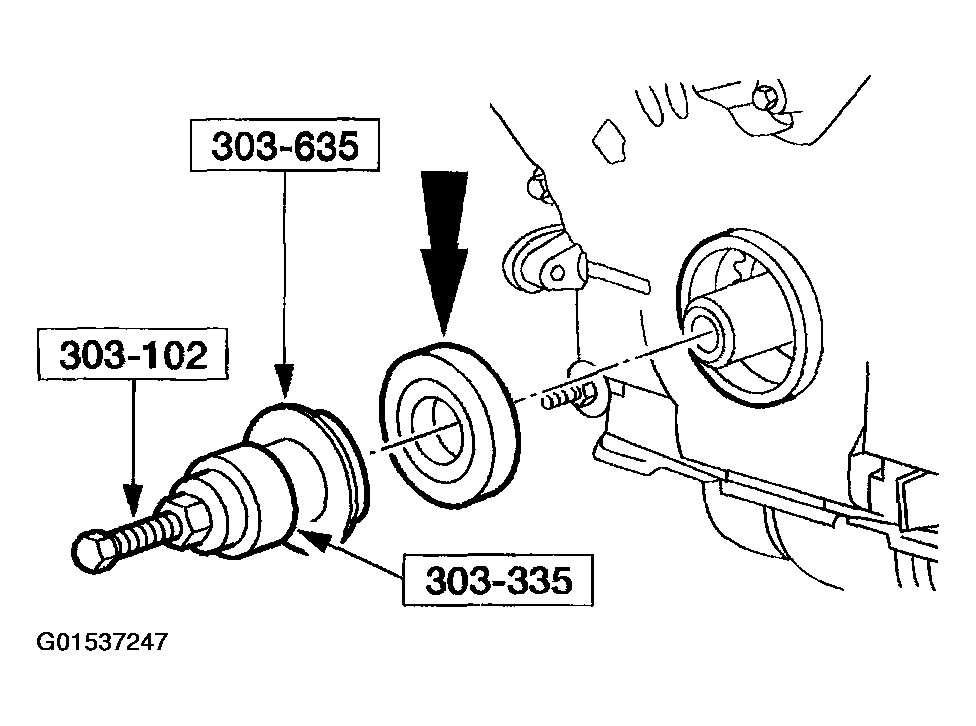

    Fig 2: Installing Crankshaft Front Seal Into Engine Front Cover
    G01537247Courtesy of FORD MOTOR CO.
  3. Install the crankshaft pulley. Refer to CRANKSHAFT FRONT OIL SEAL .
