Valve Springs: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the valve spring and the valve spring retainers.
    Fig 1: Installing Valve Spring And Valve Spring Retainers
    G01536405Courtesy of FORD MOTOR CO.
  2. Install the special tool between the valve spring coils to prevent valve stem seal damage.
    Fig 2: Installing Special Tool Between Valve Spring Coils
    G01536406Courtesy of FORD MOTOR CO.
  3. Use the special tool to compress the valve spring. Install the valve spring retainer keys.

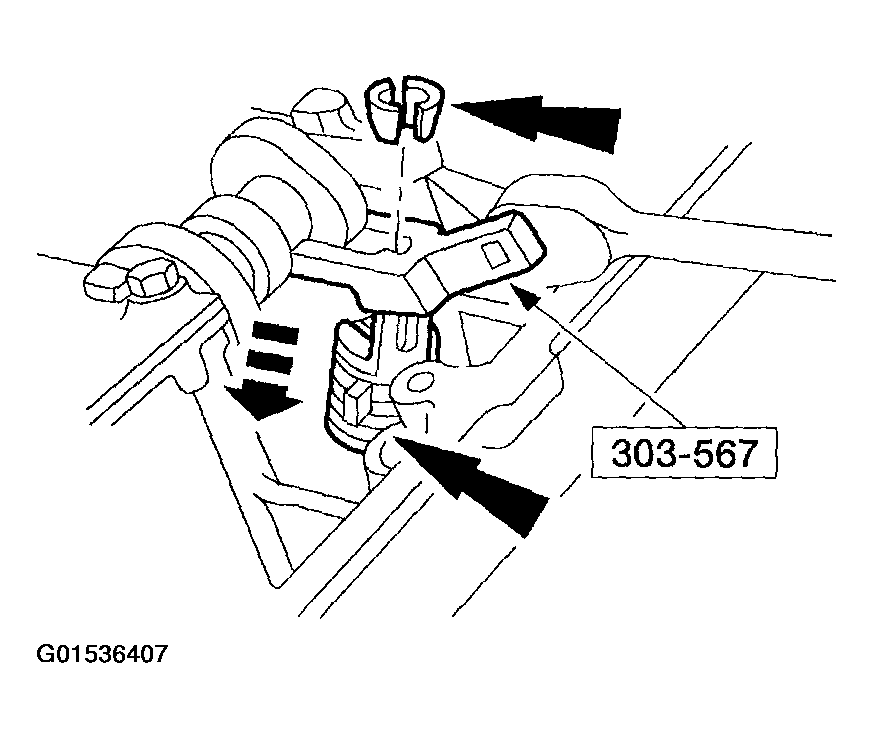

    Fig 3: Compressing Valve Spring
    G01536407Courtesy of FORD MOTOR CO.
  4. Install the camshaft roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .
  5. Install the spark plug.
