Oil Pump: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft sprocket (6306). For additional information, refer to TIMING DRIVE COMPONENTS - WINDSOR ENGINE (5.4L)  or TIMING DRIVE COMPONENTS - ROMEO ENGINE (4.6L) .
  2. Remove the oil pan (6675). For additional information, refer to OIL PAN .
    3. CAUTION: The oil pump must be primed prior to starting the engine.

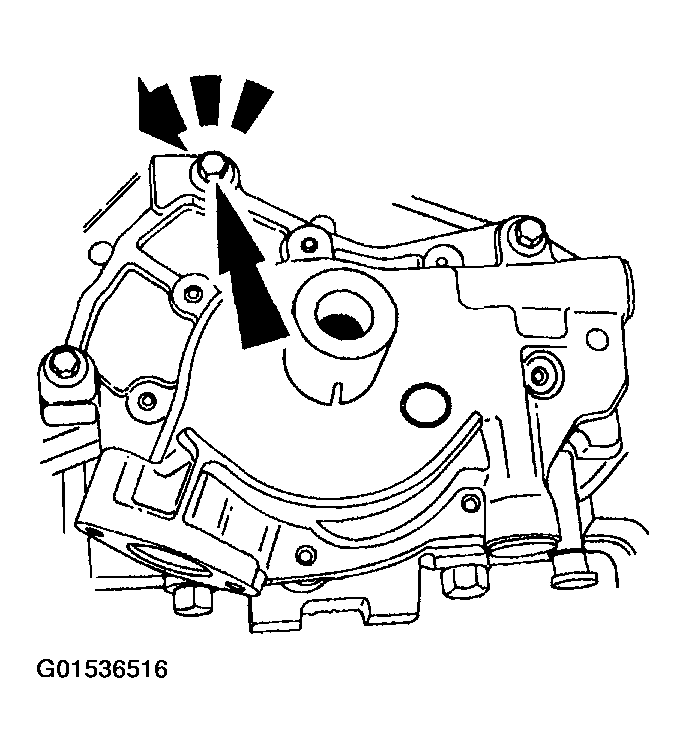

    Fig 1: Removing Bolts And Oil Pump
    G01536516Courtesy of FORD MOTOR CO.
  3. Remove the bolts and the oil pump (6600).
