Oil Level Indicator and Tube: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine air cleaner (ACL) and the air cleaner outlet pipe.
  2. Remove the LH exhaust manifold. For additional information, refer to EXHAUST MANIFOLD LH .
  3. Remove the oil level indicator and the nut retaining the oil level indicator tube and bracket assembly.

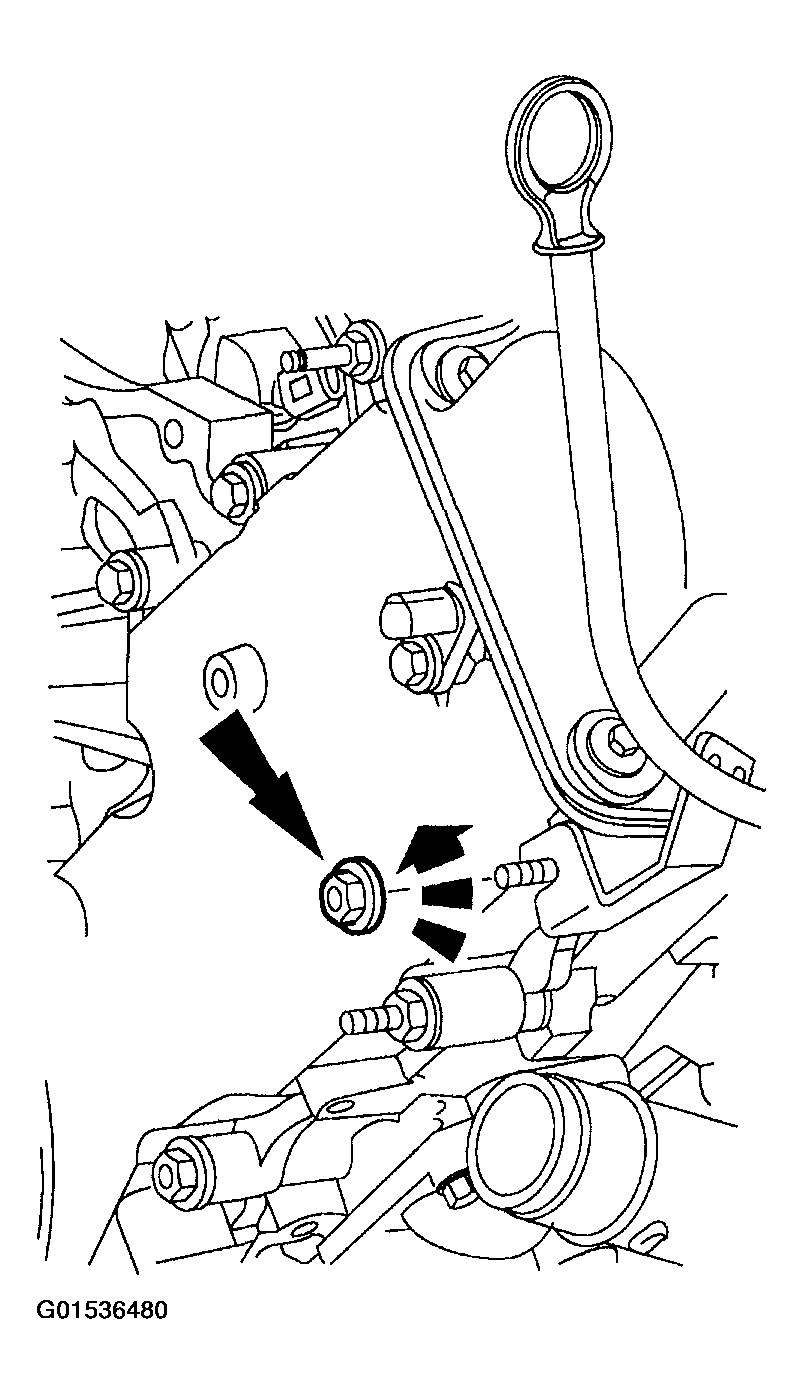

    Fig 1: Removing Oil Level Indicator And Nut
    G01536480Courtesy of FORD MOTOR CO.
  4. Remove the bolt.

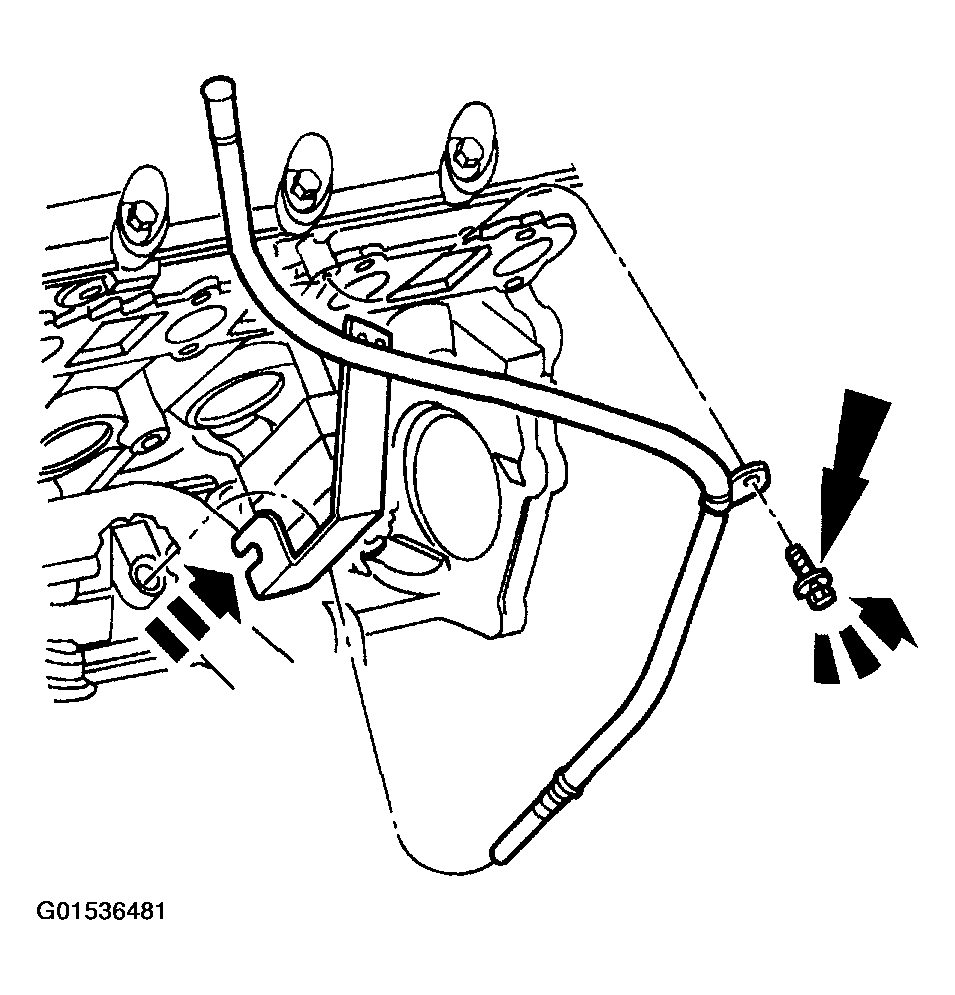

    Fig 2: Removing Oil Level Indicator Tube Bolt
    G01536481Courtesy of FORD MOTOR CO.
  5. Inspect the oil level indicator tube for damage.
