Oil Level Indicator and Tube: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the new O-ring seals with clean engine oil.
  2. Insert the oil level indicator tube and install the bolt.

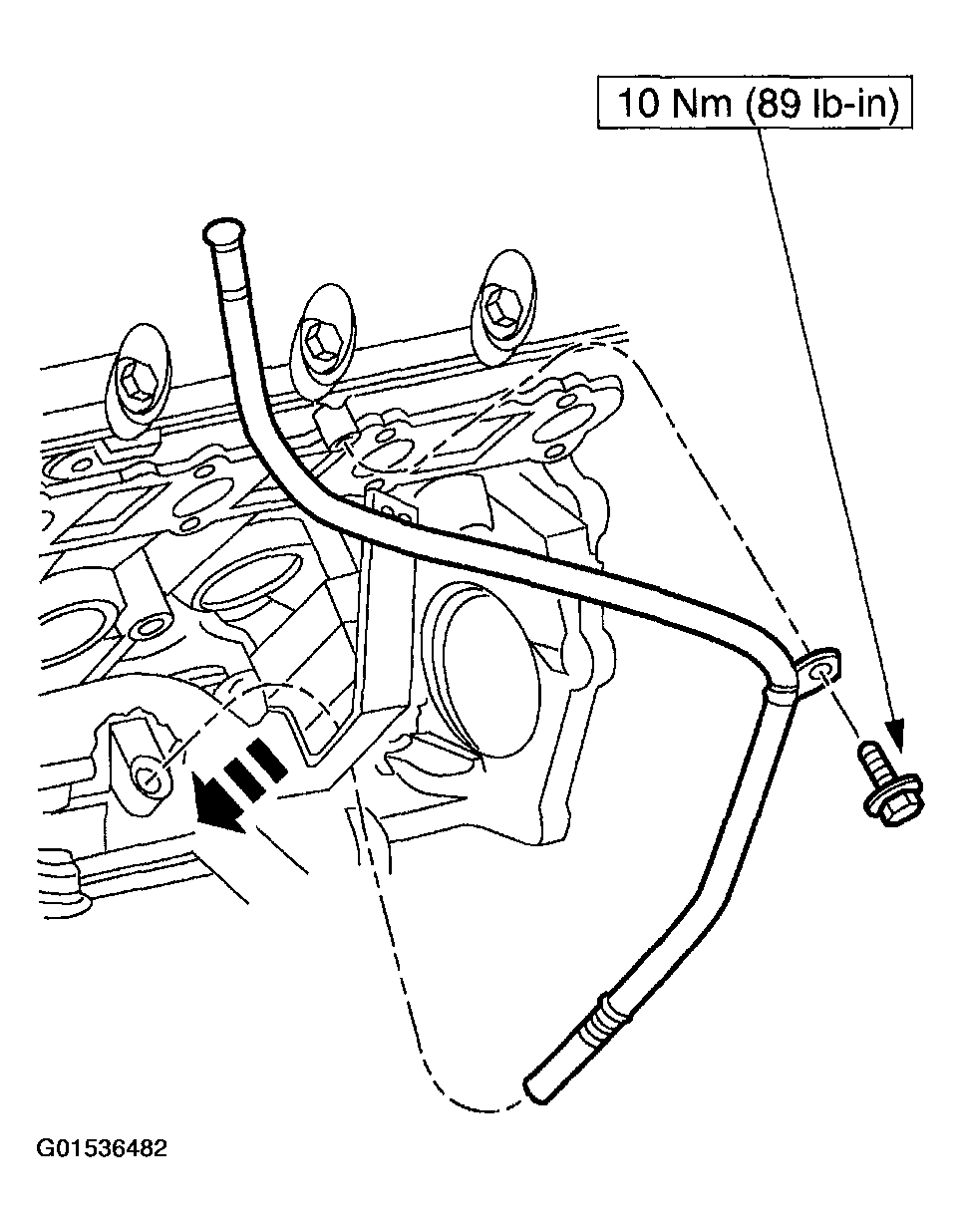

    Fig 1: Inserting Oil Level Indicator Tube And Installing Bolt
    G01536482Courtesy of FORD MOTOR CO.
  3. Install the nut and insert the oil level indicator.

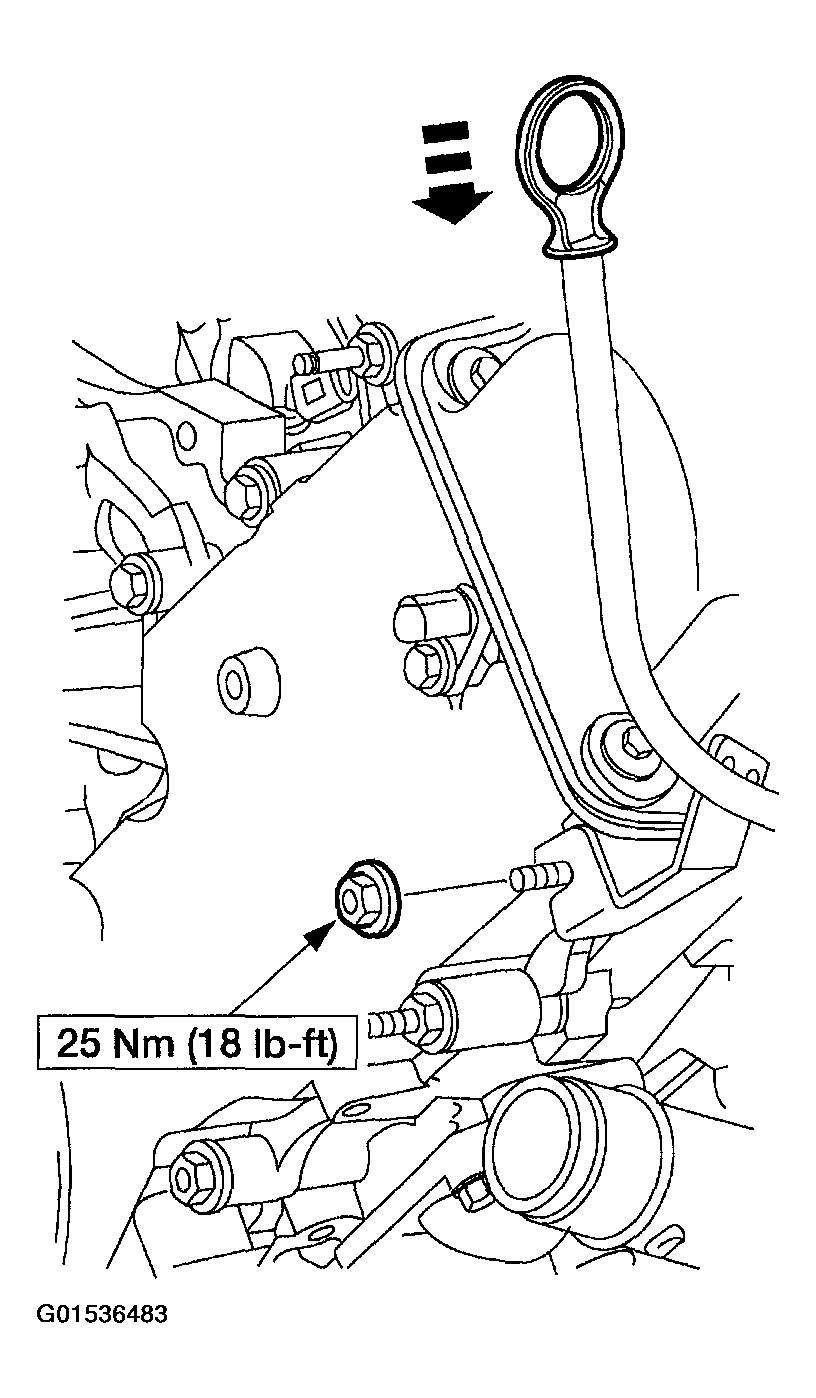

    Fig 2: Inserting Oil Level Indicator
    G01536483Courtesy of FORD MOTOR CO.
  4. Install the LH exhaust manifold. For additional information, refer to EXHAUST MANIFOLD LH .
  5. Install the ACL outlet pipe and the ACL.
