Oil Cooler: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position on a hoist.
Drain the engine cooling system. For additional information, refer to ENGINE COOLING .
Drain the engine oil.

Fig 1: Identifying Drain Plug
Courtesy of FORD MOTOR CO.
Remove the left engine support insulator. For additional information, refer to ENGINE SUPPORT INSULATORS .
Disconnect the coolant hoses.

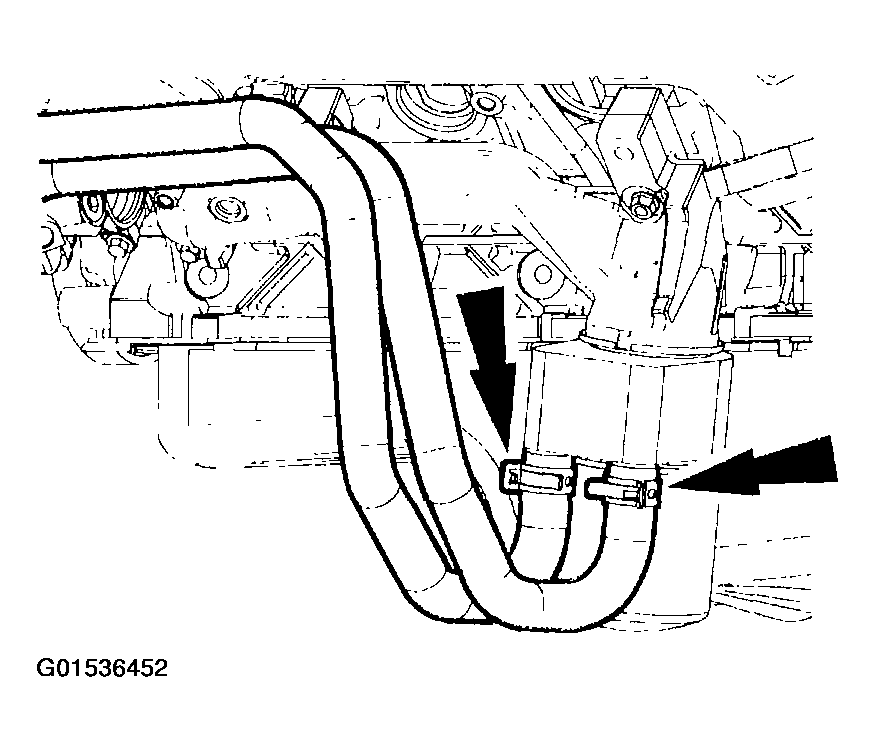

Fig 2: Disconnecting Coolant Hoses
Courtesy of FORD MOTOR CO.
Remove the oil filter.

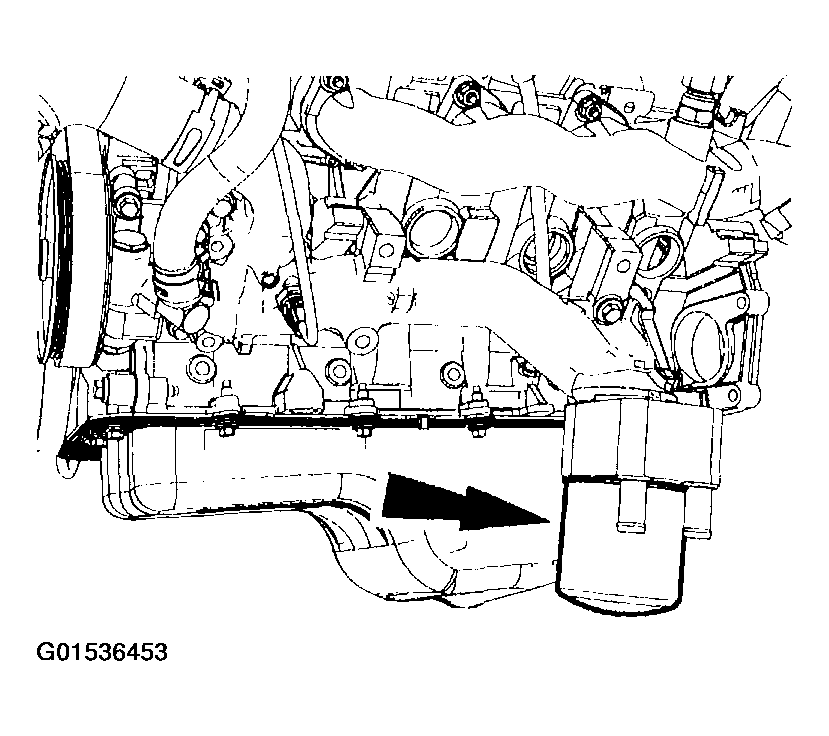

Fig 3: Removing Oil Filter
Courtesy of FORD MOTOR CO.
Remove the threaded insert and the oil cooler.

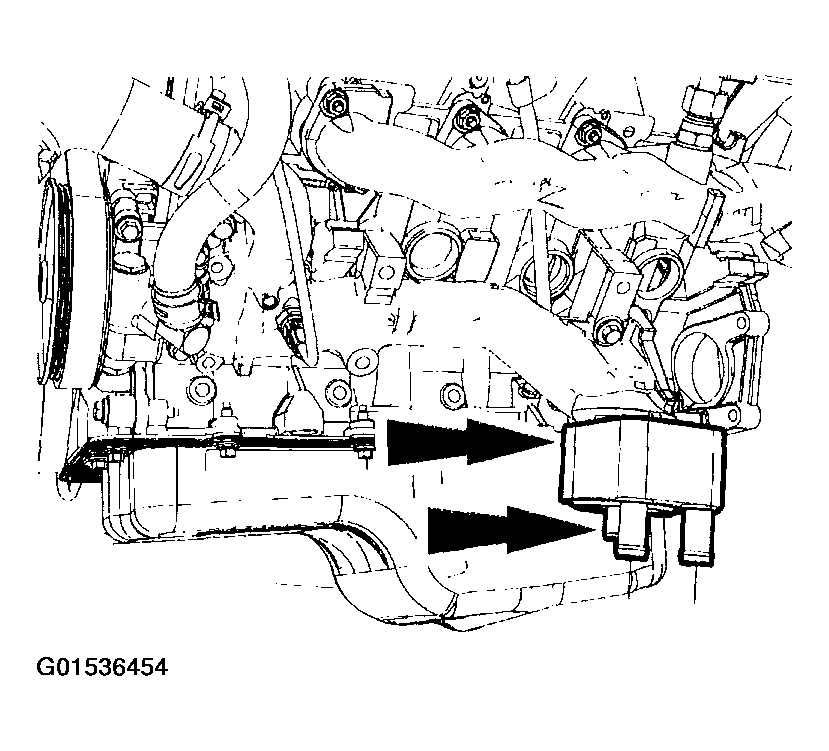

Fig 4: Removing Oil Cooler
Courtesy of FORD MOTOR CO.
Clean and inspect the oil cooler.
- Plug the coolant connections.
- Flush the oil passages with parts cleaner. If metal particles are present in the oil cooler, install a new cooler.
