Hydraulic Lash Adjuster: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .
    2. NOTE: The valve tappets are positional. Mark each valve tappet for installation in its original location.

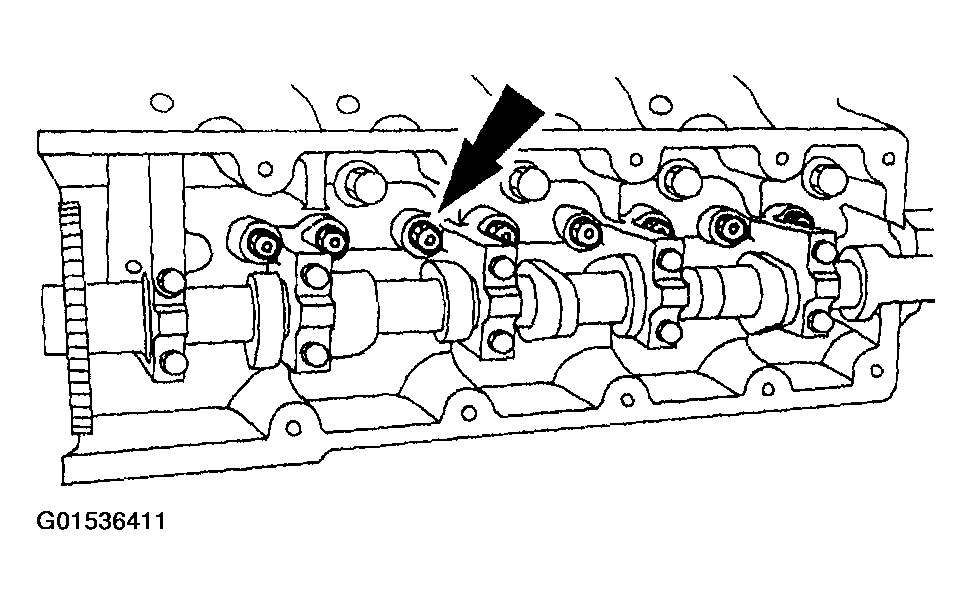

    Fig 1: Removing Valve Tappets
    G01536411Courtesy of FORD MOTOR CO.
  2. Remove the valve tappets (6500).
