In-Vehicle Repair: Flexplate: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    ALL ENGINES

  1. Remove the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION-4R100 or AUTOMATIC TRANSAXLE/TRANSMISSION-4R70W .

    2. ROMEO ENGINE (4.6L)

  2. Remove the bolts and the flexplate.

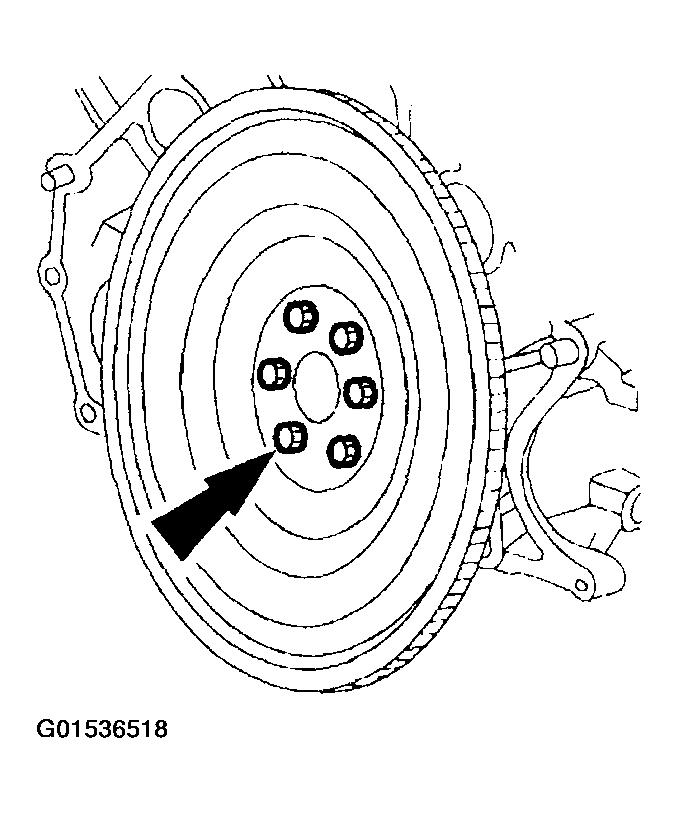

    Fig 1: Removing Flexplate Bolts (Romeo Engine 4.6L)
    G01536518Courtesy of FORD MOTOR CO.

    3. WINDSOR ENGINE (5.4L)

  3. Remove the bolts and the flexplate.

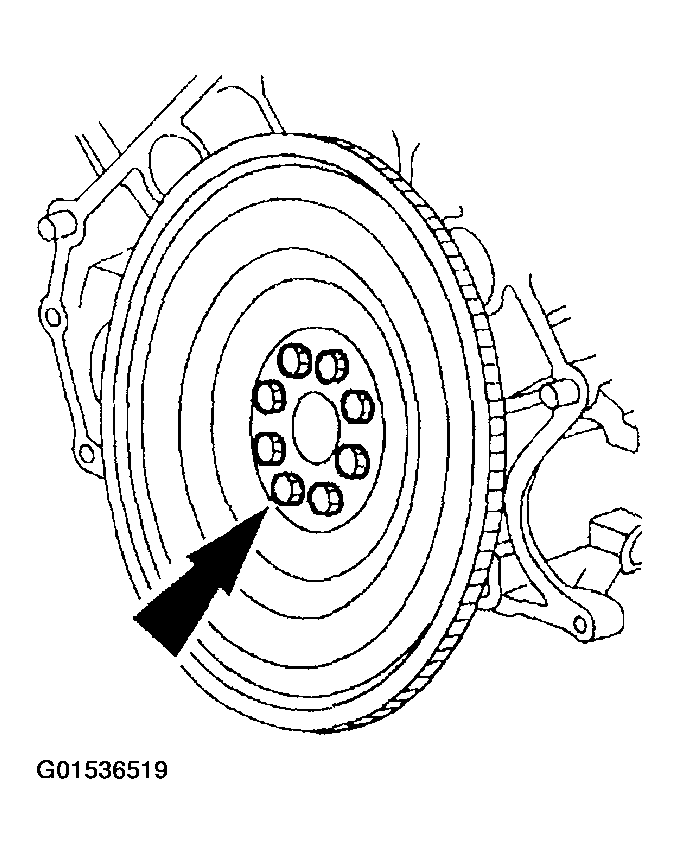

    Fig 2: Removing Flexplate Bolts (Windsor Engine 5.4L)
    G01536519Courtesy of FORD MOTOR CO.
