Crankshaft Rear Seal with Retainer Plate: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. For additional information, refer to OIL PAN .
  2. Remove the flexplate. For additional information, refer to FLEXPLATE .
  3. Use the special tools to remove the crankshaft rear oil seal slinger.
    Fig 1: Removing Crankshaft Rear Oil Seal Slinger
    G01536530Courtesy of FORD MOTOR CO.
  4. Use the special tools to remove the crankshaft rear seal.
    Fig 2: Removing Crankshaft Rear Seal
    G01536531Courtesy of FORD MOTOR CO.

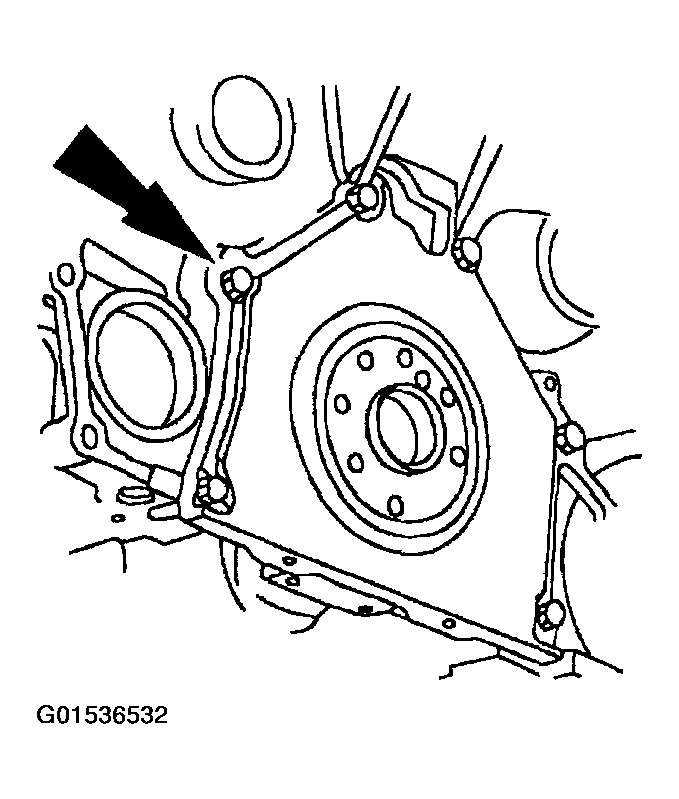

  5. Remove the six bolts and the crankcase rear seal retainer.
    Fig 3: Removing Crankcase Rear Seal Retainer
    G01536532Courtesy of FORD MOTOR CO.
