Camshaft Roller Follower: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the camshaft roller followers.
    1. Install the special tool.
    2. Compress the valve spring.
    3. Install the camshaft roller followers.

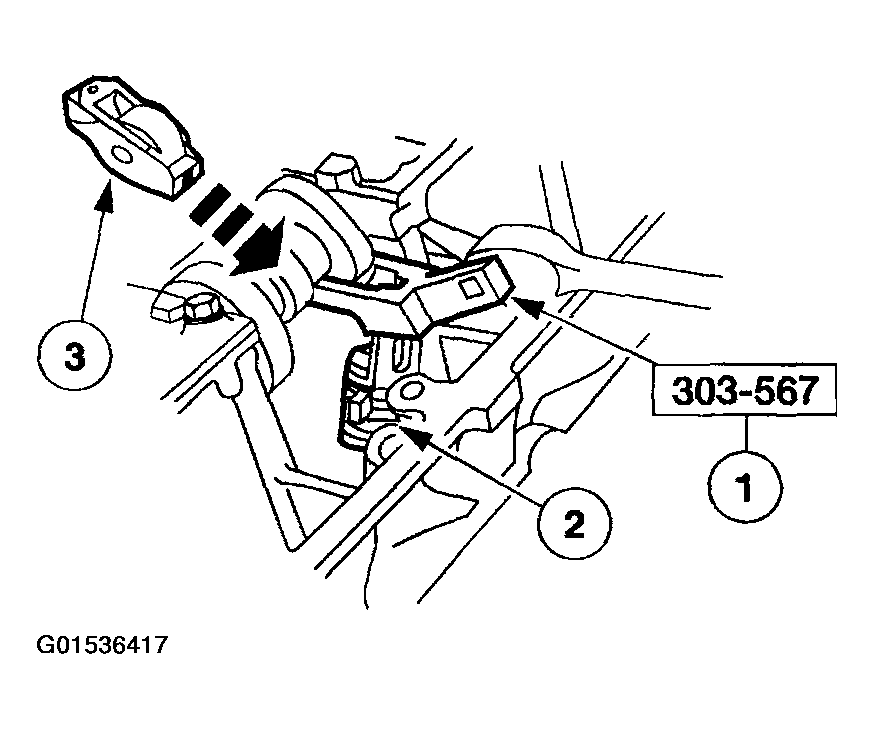

    Fig 1: Installing Camshaft Roller
    G01536417Courtesy of FORD MOTOR CO.
  2. Remove the special tool.
    Fig 2: Removing Special Tool
    G01536418Courtesy of FORD MOTOR CO.
  3. Install the valve covers. For additional information, refer to VALVE COVER LH , VALVE COVER RH - 4.6L  or VALVE COVER RH - 5.4L .
